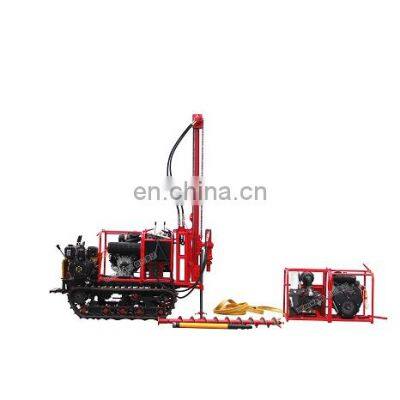

Pneumatic Mountainous Area Seismic Shot Hole Man Portable Drilling Rig
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable Rock Drilling Rig Machine With Screw-type Air Compressor for SaleNegotiableMOQ: 1 -
Low Price Underground Deep Rock Borehole Drilling Machine /water Well Rotary Drilling Rig for SaleNegotiableMOQ: 1
-
Best Core Drilling Rig 50m Depth for Geological Survey and Hard RockNegotiableMOQ: 1
-
HWL30Z Small Crawler Pneumatic Drill Rig for Mountain ConstructionNegotiableMOQ: 1
-
HW260 Mobile Track Water Drill Rig Machine Land Mobile Crawler Drilling RigNegotiableMOQ: 1
Product description
Crawler Pneumatic Rock Drilling Rig Description
HW-S30 Hydraulic mountain drill rig is a series of products developed by the company with independent intellectual property rights.
Mountain drilling rig are widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering, etc.
Mountain drilling rig are widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering, etc.
MAIN FEATURES:
1.Designed in strict accordance with the requirements of general industrial design standards, Product Parts, Module unit versatility, interchangeable.
2.Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.
3.Variable pump used in Hydraulic station,So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.
4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.
2.Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.
3.Variable pump used in Hydraulic station,So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.
4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.
Specification
Model |
HW-S30 |
||
Drilling depth |
30m |
||
Drilling method |
pneumatic hammer drilling |
||
Screwdrilling and mud drilling(alternative) |
|||
Drilling diameter |
pneumatic hammer drilling |
rock70-90mm,soil75-95mm |
|
75-90mm |
|||
drill rod(Dia*Length) |
pneumatic hammer drilling |
Φ 60×1500mm |
|
Power head |
Torque |
800-900 N.m |
|
Drilling speed |
0-135 r/min |
||
Drilling pressuriza tion and lifting |
Feed pressure |
5500-6000 N |
|
Lifting power |
12-16 Kn |
||
Max lifting speed |
0.71-0.81 m/s |
||
Main engine power/speed |
26kw /3600 rpm |
||
hydraulic system |
Flow |
0-60 L/min |
|
Working pressure |
20 Mpa |
||

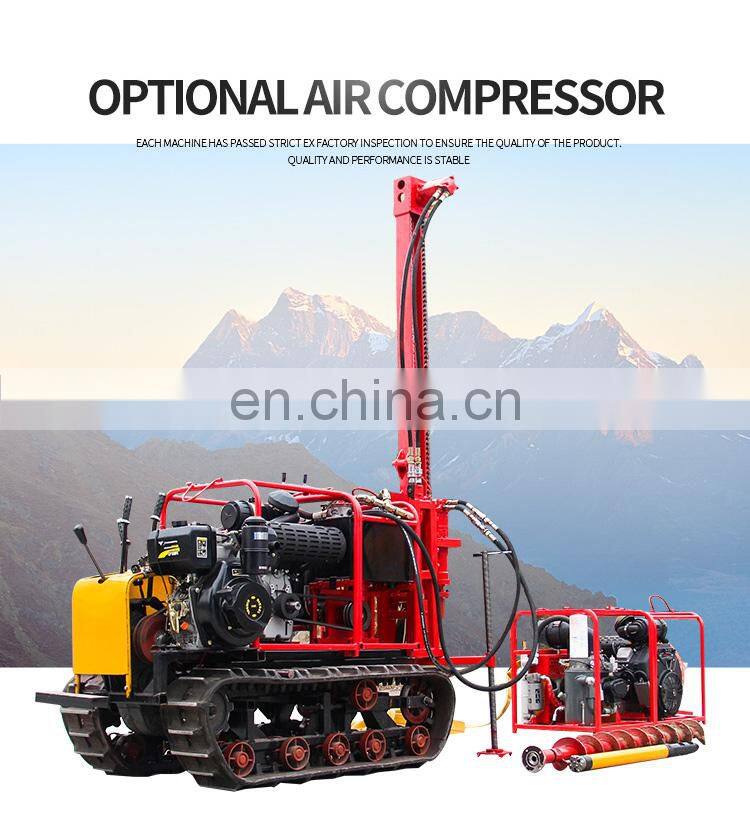

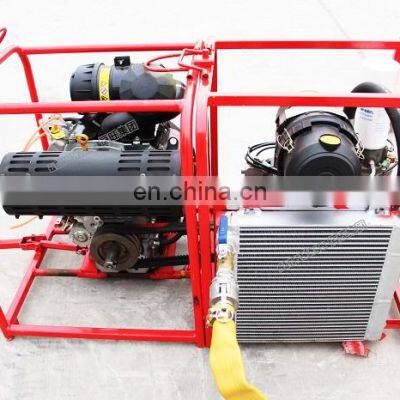

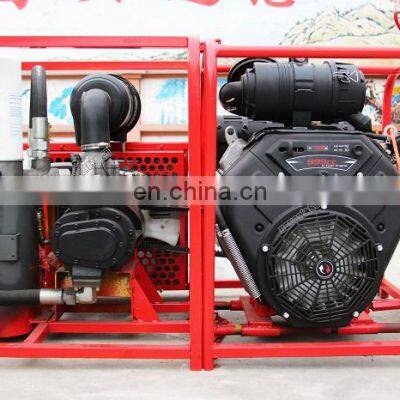

air compressor |
Type/Quantity |
Piston/1 unit Screw |
|
Flow |
3.5 m3/min 3.8m3/min |
||
Pressure |
0.8 Mpa |
||
Engine power/speed |
26 kw /3600 rpm |
||
Product Details

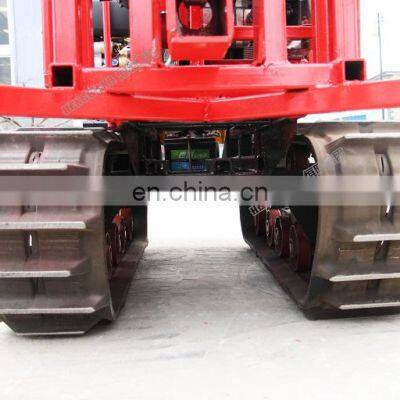

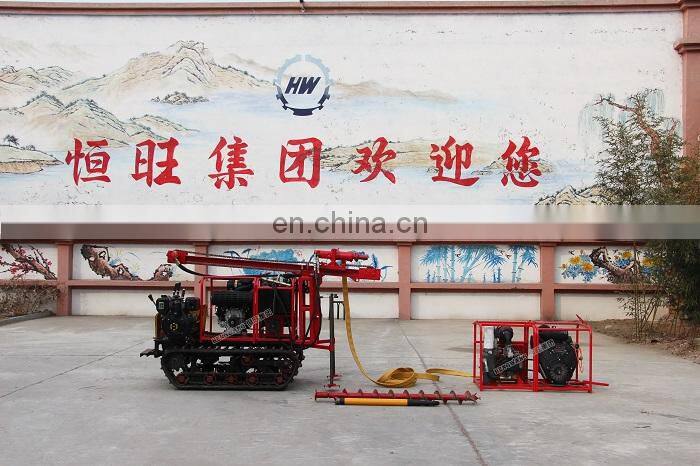

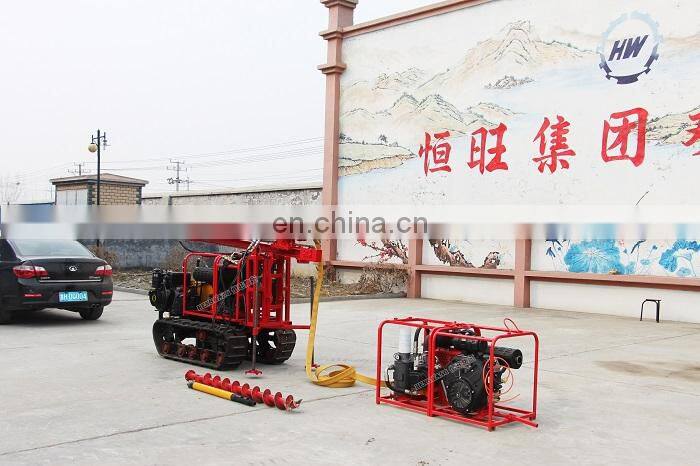

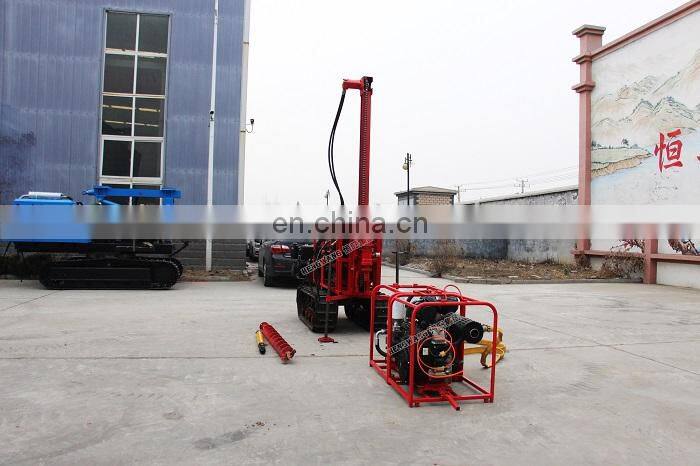

Crawler Pneumatic Rock Drilling Rig Detail Photos：
