Hengwang HW75 High Efficiency Hydraulic Wheel Excavator For Sale In Malaysia HW40 HW50 HW60 HW75
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hengwang HW80L China Brand New Hydraulic Wheel Excavator Manufacturer Cheap 8ton Wheel Excavator 80 For SaleNegotiableMOQ: 1 -
Hengwang HW75 Construction Machinery Parts Small Excavators Wheel Excavato With Attachments Rock Drill AugerNegotiableMOQ: 1
-
Hengwang HW90 Construction Machinery Parts 9 Ton Hydraulic Wheel Excavator Drilling Attachment For Deep WheelNegotiableMOQ: 1
-
Hengwang HW90 9 Ton Four Wheel Drive Excavator New Hydraulic Wheel Excavator Machine Mini Wheel Excavator For SaleNegotiableMOQ: 1
-
Hengwang HW90 In Stock Wheel Excavator Machine 9 Ton Mini Wheel Excavator With Cheap PriceNegotiableMOQ: 1
Product description
Hengwang HW75 High Efficiency Hydraulic Wheel Excavator For Sale In Malaysia HW40 HW50 HW60 HW75
* 1.Electrical system: Equipped with color liquid crystal display, with self-test, monitoring, emergency fault alarm, good human-computer interaction, high-configuration electrical control software, higher reliability.

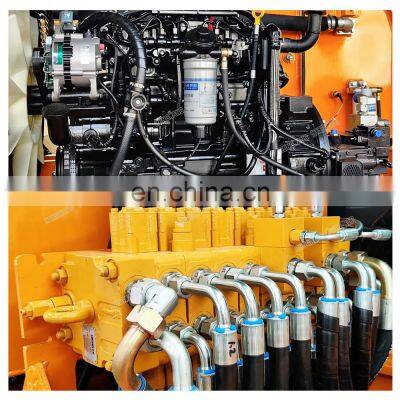

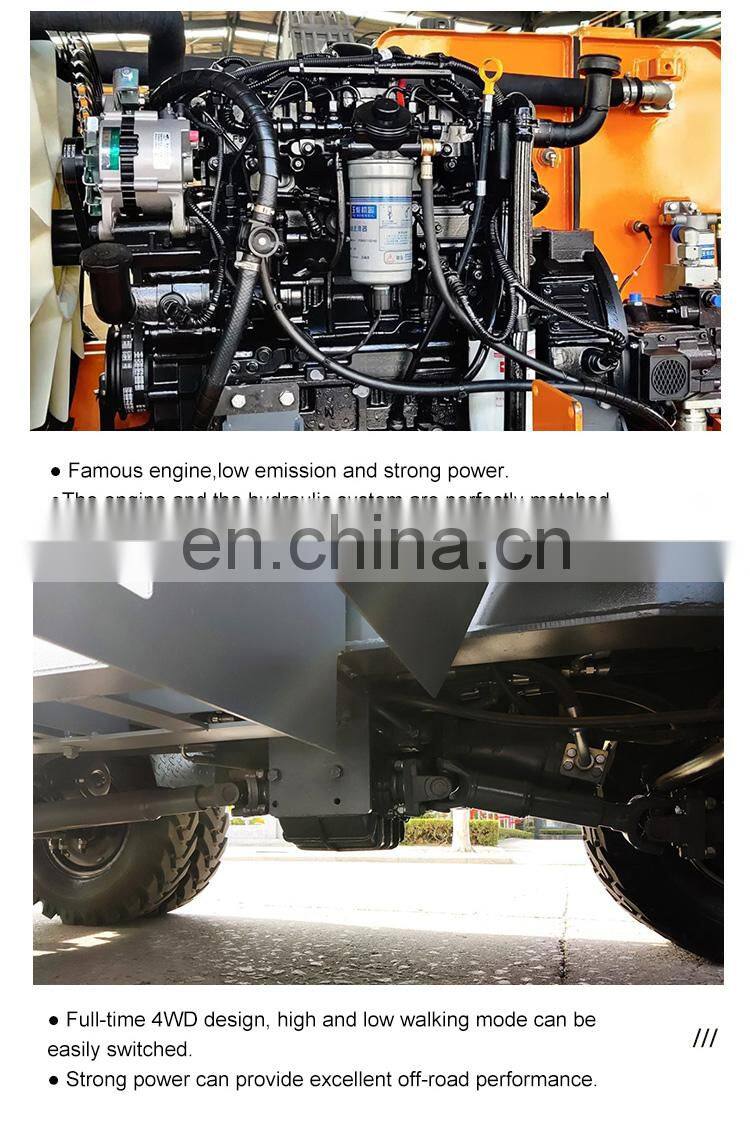

* 2. Power system: The advanced turbocharged exhaust engine has sufficient power reserves to maximize the power of the engine,achieve perfect matching and reduce power loss.
* 3.Hydraulic system: Imported international famous brand hydraulic parts, small power loss, fast action, good coordination of compound action, high efficiency and energy saving, high reliability and long service life.
* 4. Traveling system: using heavy-duty front and rear drive axles and gearboxes to provide higher carrying capacity.

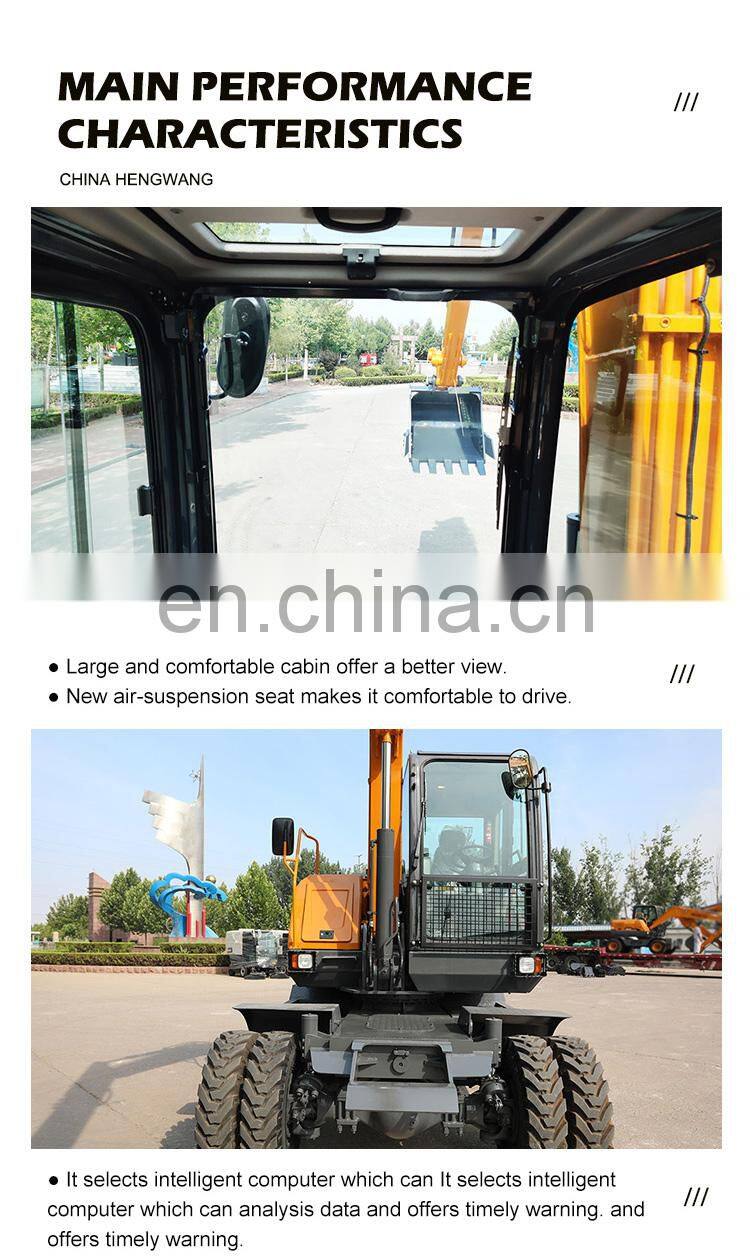

* 5. Cab: The new cab has a new interior design, wide vision, spacious and bright, humanized front gear mechanism, equipped with high-grade adjustable suspension seats, silicone oil shock absorption, and superior driving environment.
* 6. Cooling system: adopts parallel cooling installation method, easy to clean and install and remove, and has high cooling efficiency.
Technical Parameters
Item |
Unit |
Data |
||||
Model |
HW75 |
|||||
Machine Weight |
kg |
6600 |
||||
Bucket Capacity |
m3 |
0.28 |
||||
Dimension |
Track ground length |
mm |
/ |
|||
Track length |
mm |
/ |
||||
Ground clearance |
mm |
1023 |
||||
Rear turning radius |
mm |
1833 |
||||
Rear length |
mm |
1833 |
||||
Upper width |
mm |
2000 |
||||
Total height（Cab） |
mm |
2827 |
||||
Min. ground clearance |
mm |
217 |
||||
Tire distance |
mm |
1670 |
||||
Wheelbase |
mm |
2400 |
||||
Upper rail wheel |
piece |
/ |
||||
Lower rail wheel |
piece |
/ |
||||
Boom length |
mm |
3050 |
||||
Stick length |
mm |
1750 |
||||
Total Length |
mm |
5796 |
||||
Track shoe width |
mm |
/ |
||||
Total width |
mm |
2150 |
||||
Performance parameters |
Engine |
Model |
/ |
YD4JZG |
||
Type |
/ |
Water cooling / pressurization |
||||
Cylinder bore*Stroke |
mm |
￠95/105 |
||||
Displacement |
L |
2.977 |
||||
Rated Power |
kw/rpm |
48/2300 |
||||
Max.Torque |
N.m/rpm |
245/1610 |
||||
Hydraulic system |
Model(Hydraulic Pump) |
Gear Pump*2 |
SGP1A23F2H9-Shimadzu |
|||
Rated displacement |
ml/r |
23+23 |
||||
Pilot pump |
Mpa |
3 |
||||
Main valve |
/ |
Parker |
||||
Working pressure |
MPa |
20 |
||||
Rated flow |
L/min |
105.8 |
||||
Hydraulic oil tank |
L |
103 |
||||
Fuel tank capacity |
L |
125 |
||||
working system |
Swing speed |
rpm |
10 |
|||
Walking speed |
km/h |
0～30 |
||||
Bucket digging force |
kN |
35 |
||||
Bucket stick digging force |
kN |
28 |
||||
Max.Tractive force |
kN |
39 |
||||
Gradeability |
° |
30 |
||||
Ground specific pressure |
Kpa |
/ |
||||
Bulldozing plate (width * height） |
mm |
2024/440 |
||||
Parking brake |
/ |
Air brake |
||||
Driving system |
/ |
Air brake |
||||
Scope of work |
Max.digging distance |
mm |
6074 |
|||
Max.effective digging distance |
mm |
5878 |
||||
Max.digging depth |
mm |
3228 |
||||
Max.digging height |
mm |
6202 |
||||
Max.Unloading height |
mm |
4533 |
||||
Min.turning radius |
mm |
2361 |
||||
