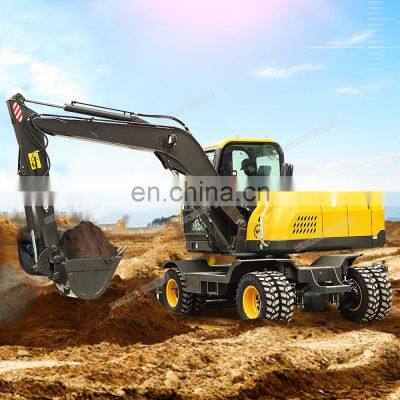

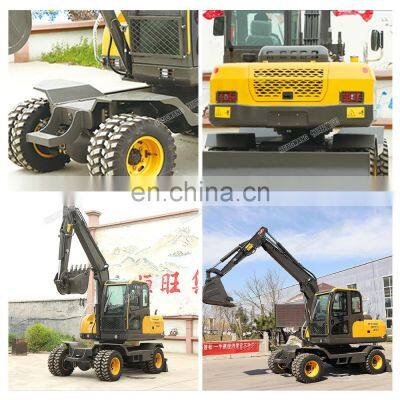

Hengwang HW90 9 Ton Four Wheel Drive Excavator New Hydraulic Wheel Excavator Machine Mini Wheel Excavator For Sale

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product description

Hengwang HW90 9 Ton Four Wheel Drive Excavator New Hydraulic Wheel Excavator Machine Mini Wheel Excavator For Sale

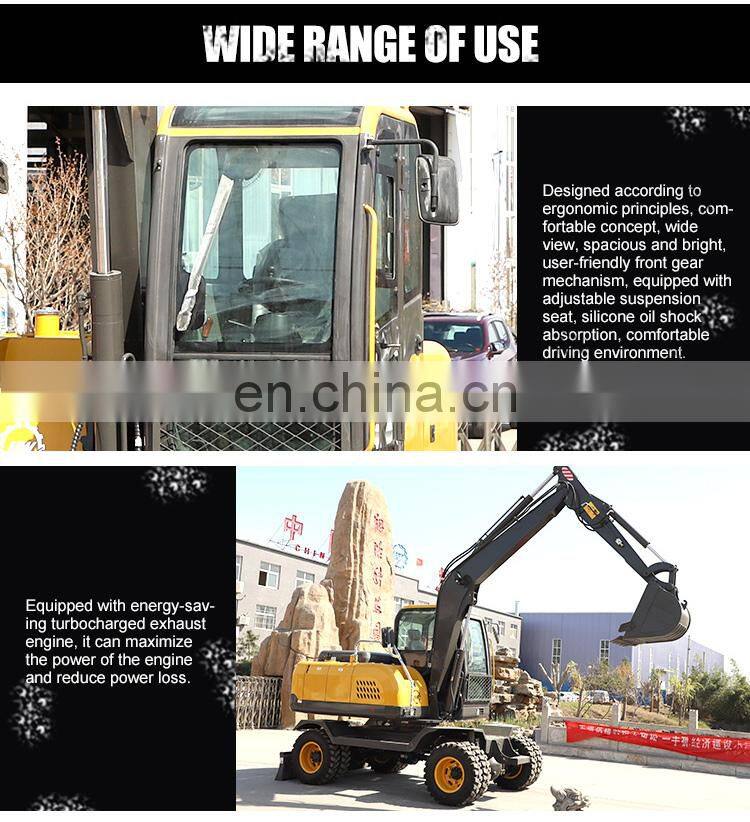

1. Cab: Designed according to ergonomic principles, adhering to the concept of safety and comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with high-end adjustable suspension seats, silicone oil shock absorption,comfortable driving surroundings.

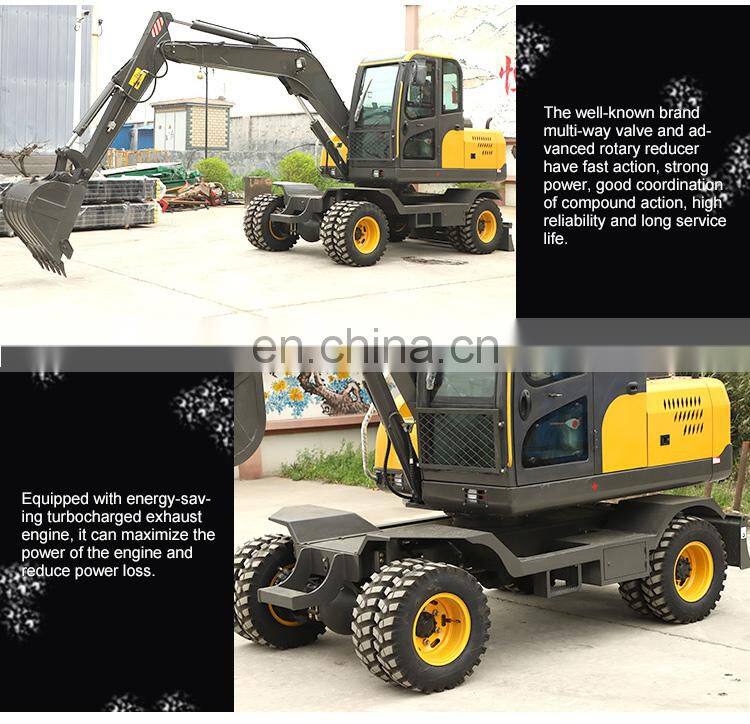

2. Power system: Equipped with an energy-saving and efficient turbocharged exhaust-type engine to maximize the power of the engine and reduce power loss.

3. Hydraulic system: Original imported multi-way valve and advanced rotary reducer of international famous brand, fast action, sufficient strength, good coordination of compound action, high reliability and long service life.

4. Electrical system: Equipped with a color LCD display, with multiple early warning functions of self-checking, monitoring, emergency fault alarm, good man-machine interaction, high-configuration electrical control software, and higher reliability.

5. Walking system: use heavy-duty front and rear drive axles and gearboxes to provide stronger carrying capacity.

6. Hengwang wheeled excavators have the advantages of energy saving, high efficiency, reliability and comfort. Its excellent performance and low speed work save fuel and output. With excellent performance, advanced manufacturing technology, and perfect after-sales service system, Hengwang Group is your wise choice.

Technical Parameters

Technical Specification of HW90 wheel excavator

Item

Unit

Data

BASIC PARAMETERS

Operating weight
（Outrigger options）

7000
7600

Volume of bucket

0.30

Overall length

6504

Overall width

2150

Upper structure width

2000

Overall height

2748

Boom length

3650

Arm length

2000

Ground clearance

948

Rear-end swing radius

2054

Min.ground clearance

240

Tyre gauge

1670

Wheel shaft diameter

2400

PERFORMANCEPARAMETERS

POWER
SYSTEM

Engine model

4100（YTO）

Modality

Water cooled/pressurized

Power

kw/rpm

60/2400

Max.torque

N.m/rpm

245/1610

HYDRAULIC
SYSTEM

Hydraulic pump

Gear pump

SGP1A2XF2H9-shimadzu

Hydraulic pump

Plunger pump

T5VP2D27-Doosan

Valve

HF/Parker

Hydraulic oil tank

110

Fuel tank

130

OPERATING
SYSTEM

Swing speed

rpm

Travel speed

km/h

35~40

Bucket digging force

Arm digging force

Max.Hauling force

Gradeability

Parking brake

automatically air-cut brake

Service brake

Air brake

OPERATING SCOPE

Max.digging reach

6547

Max.digging depth

4364

Max.digging height

6736

Min.swing radius

2288
