Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Hengwang HW50 Construction Equipment China Excavator Wheeled 5 Ton Excavator Driving Wheel
Hengwang HW50 Construction Equipment China Excavator Wheeled 5 Ton Excavator Driving Wheel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hengwang HW50 Excavator Machine 5 Ton Bucket Wheel Excavator Compact Wheel Excavator PriceNegotiableMOQ: 1 -
Hengwang HW60 China Crawler Excavator Manufacture 6 Ton Mini Excavator Crawler Excavator For SaleNegotiableMOQ: 1
-
Hengwang HW-85 New Excavator With 8400KG Operating Weight 48KW Diesel Wheel Excavators Mini Digger PriceNegotiableMOQ: 1
-
Hengwang HW75 Rated Power 48kw Hydraulic Wheel Excavator 7.5ton New Made in ChinaNegotiableMOQ: 1
-
Hengwang HW75 High Efficiency Hydraulic Wheel Excavator For Sale In Malaysia HW40 HW50 HW60 HW75NegotiableMOQ: 1
Product description

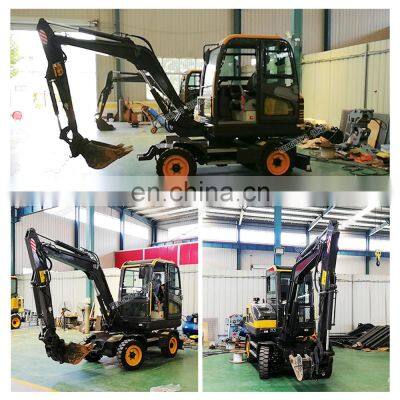

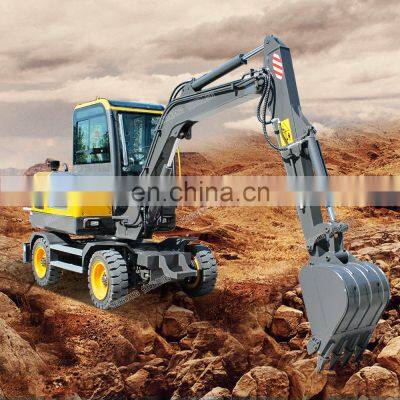

Hengwang HW50 Construction Equipment China Excavator Wheeled 5 ton Excavator Driving Wheel
HW50 wheel excavator is a new generation of fully hydraulic wheeled excavator independently researched and developed by Hengwang Group. It adopts high-power and low-fuel consumption national three standard engine to ensure the strong power and power reserve of the whole machine; high-efficiency hydraulic system and bridge box Accurate matching ensures the free switching between working status and walking status; The hydraulic system of the whole machine is matched with imported hydraulic components, which has the characteristics of "high reliability, authenticity, safety and environmental protection, comfort and convenience". At the same time, it can provide a variety of special configuration options. Can adapt to the needs of different countries and customers.
Technical Parameters
Dimensions |
||
Overall Length（mm） |
5262 |
|
Overall Height（mm） |
2500 |
|
Width（mm） |
1530 |
|
Clearance under counter weight（mm） |
708 |
|
Ground clearance（mm） |
256 |
|
Tail swing radius（mm） |
1560 |
|
Steering width（mm） |
1530 |
|
Working Range |
||
Boom Length（mm） |
2595 |
|
Arm Length（mm） |
1700 |
|
Max.Digging Distance（mm） |
5500 |
|
Maximum vertical digging depth（mm） |
1838 |
|
Max.Digging Height（mm） |
5060 |
|
Max.Dumping Height（mm） |
4899 |
|
Min.Radius of gyration（mm） |
2056 |
|
Engine |
||
Brand |
Changchai |
|
Output |
36.8Kw |
|
Fuel tank capacity（L） |
80 |
|
Performance Parameter |
||
Hydraulic pump model |
Load-sensing pump |
|
Maximum displacement（L/min） |
45 |
|
Hydraulic pressure（Mpa） |
20 |
|
Oil tank volume（L） |
60 |
|
Bucket Capacity（m³） |
0.12 |
|
Bucket digging force（KN） |
24.2 |
|
Travel speed（km/h） |
16 |
|
Swing speed（r/min） |
11.5 |
|
Operating Weight（Kg） |
4800 |
|
