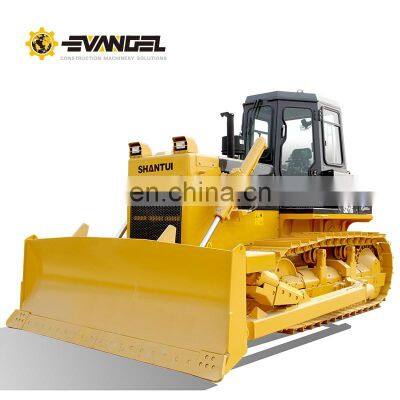

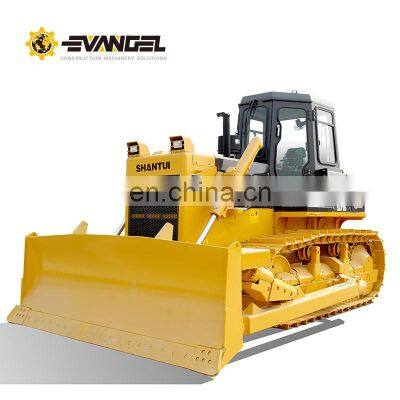

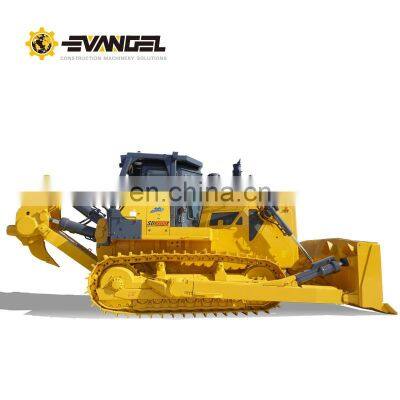

Shantui 320HP SD32G Bulldozers extreme cold type tracked bulldozer for sale
Adopt new environmental protection engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable. The layout of intake pipe is optimized to reduce intake resistance, increase intake and improve fuel efficiency.
Large space cab spacious and comfortable, more open view, new cab surrounded by shading shade; Optimize the three-stage shock absorption system to further improve seat comfort. Push and pull the Windows on both sides of the cab, greatly improve the operating comfort.
Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope use for thick cable and guide pulley bearing are imported parts and have reliable performance.
1.longer time warranty: one year,
2.package:sea protecting package with film not nude wether by container or not.
3.quality is strong with good steel body frame, brand component, technology is mature.
4.suitable design that the length size of forklift is longer because of the suitable driving space
5.lower price compare the same machines
6.service is satisfied with our after-sales team and engineering team
| ITEM | UNIT | SD32G |
|---|---|---|
| L×W×H (Ripper not included) | mm | 6880×4130×3640 |
| Operating weight (Ripper not included) | t | 37.5 |
| Engine | - | NTA855-C360S10 |
| Rated power | kW/rpm | 235/2000 |
| Gradeability | ° | 30 |
| Blade type | - |
Straight tilt blade Semi-U blade Angle blade |
| Blade width | mm |
Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 |
| Dozing capacity | m3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
| Ma× drop below ground of blade | mm | 560 |
| Lift height of blade | mm | 1560 |
| Ripper type | - |
Single ripper Three-shank ripper |
| Ripping depth of ripper | mm |
Single ripper 1250 Three-shank ripper 842 |
| Lifting height of ripper | mm |
Single ripper 955 Three-shank ripper 883 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2140 |
| Ground length and ground pressure | mm/MPa | 3150-0.105 |
| Pitch | mm | 228.6 |
| Forward speed | km/h | 0–3.6 |
| 0–6.6 | ||
| 0–11.5 | ||
| Reverse speed | km/h | 0–4.4 |
| 0–7.8 | ||
| 0–13.5 |
