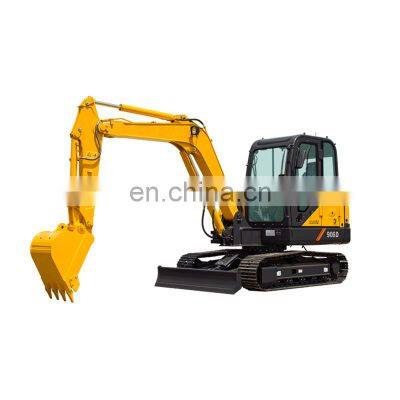

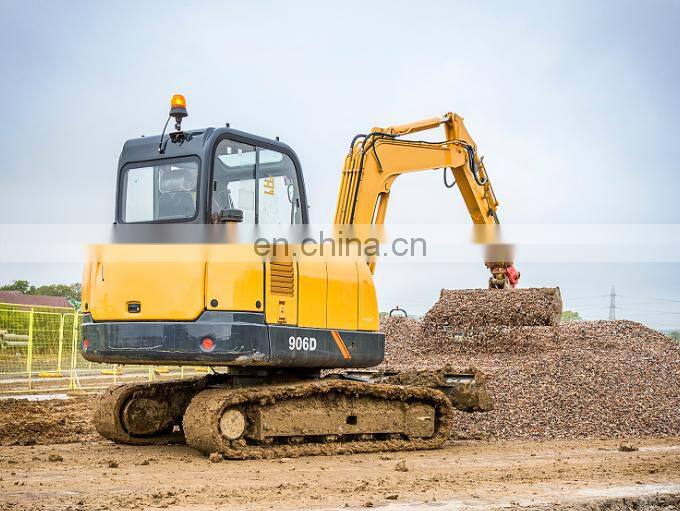

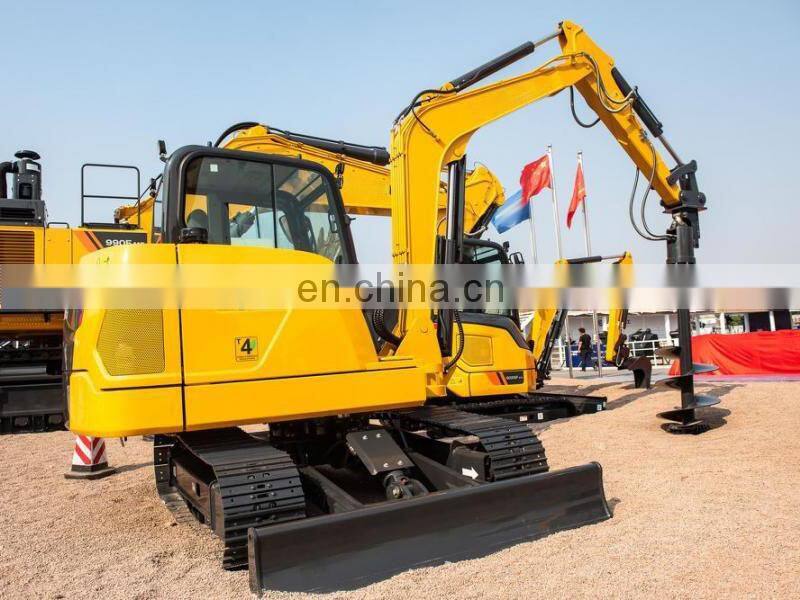

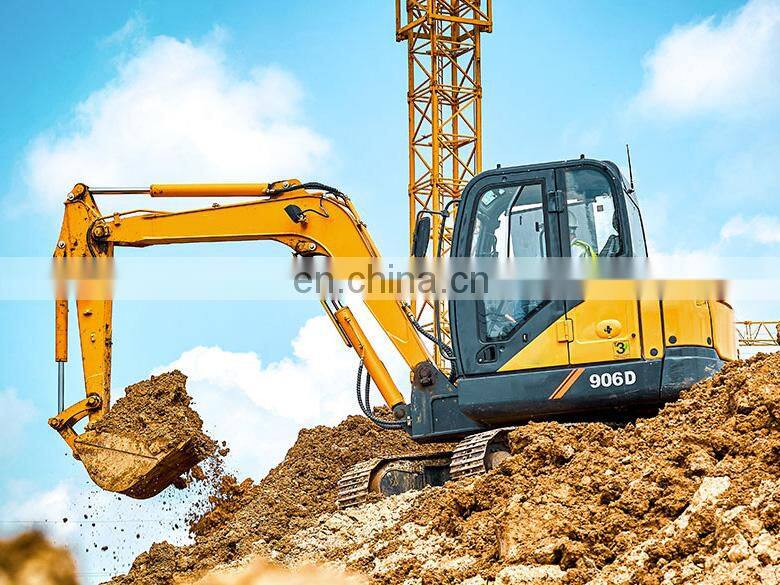

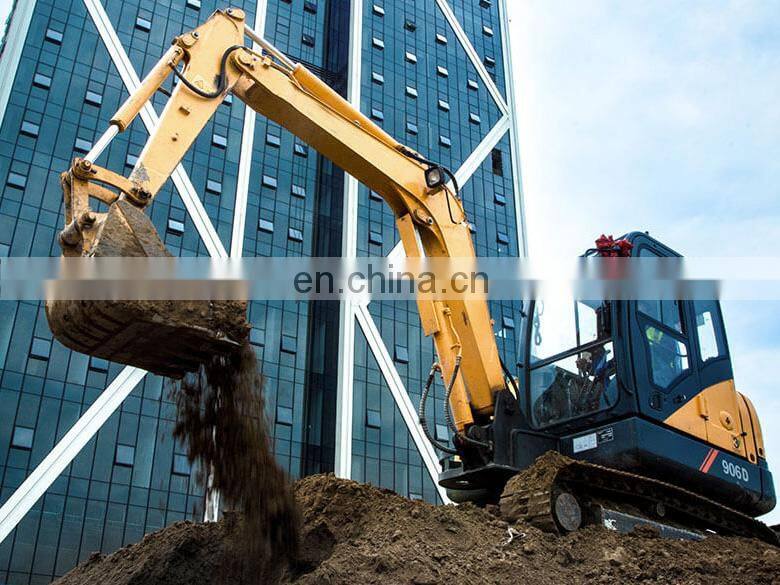

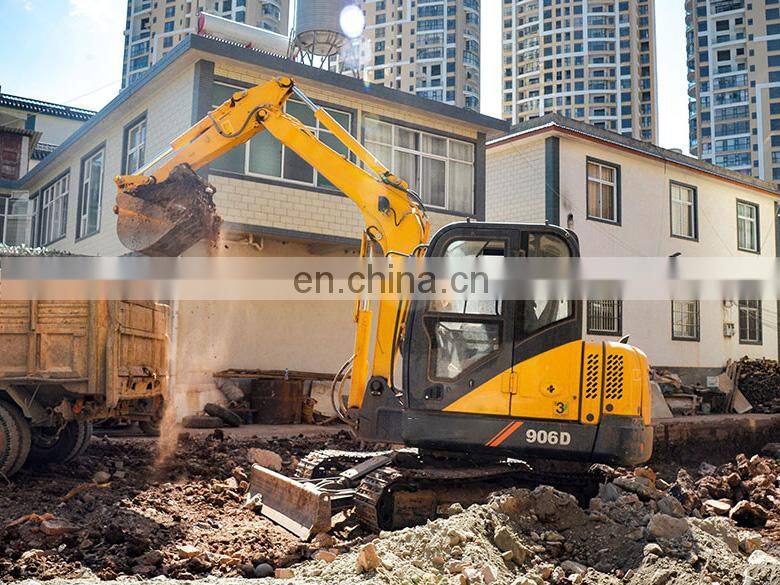

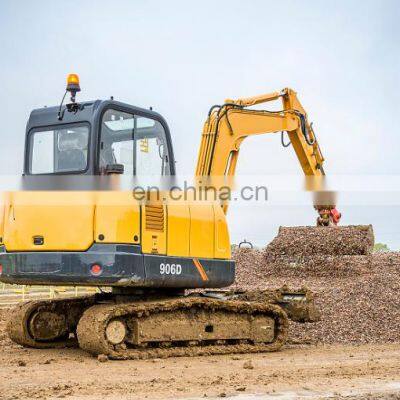

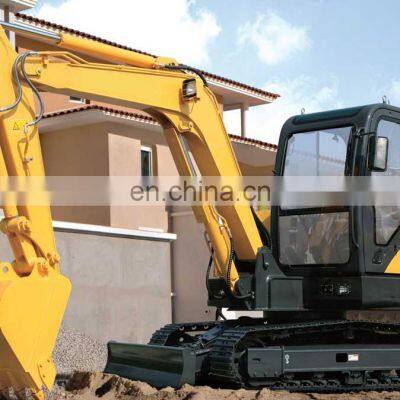

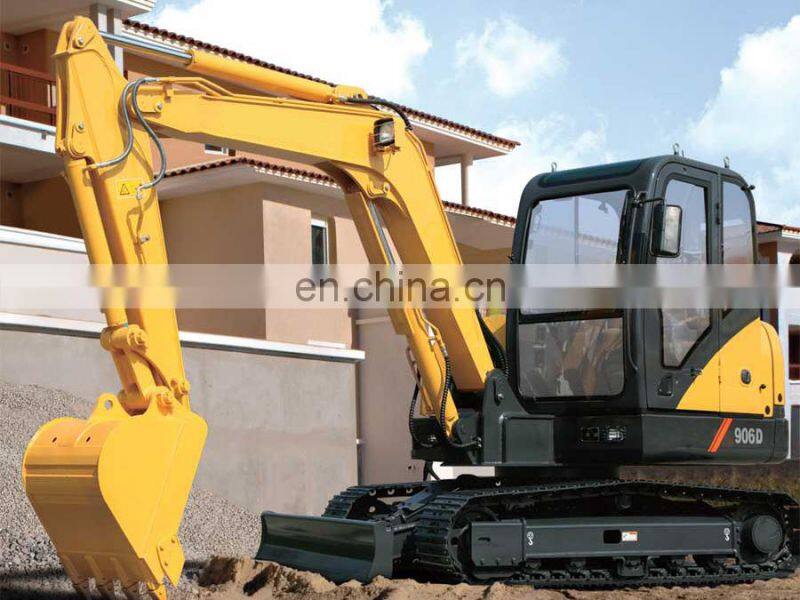

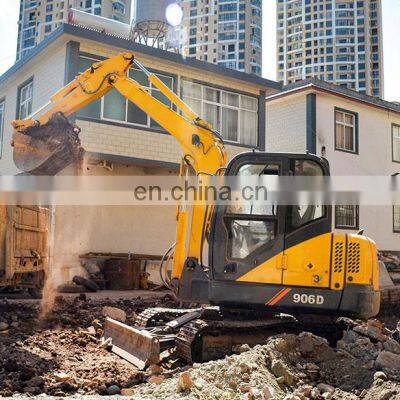

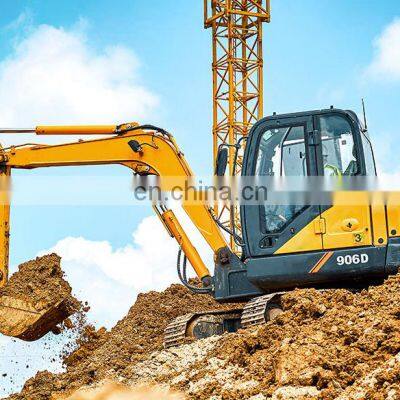

China small 6 tons hydraulic crawler excavator 906E Lonking CDM6065E/XE60D/XE60DA/SY60C/SE60
Equipped with Yan-mar engine that meets Stage III emissions, it has strong power, and the industry's same tonnage industry provides large power output and flow,
on the basis of ensuring high efficiency, it also has higher reliability and durability
The new main pump displacement is supplied to the system on demand, the standby is automatically reduced,
and the work is provided on demand, reducing energy consumption and energy saving
Operating weight with cab 5900 kg
Engine power 36.2 kW (48.5 hp) @ 2100 rpm
Bucket capacity 0.06-0.23 m³
Maximum travel speed (High) 4.1 km/h
Maximum travel speed (Low) 2.5 km/h
Maximum swing speed 10.4 rpm
Arm breakout force 31 kN
Bucket breakout force 41 kN
Shipping length 5900 mm
Shipping width 1900 mm
Shipping height 2630 mm
Track shoe width (std) 400 mm
Boom 3000 mm
Arm 1600 mm
Digging reach 6205 mm
Digging reach on ground 6065 mm
Digging depth 3875 mm
Vertical wall digging depth 2940 mm
Cutting height 5790 mm
Dumping height 4135 mm
Minimum front swing radius 2430 mm
Dozer-up 360 mm
Dozer-down 405 mm
Model Yan-mar 4TNV94L-BVLY
Emission EU Stage IIIA
System maximum flow 142.8 L/min (37.7 gal/min)
System pressure 25 MPa
