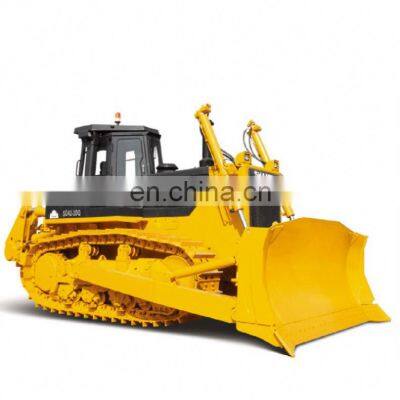

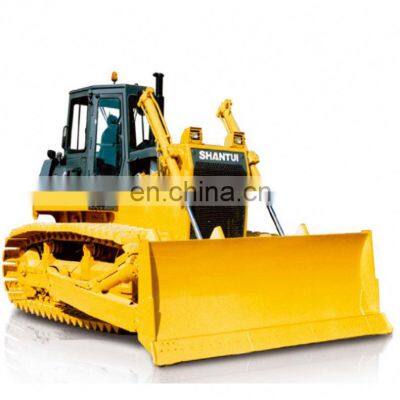

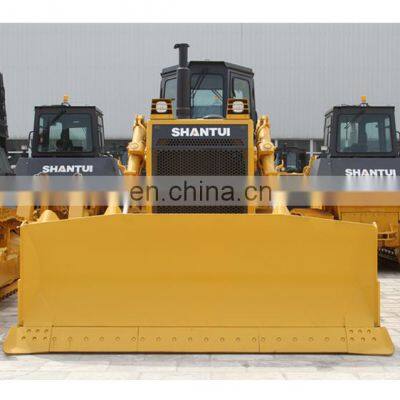

Shantui Bulldozer crawler dozer SD32
Travel speed
|
forward |
reverse |
|
|
1st |
0-3.6km/h |
0-4.4m/h |
|
2nd |
0-6.6m/h |
0-7.8m/h |
|
3rd |
0-11.5m/h |
0-13.5m/h |
Final drive
final drive--2-stage spur gear,speed reduction,splash lubrication
undercarriage system
suspension--swing type of sprayed beam, suspended structure of equalizer bar
NO. Of carrier rollers--2(each side)
NO.of track rollers--7(each side)
NO. Of idler--1(each side)
Track shoe
assembled type--single tooth
pitch--228.6mm
width--560mm
tooth height--80mm
NO. Of track shoes--41(each side)
track gauge--2140mm
ground pressure--0.105Mpa
weight
operating weight--37200kg
with multi-ripper--40975kg
hydraulic control system
Max. Pressure--14Mpa(140kg/m²)
type--gear pump
displacement--335.5L/min
control valve type--guiding valve,raise,hold,lower,float
hydraulic tank--control valve and oil filter inner-installed type
steering system
steering clutch--wet type,multi-disc,spring loaded,hydraulially separated,hand and hydraulic control operated
steering brake--wet type,band brake,foot operated(with hydraulic booster, interconnected with clutch)
coolant and lubricant capacity
working device and attachment
straight-tilt dozer--hydraulically actuated with servo valve
blade supporting method--brace type tilt cylinder on right side
width--4130mm
height--1590mm
Max. Lift above ground--1560mm
Max.drop below ground--560mm
Max.Tilt adjustment--1000mm
3-shank ripper
Max. Digging depth--542mm
Max.lift above ground--883mm
Standard digging angle--45°
variable within range between35°-63°
Max.digging depth of single ripper--1250mm
Max. Lift above ground--965mm
overall dimensions
LXWXH--6880X4130X3725
|
engine |
|
|
model |
NAT855-C360 |
|
type |
turbo charged,inter cooled,in-line,4-cycle |
|
NO. Of cylinders-bore X stroke |
6-139.7x152.4mm |
|
piston displacement |
14010ml |
|
flywheel horsepower |
235kw(320) |
|
rated revolutions |
2000r/min |
|
Max. Torque |
1440N.M/1440r/min |
|
fuel consumption |
245g/kw.h(180g/.h) |
|
start motor |
24v,11kw |
|
alternator |
28v,35A |
|
battery |
24v(12vX2)-195AH |
|
fuel system |
PT pump head valve direct injection |
|
governor |
centrifugal, all speed governor |
|
cooling system |
forced circulation by centrifugal pump,busher type fan |
|
air cleaner |
dry,horizontal type with air cleaner |
|
transmission |
|
|
torque converter |
3-element,1-stage,1-phase |
|
cooling method |
water-cooled |
|
power-shift planetary gear transmission |
planetary gear, multiple-disc clutch,hydrauliclly connected forced lubrication by gear pump |
|
main-drive shaft |
spiral bevel gear,splash lubrication |
