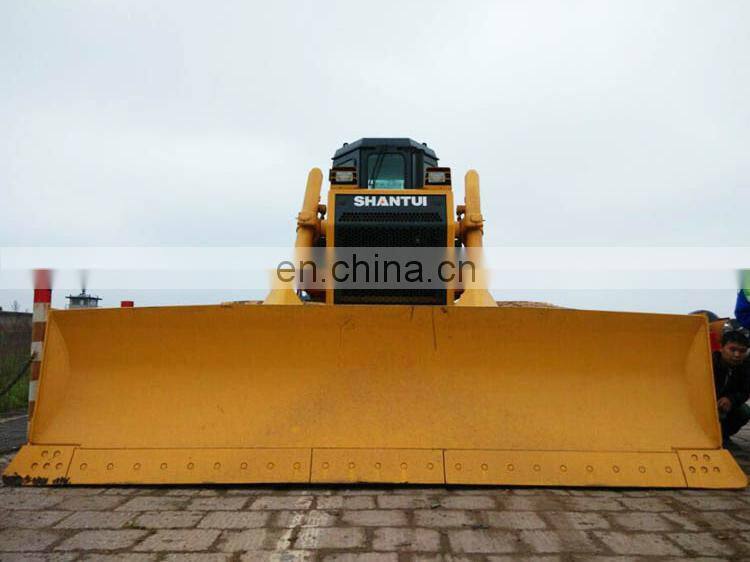

Help Center2022 Evangel Shantui Bulldozer Sd26 Sanitation Bulldozer
Related Products
-
2022 Evangel Shantui 260Hp Full-Hydraulic Crawler Bulldozer With Pivot SteeringNegotiableMOQ: 1 -
Garden Machinery Chinese Brand 365B Skid Steer Loader for SaleNegotiableMOQ: 1
-
Zl20F CLG840H Snow Blower Front Loader Compact Loader 1Ton Wheel LoaderNegotiableMOQ: 1
-
Big 10T Excavator Mining Crawler Excavator CLG910ENegotiableMOQ: 1
-
Crawler Excavator 10 Ton With Price CLG910ENegotiableMOQ: 1
Skype: live:selina_jiang5
Mobile /Whatsapp/Wechat: +8615921412075
Evangel(shanghai)Industrial Co,Ltd
E-mail:Selina@
Evangel International Machinery Ltd
Add: Suite 2806,Super Ocean Finance Center,No.2067 West Yan'an Road, Shanghai, 200336, China
Web:
Alibaba: http://evangelchina.en.china.cn
Made-in-China:
/evangelchina
Feature For 260Hp Crawler Bulldozer SD26
1. power system:
a. Equipped with electronically controlled engine to meet national non-road machinery national stage III emission requirements, with strong power, high efficiency and energy saving, and low maintenance cost;
b. The torque reserve coefficient is large, and the rated power reaches 206kW;
c. Improved air filter, intake and exhaust system, with a filtration accuracy of 99%, effectively improving the service life of the engine.
2.Transmission system:
a. The transmission system is perfectly matched with the engine curve, the high-efficiency area is wider and the transmission efficiency is higher;
b. Shantui self-made transmission system has been tested in the market for a long time, with stable performance and reliable quality.
3.Driving environment:
a. Hexahedral cab, large internal space and wide view, FOPS/ROPS can be configured as required, safe and reliable;
b. Electronically controlled hand and foot throttle, more precise and comfortable operation;
c. Configure intelligent display and control terminals, heating and cooling air conditioning, etc., to provide a richer user-friendly driving experience, allowing you to understand the status of the system at any time, smart and convenient.
4.Work adaptability:
a. The stable and reliable Shantui mature product chassis system is suitable for various harsh working conditions;
b. The grounding length is long, the ground clearance is large, the driving is smooth, and the passability is good;
c. It can be equipped with sanitation shovel, ripper, universal shovel, etc. according to the specific working conditions. It has strong operation adaptability, and can be equipped with LED work lights to enhance the night construction lighting capacity, which is more safe and reliable.
5.Easy to maintain:
a. Structural parts inherit the excellent quality of Shantui mature products;
b. The electrical wiring harness adopts corrugated tube protection, splitter branching, and high protection level;
c. Equivalent side design of fuel filter and air filter, one-stop maintenance.
| Parameter name | SD26 | SD26E(LONG TRACK) | SD26F(FOREST LOGGING) | SD26S(LGP) |
| Performance parameters | ||||
| Operating weight (Kg) | 23400 | 24600 | 24700 | 25700 |
| Ground pressure (kPa) | 77 | 72 | 66 | 41 |
| Engine | ||||
| Engine model | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 |
| Rated power/rated speed (kW/rpm) | 206/1800 | 206/1800 | 206/1800 | 206/1800 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 5495*3725*3402 | 5495*3725*3402 | 5495*3725*3402 | 6225*4365*3402 |
| Driving performance | ||||
| Forward speed (km/h) | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
| Reversing speed (km/h) | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 |
| Chassis System | ||||
| Center distance of track (mm) | 2000 | 2000 | 2000 | 2250 |
| Width of track shoes (mm) | 560 | 560 | 560 | 910 |
| Ground length(mm) | 2730 | 3050 | 2730 | 3480 |
| Tank capacity | ||||
| Fuel tank (L) | 450 | 450 | 450 | 450 |
| Working device | ||||
| Blade type | Straight-tilt | Straight-tilt | Straight-tilt | Straight-tilt |
| Ripper type | Single shank/3 shanks | Single shank/3 shanks | Single shank/3 shanks | —— |
| Ripping depth (mm) | 695/666 | 695/666 | 695/666 | —— |
