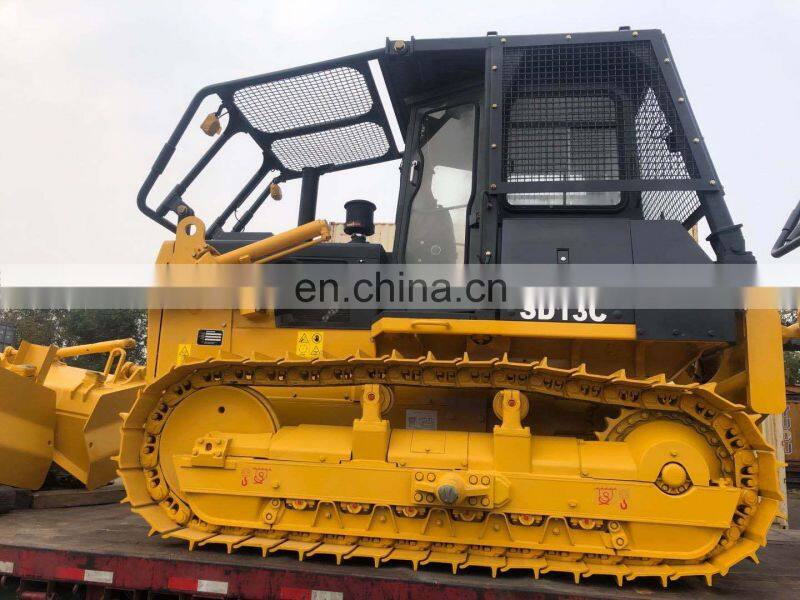

SHANTUI 130HP Coal Bulldozer SD13C
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SHANTUI 160HP Swamp Bulldozer SD16L
-
Wheel Loader ZL50GN Sale With Cheap Price
-
SHANTUI Large Excavator SE360 Crawler Excavator 36 Ton
-
SE370LCW Price of Shantui Heavy Excavator 37 Ton Crawler Hydraulic Excavators
-
Cost-effective Shantui 27 Ton China Crawler SE270 Small Excavator Digger With 1.35cbm Bucket
-
SHANTUI Large Excavator Excavator SE270 Crawler Excavator 27 Ton
Product Description
SHANTUI 130HP Coal Bulldozer SD13C
Products Description
SD13C bulldozer adopts hydraulic drive and operation mode, featuring advanced and reasonable overall structure and good
performances. This series bulldozer features moderate power, high technologic extent, and extensive application scope and is deeply favored by extensive users.
performances. This series bulldozer features moderate power, high technologic extent, and extensive application scope and is deeply favored by extensive users.
Specification
ENGINE | Model & type | Shangchai SC8D143G2B1; Water-cooled, in-line, 4-cycle, direct injection and turbocharged | ||||
Horsepower | Gross power: 105/141/1900 kW/HP/rpm // Net power: 95.5/130/1900 kW/HP/rpm | |||||
Number of cylinders | 6—114 x 135 mm (bore x stroke) | |||||
Piston displacement | 8.27 L | |||||
Min. fuel consumption | 228 g/kW·h | |||||
Maximum torque | 674 N·m@1300 rpm | |||||
POWER | Torque converter | 3-element, 1 stage, 1 phase | ||||
TRANSMISSION | Transmission | Forced connected, planetary gear, power shift | ||||
SYSTEM | Main drive | Spiral bevel gear, splash lubrication | ||||
Steering clutch | Wet, multi-disc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake | |||||
Steering brake | Wet, flfloating, band type foot stepping brake with hydraulic helping | |||||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||||
TRAVEL | Gear | 1st | 2nd | 3rd | ||
SPEED | Forward | 0~3.2 km/h | 0~5.9 km/h | 0~9.8 km/h | ||
Reverse | 0~3.9 km/h | 0~7.1 km/h | 0~11.9 km/h | |||
UNDERCARRIAGE | Type | Swing type of sprayed beam, suspended structure of equalizer | ||||
SYSTEM | Carrier rollers | 2 each side | ||||
Track rollers | 6 each side | |||||
Track type | Single grouser, dry type | |||||
Width of track shoes | 460 mm | |||||
Pitch | 190 mm | |||||
HYDRAULIC | Maximum pressure | 14 MPa | ||||
SYSTEM | Pump type | Gear pump | ||||
Discharge | 180 L/min | |||||
Bore of working cylinder×no. | 90 mm×2 | |||||
BLADE | Blade type | Straight-tilt | Angle | |||
Dozing capacity | 3.7m^3 | 3.4m^3 | ||||
Blade width | 3185mm | 3745mm | ||||
Blade height | 1090mm | 915mm | ||||
Maximum drop below ground | 590 mm | 590 mm | ||||
Lifting height of blade | 930 mm | 930 mm | ||||
RIPPER | Maximum digging depth of 3-shank ripper | 467 mm | ||||
Maximum lift above ground | 559 mm | |||||
Weight of 3-shank ripper | 1421 kg | |||||
Blade Type | Straight-tilt | Angle | ||||
Min. ground clearance: | 320 mm | 320 mm | ||||
Ground pressure: | 0.063 MPa | 0.063 MPa | ||||
Minimum turning radius: | 4.466 m | 4.545 m | ||||
Gradeability: | 30° | 30° | ||||
Track gauge: | 1880 mm | 1880 mm | ||||
