Home > Products > Earthmoving Machinery > 3 Ton Front End Loader Prices Sand Loader Compact Loader LW300FN
3 Ton Front End Loader Prices Sand Loader Compact Loader LW300FN
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Contact Way
Annie Li
Mobile / Whatsapp / Wechat: +86138 1769 0558
Annie Li
Mobile / Whatsapp / Wechat: +86138 1769 0558
Products Description

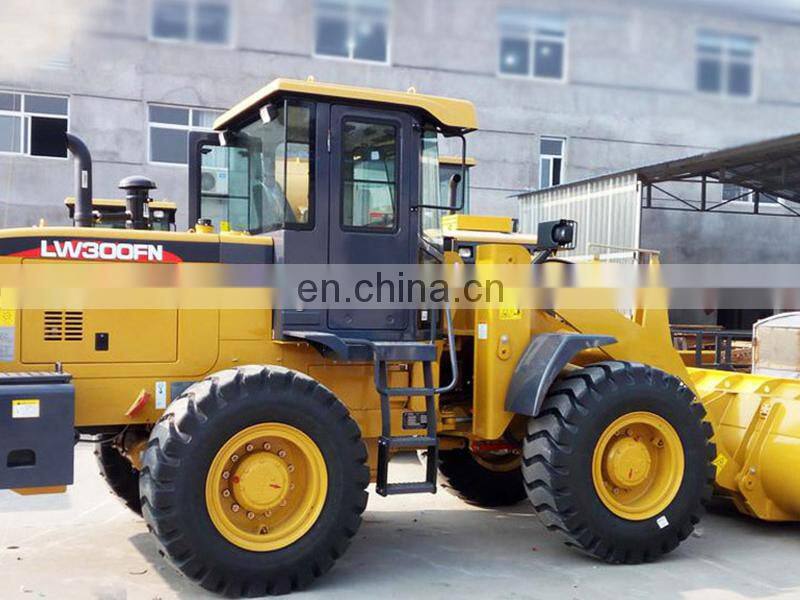

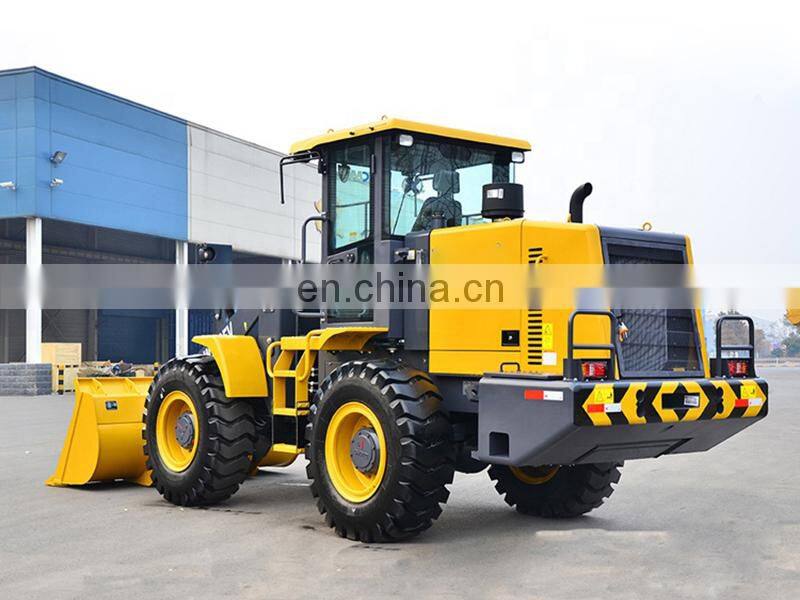

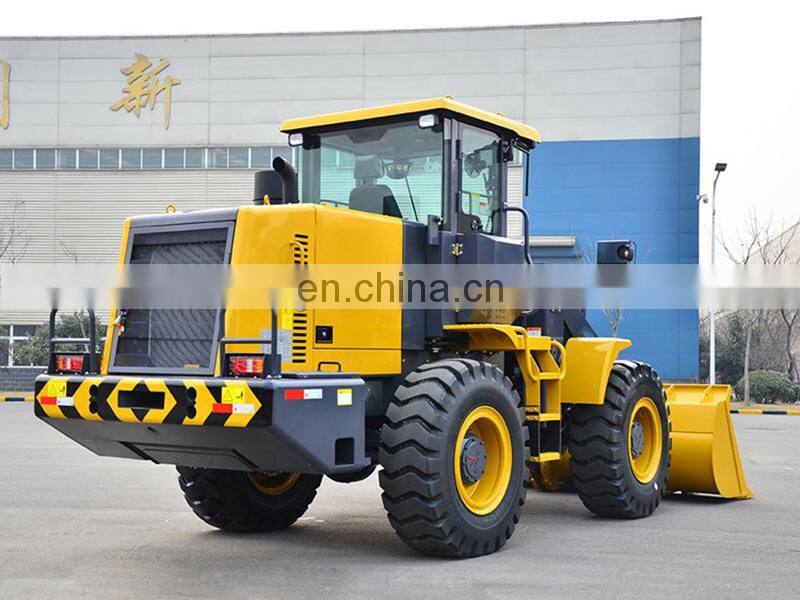

China brand new design compact wheel loader 3ton payloader mini loader for sale LW300FN
LW300FN is the most popular model of China 3t wheel loader
1. It features high efficiency, energy-saving, and strong power.
2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
4. The bucket is made of high strength material to realize high wear and impact resistance.
5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under
different working conditions.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
1. It features high efficiency, energy-saving, and strong power.
2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
4. The bucket is made of high strength material to realize high wear and impact resistance.
5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under
different working conditions.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
Specification
Description | Unit | Parameter value |
Rated operating load | kg | 3000 |
Bucket capacity | m³ | 1.5~2.5 |
Machine weight | kg | 10600±200 |
Dump clearance at maximum lift | mm | 2770~3260 |
Reach at maximum lift | mm | 1010~1210 |
Wheel base | mm | 2600 |
Tread | mm | 1850 |
Height of hinge at maximum lift height | mm | 3830 |
Working height(fully lifted) | mm | 4870 |
Max.breakout force | kN | 130 |
Max.horse power | kN | 95 |
Hydraulic cycle time-raise | s | 5.5 |
Total hydraulic cycle time | s | 10 |
Min. turning radius over tyres | mm | 5165 |
Articulation angle | ° | 35±1 |
Gradeability | ° | 28 |
Tyre size | 17.5-25-12PR | |
Overall machine dimension L×W×H | mm | 7050×2482×3118 |
Model | WP6G125E22 | |
Emission standards | Emission 2 | |
Rated Power/Speed | kW/rpm | 92/2200 |
Fuel Tank | L | 170 |
Hydraulic Tank | L | 170 |
I-gear(F/R) | km/h | 8/10 |
II-gear(F/R) | km/h | 13/30 |
III-gear(F) | km/h | 24/- |
IV-gear(F) | km/h | 40/- |
