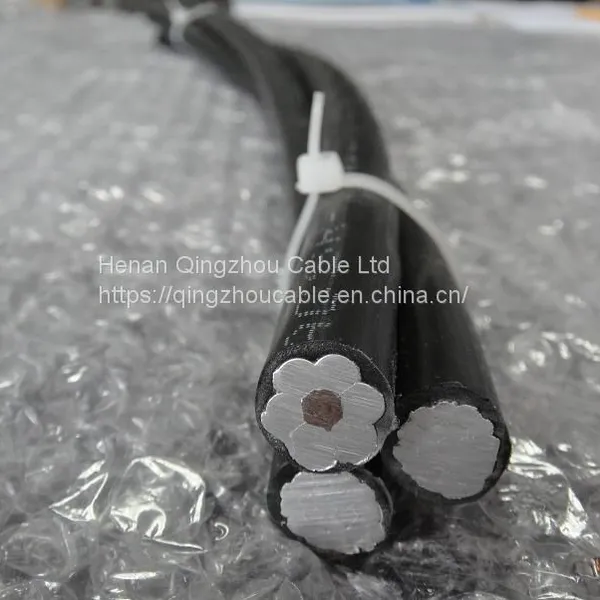

Help Center0.6/1KV Duplex Triplex Quadruplex Service Drop Cable ABC
Related Products
-
Covered Aerial MV Cable Spacer Cable Tree Wire Overhead Insulated CableUS$ 1 - 1.1MOQ: 5000 Meters -
15kV 25kV 35kV SAC Aluminum Spaced Aerial CableUS$ 1 - 1.1MOQ: 5000 Meters
-
0.6/1kv NF2X / NFA2X- Aerial Bundled Copper/Aluminium Conductor Twisted CableUS$ 1 - 1.1MOQ: 5000 Meters
-
Kabel AAACS Kabel A3CS AAAC-S All Alloy Aluminium Conductor With XLPE InsulatedUS$ 1 - 1.1MOQ: 5000 Meters
-
ACSR/AW-OC. TR/OC Outdoor Weather-proof WireUS$ 1 - 1.1MOQ: 5000 Meters
CONDUCTOR: Concentrically stranded, compressed 1350-H19 aluminum
INSULATION: Polyethylene PE or XLP crosslinked polyethylene XLPE
MESSENGER: Concentric strand AAC, ACSR, or AAAC 6201 alloy neutral messenger
FEATURE: Insulated phase conductors twisted around a bare AAC, aluminum alloy or ACSR neutral conductor
Constructions
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC or ACSR.
Standards
ASTM B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded
ASTM B-232 Aluminum Conductors, Concentric-Lay-Stranded,
Coated Steel Reinforced (ACSR)
ASTM B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors
ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
ANSI/ICEA S-76-474
