Wheel Loader Series with Tools of All Kinds are All Available.

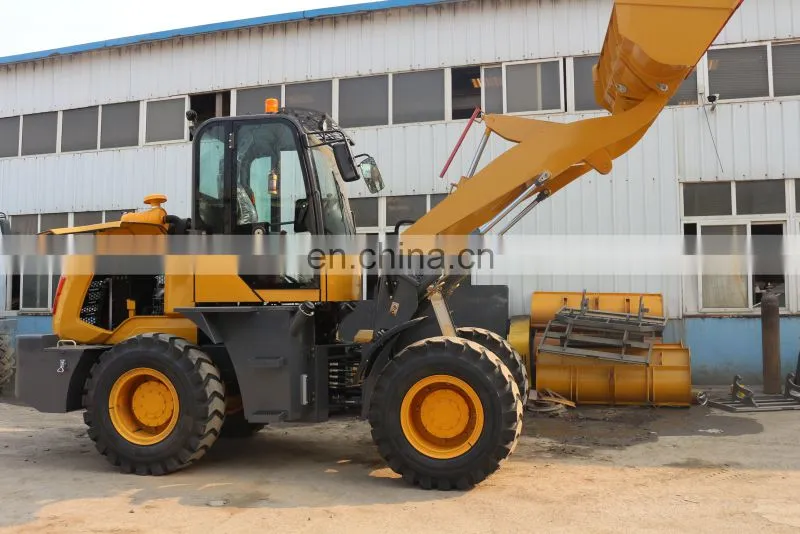

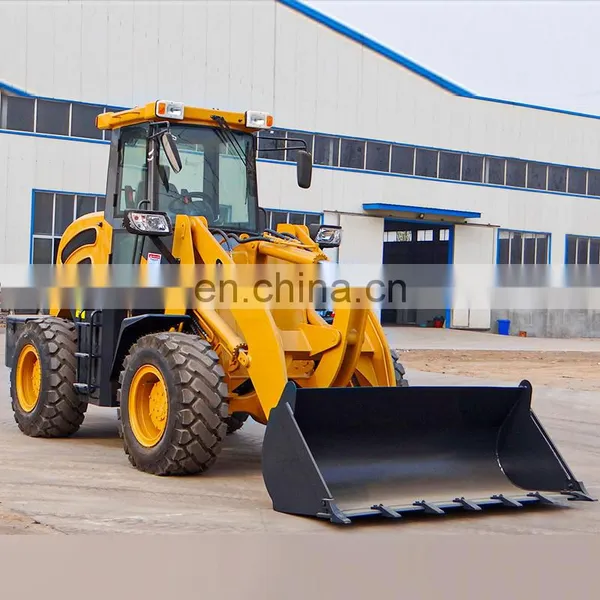

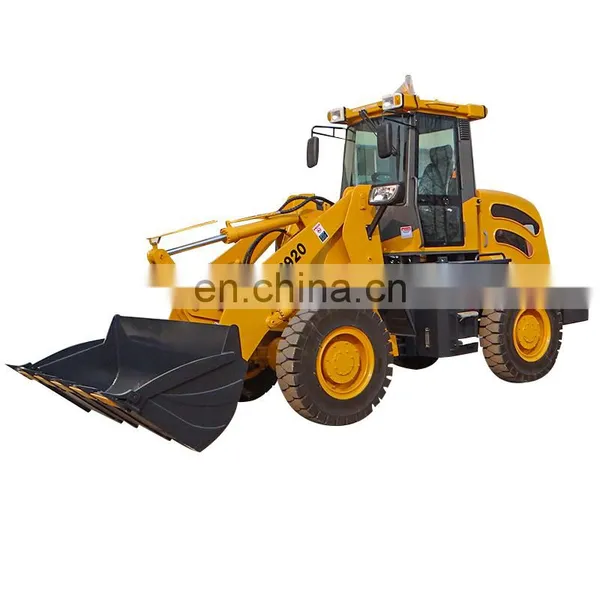

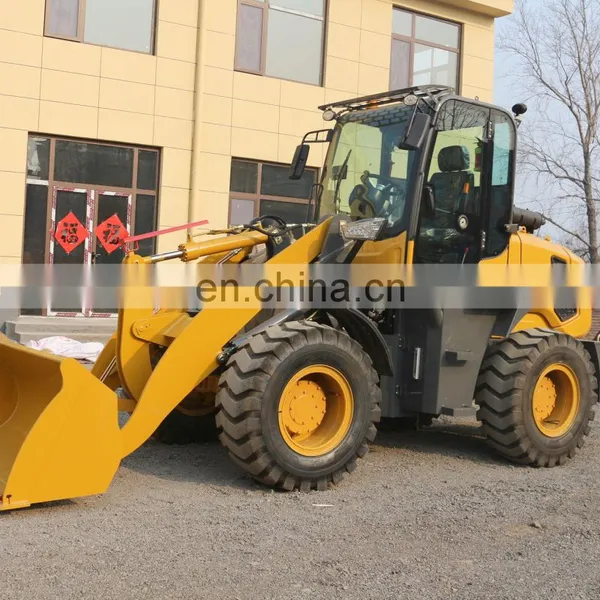

Features 2.0 ton heavy machine tractor loader
*Fully hydraulic steering,power shift hydraulic operated working device.
*The full hydraulic steering system is smooth in operation, stable and reliable in performance
*Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
*High boom lifting capacity for heavy duty handing jobs.
*The bucket is equipped with automatic leveling device, so that the operation is easier.
*Big tractive force and traction device at the rear end, which meet more needs.
Detailed Specification:
|
Performance |
1 |
rated loading |
2000kg |
|
2 |
overall weight |
5800kg |
|
|
3 |
rated bucket capacity |
1.2m3 |
|
|
4 |
maximum tractive force |
54KN |
|
|
5 |
maximum breakout force |
45.4KN |
|
|
6 |
maximum grade ability |
30 |
|
|
7 |
maximum dump height |
3000mm |
|
|
8 |
maximum dump reach |
752mm |
|
|
9 |
overall dimension (L×W×H) |
5600×2100×2850mm |
|
|
10 |
minimum turning radius |
5251mm |
|
|
Engine |
11 |
model |
4105 |
|
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
|
13 |
No. of cylinder-bore/stroke |
4105×125mm |
|
|
14 |
rated power |
58kw2200r/min |
|
|
15 |
maximum torque |
270N.m |
|
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
|
Transmission system |
17 |
torque converter |
YJ280A |
|
18 |
gearbox mode |
Countershaft power-shift |
|
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
|
20 |
maximum speed |
24km/h |
|
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
|
22 |
decelerating mode |
Single stage planetary type |
|
|
23 |
wheel base (mm) |
2400mm |
|
|
24 |
wheel tread |
1640mm |
|
|
25 |
ground clearance |
310mm |
|
|
Hydraulic system |
26 |
system working pressure |
16MPa |
|
27 |
boom lifting time |
4.8s±0.2s |
|
|
28 |
total time |
9.2s±0.5s |
|
|
29 |
fuel tank capacity |
80L |
|
|
30 |
function of leveling automatically |
yes |
|
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
|
32 |
parking brake |
flexible shaft operated external drum |
|
|
Tyre |
33 |
type specification |
16/7020 |
|
34 |
front tyre pressure |
0.22Mpa |
|
|
35 |
rear tyre pressure |
0.18Mpa |

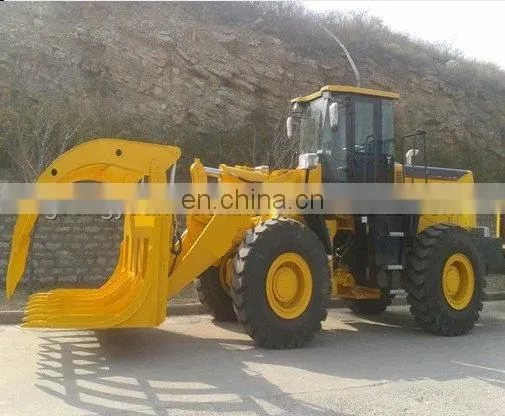

Wheel Loader with Log Grapple

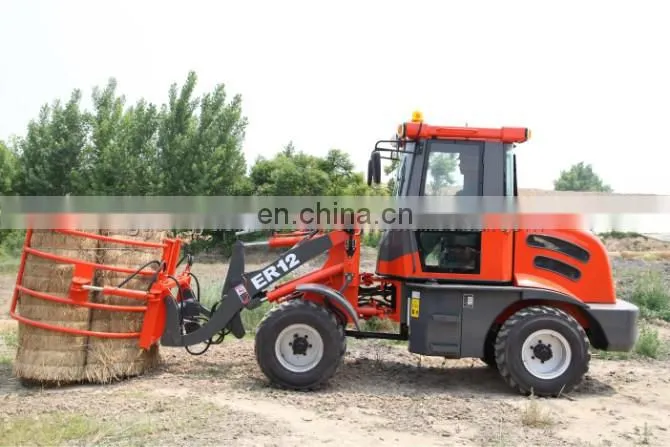

Wheel Loader with Hay Fork

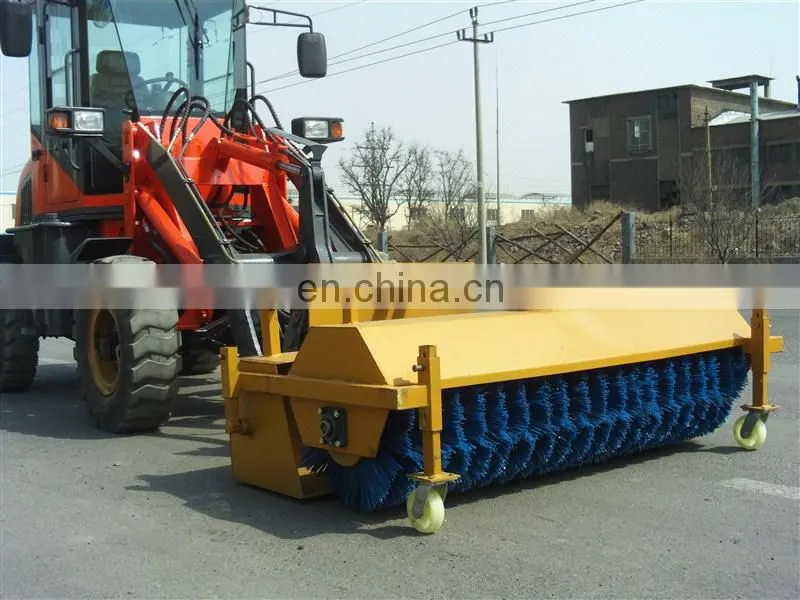

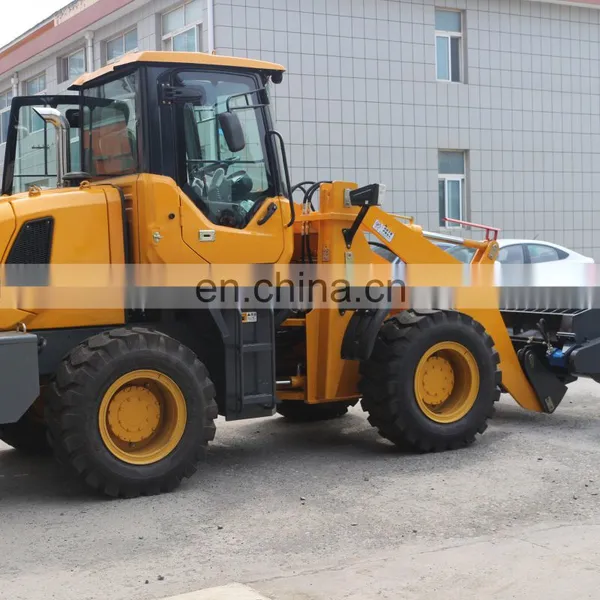

Wheel Loader with Sweeper
Wheel Loader with Post Hole Digger

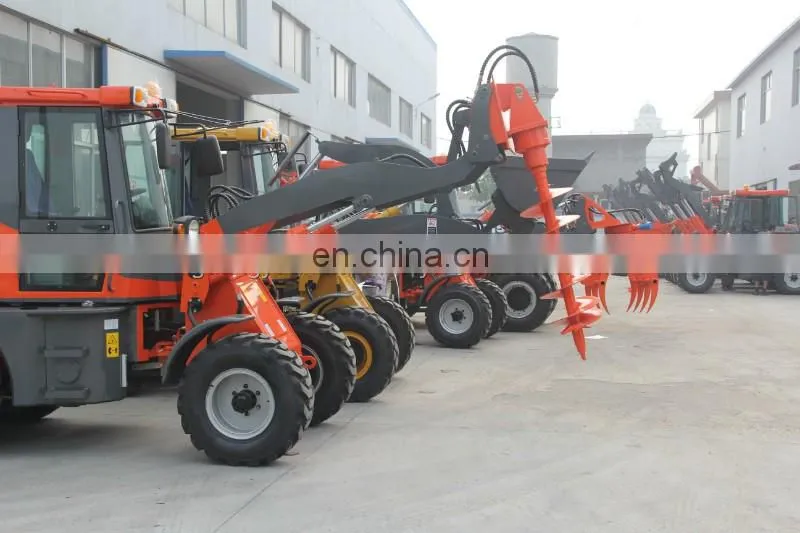

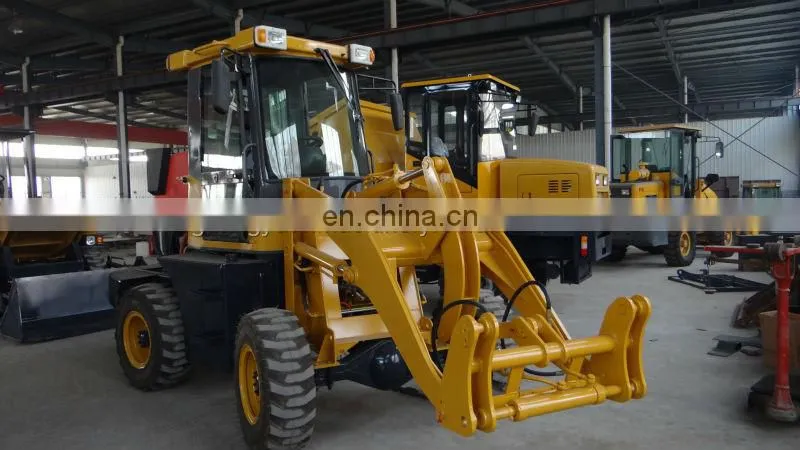

Workshop Show
Pilot Control is an Optional
Cabin Inside Picture
Quality Assurance
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
-
After-sales and Quality Warrant Contact for every purchase order.
Company Information
Company Profile
WeiFang Map Power is well-known constructional & agricultural machinery and implements exporter since 2007, and we have our own real factory- WeiFang YiShan Heavy Machinery Co., Ltd, which located in “China Machinery Town” – WeiFang city. The owners of these two companies are couplers. Our main business is as following:
- Wheel Loader Series, rated loading weight from 800kgs to 5T,such as:
Mini Type: D25, ZL06, ZL08, ZL10, ZL12,CS915,ZL16,
Middle-sited Type: WZ30-25, ZL20, CS920, ZL30,ZL50, ZL60, ZL70 etc
-
2. Farm Tractor Series, power from 20hp to 120hp ,such as: MAP254, MAP300, MAP404, MAP504, MAP704, MAP754,MAP804,MAP954,MAP1004,MAP1204 etc.
3. Site Dupers series, rated loading weight to 1T to 10T, such as: FCY10, FCY15, FCY20, FCY30, FCY50, FCY70,FCY100 etc.
4. Wheel & Crawler-type Excavator Series, such as
Map wc-45, map wc-50, map wc-70, map wc-150
Map NT-18, map NT-18A, map-45, map-85, map wd120c etc.
5. Constructional equipments, farm tools and consumable parts of all kinds. Such as pallet fork, log grapple, snow plow, hole digger, sweeper, wood chipper, lawn mover, plough, rotary tiller…etc.
With the experience in professional manufacturing and international trade, Map Power has successfully expanded our business to about 30 countries including Canada, America, Russia, Australia and west Europe and Mid-Asia etc.
Hope to have a long and good cooperation with you.
