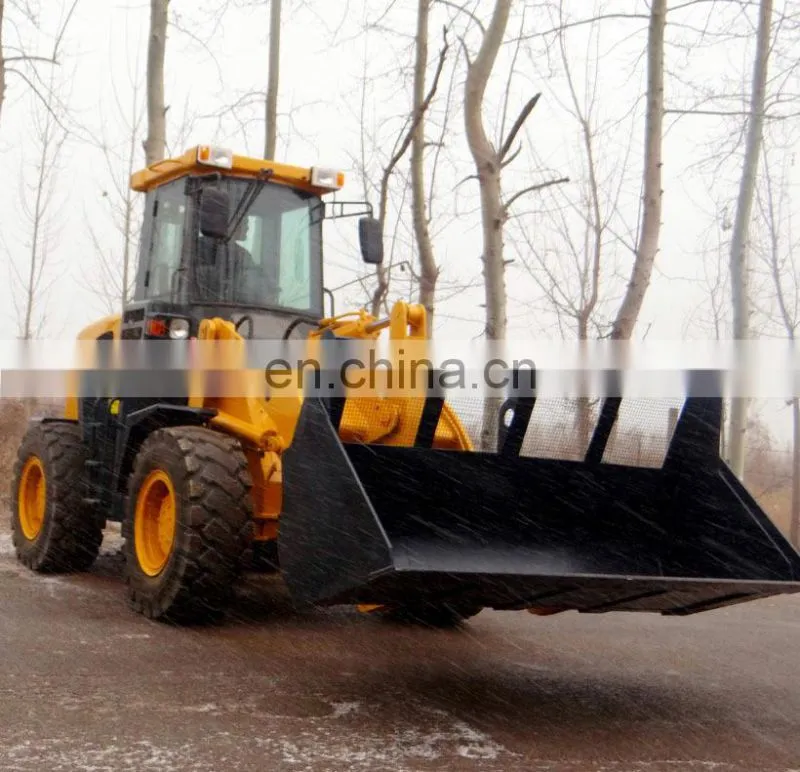

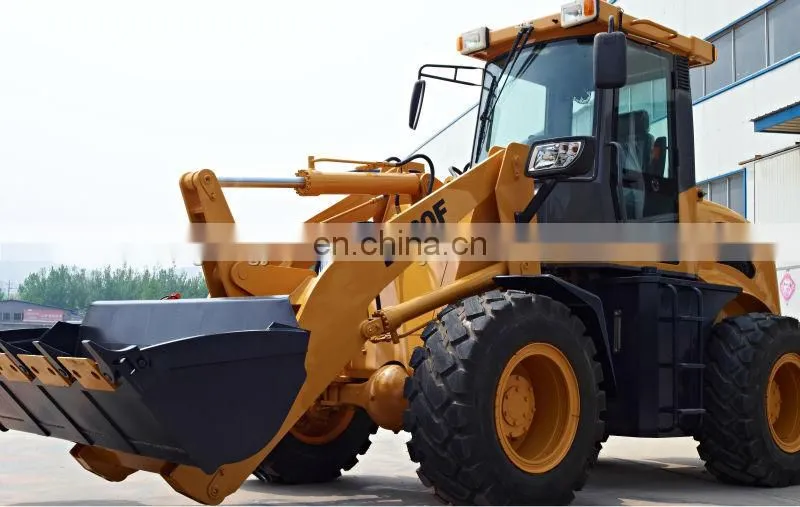

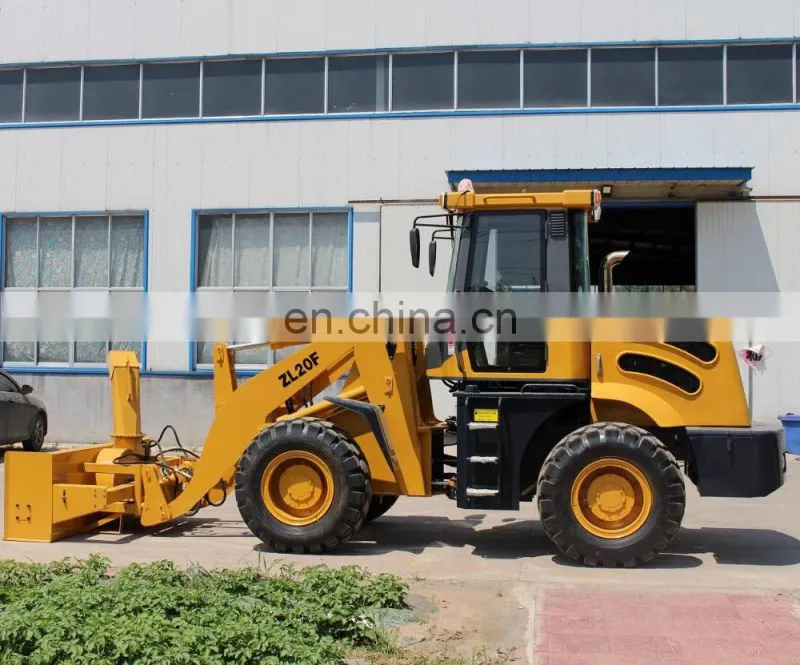

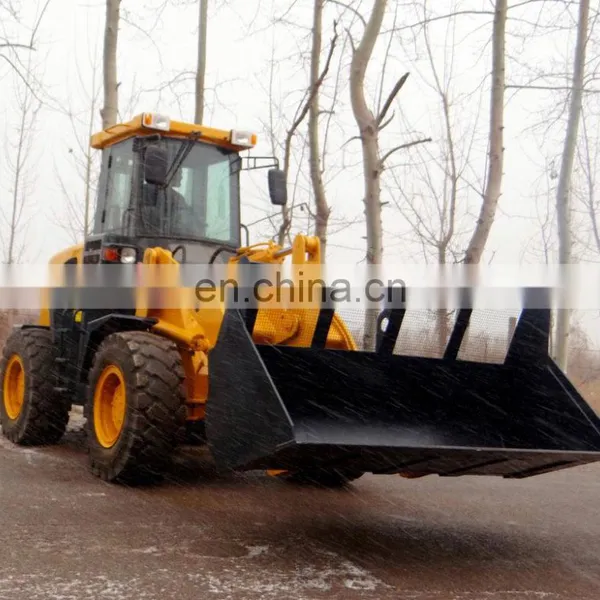

2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket

2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket thumbnail-1
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket thumbnail-2
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket thumbnail-3
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket thumbnail-4
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket thumbnail-5
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket photo-1
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket photo-2

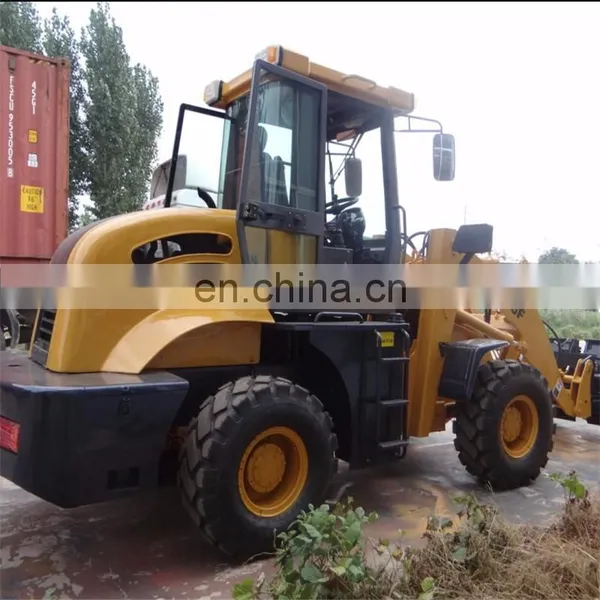

2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket photo-3

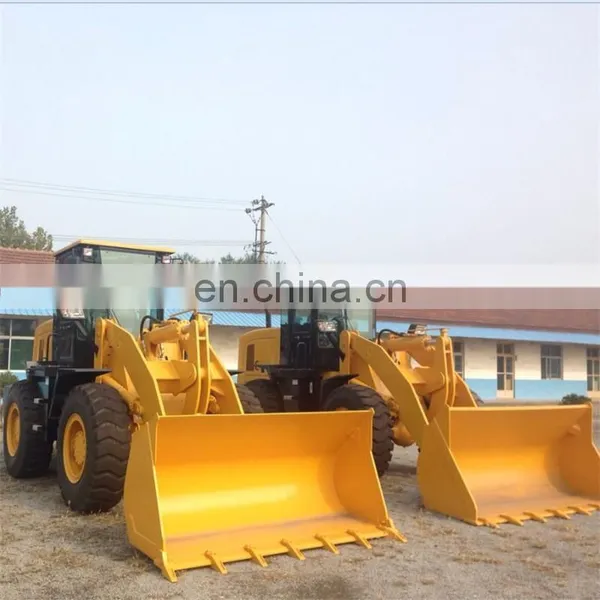

2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket photo-4
2 T 4x4 Small Front Shovel Wheel Loader ZL20F With Bigger Snow Bucket photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Weifang Map Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Real  Factory Supplies Mini Wheel Loader Series, Customer Design is Welcome and Available.







Company Information

2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket



Company Profile

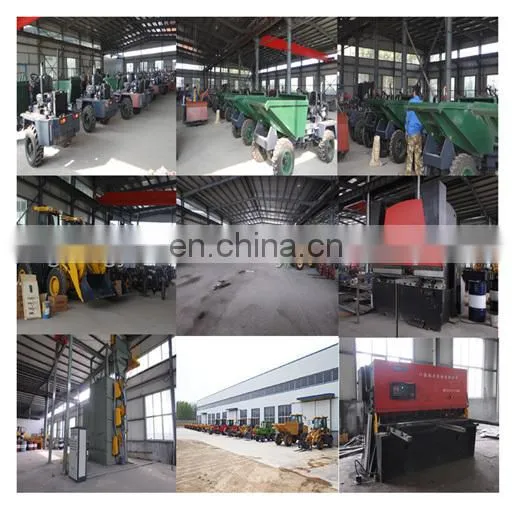

WeiFang Map Power is well-known constructional & agricultural machinery and implements exporter since 2007, and we have our own real factory- WeiFang YiShan Heavy Machinery Co., Ltd, which located in “China Machinery Town” – WeiFang city. The owners of these two companies are couplers. Our main business is as following:

  1. Wheel Loader Series, rated loading weight from 800kgs to 5T,such as:

Mini Type: D25, ZL06, ZL08, ZL10, ZL12,CS915,ZL16,

Middle-sited Type: ZL20, CS920, ZL30,ZL50, ZL60, ZL70 etc.

   2.    Farm Tractor Series, power from 20hp to 120hp ,such as: MAP254, MAP300, MAP404, MAP504, MAP704, MAP754,MAP804,MAP954,MAP1004,MAP1204 etc.

   3.    Site Dupers series, rated loading weight to 1T to 10T, such as: FCY10, FCY15, FCY20, FCY30, FCY50, FCY70,FCY100 etc.

   4.    Wheel & Crawler-type Excavator Series, such as

Map wc-45, map wc-50, map wc-70, map wc-150

Map NT-18, map NT-18A, map-45, map-85, map wd120c etc.

    5.Constructional equipments, farm tools and consumable parts of all kinds.



With the experience in professional manufacturing and international trade, Map Power has successfully expanded our business to about 30 countries including Canada, America, Russia, Australia and west Europe and Mid-Asia etc.



Hope to have a long and good cooperation with you.


Product Description



Main Descriptions for Mini Wheel Loader Series

  1. Streamlined appearance, beautiful and elegant, and can attach different tools such as: coal bucket, pipe fork, grass fork, stone bucket… to realize multifunction. Wildly used building site, coal mines, brickyard, stone materials factory, urban construction and so on.
  2. Bucket that can be set level automatically, "Z" type turning bucket structure, to realize the enormous shovel digging forces.
  3. Dual pump meeting hydraulic system can economize on oil 10%,
  4. Central articulated frame and load sensing hydraulic steering gear, short turning radius and flexible turning, can work in narrow site and has sound off-road performance, good traffic ability and larger traction.
  5. Cabin made by double-layer1.4mm steel plate with strong steel frames inside.
  6. A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.

Overall Dimension

1

Length(with bucket on ground)

5850(mm)

2.

Width(to outside of wheels)

2050(mm)

3

Height(To the top of the cab)

2860(mm)

4

Wheel base

2400(mm)

5

Tread

1640(mm)

6

Min. ground clearance

310(mm)

Main Technical Specification

1

Rated load

2000(Kg)

2

Operating weight

5800KG

3

Rated bucket capacity

1.2(CBM)

4

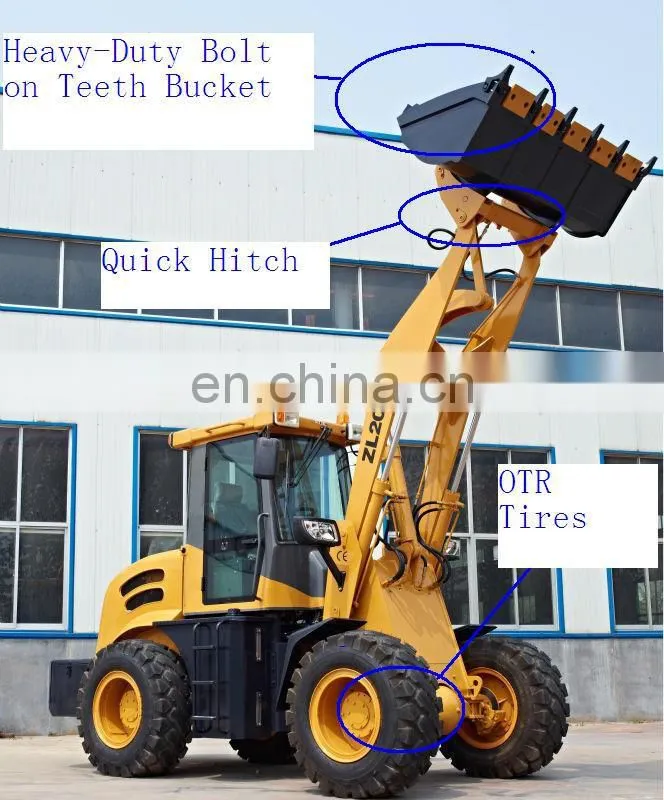

Bucket type

Heavy-duty bolt teeth

5

Max. breakout force

51kN

6

Max. dump clearance

2950(mm)

7

Min. turning radius

5251mm

8

Driving system

Hydraulic converter

9

Traveling speed(Km/h)

2 forward and 2 reverse

Diesel engine

1

Model

YTO 4108/WeiChai 4105

2

Type

In-line arrangement. Water cooling

3

Rated output

60(kW)/58KW

4

Inter-bore of cylinder/stroke

105×125mm

5

Rated speed

2400(r/min)

6

Max. Torque

275(N.M)

7

Starting type

Electric

8

Min. specific fuel consumption

235(g/Kw.h)

Transmission System

(A)Torque Converter

1

Model

YJ280

2

Type

Fixed-spindle power shift

3

Cooling type

Pressure oil circulating

(B)Transmission case

1

Model

MAP

2

Type

Power shift, spur gear constantly in mesh

3

Gear shift position

2 Forward and 2 reverse gears

(C)Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Size of tire

20.5/70-16,16.70-20 for optional

Brake system

1

Service brake

Air assisted oil on four wheel

2

Parking brake

Hand operated

Steering System

1

Type

Middle articulated frame with hydraulic power steering

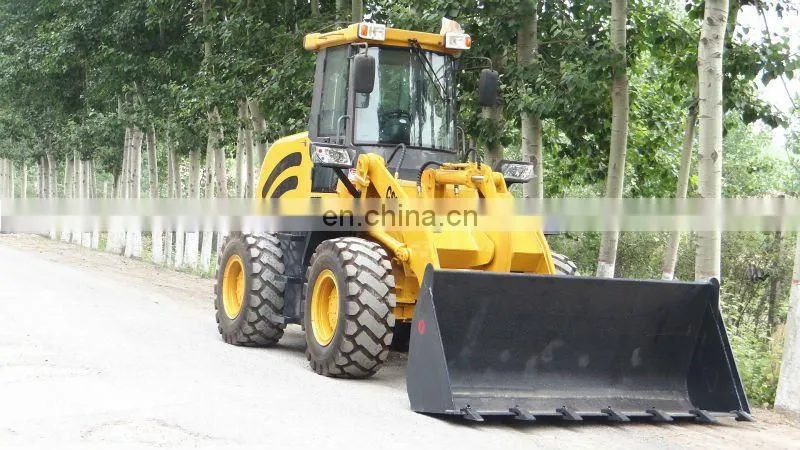

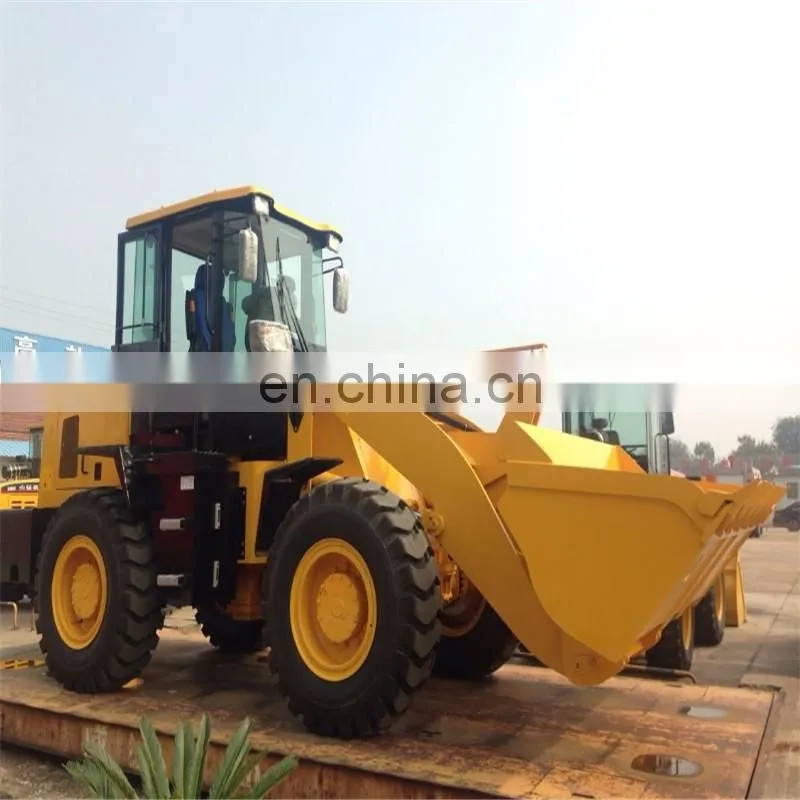

 2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket

 2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket





 2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket
Packaging & Shipping
  2 T 4x4 Small Front Shovel Wheel Loader ZL20F with bigger snow bucket




Our Services



Quality Assurance

  1. Have established and implemented a standard procedure for quality management system and product certification.
  2. QA/QC inspectors work independently form the production lines
  3. Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
  4. A procedure to conducting random inspection after final packaging.
  5. A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
  6. Tool case and partly consumable accessories attached with shipment meanwhile
  7. After-sales and Quality Warrant Contact for every purchase order.
