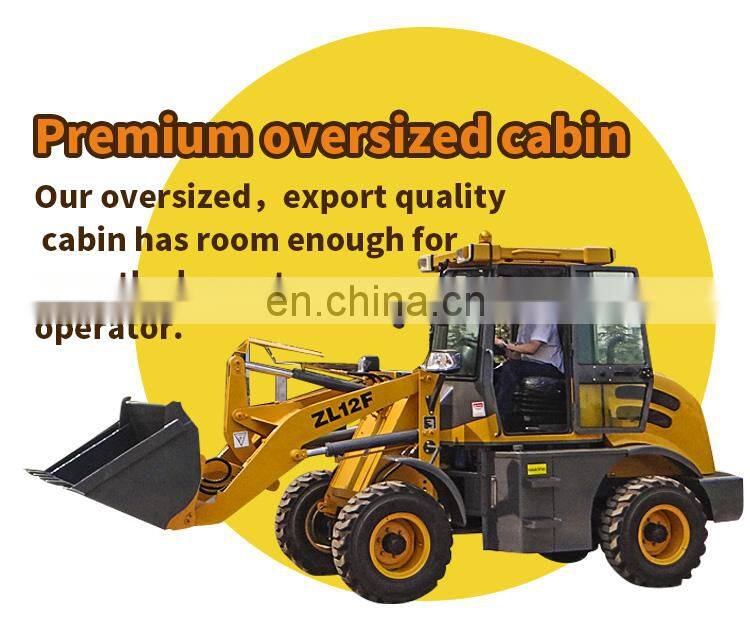

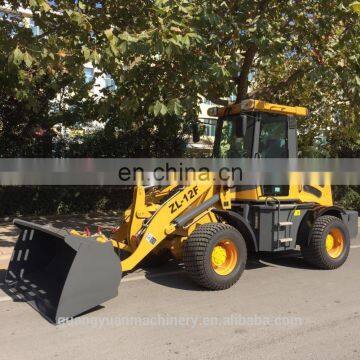

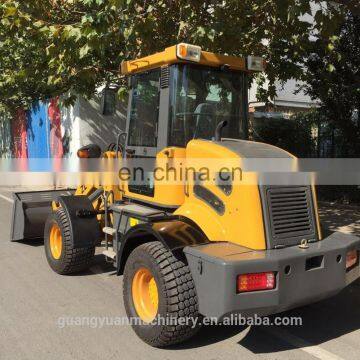

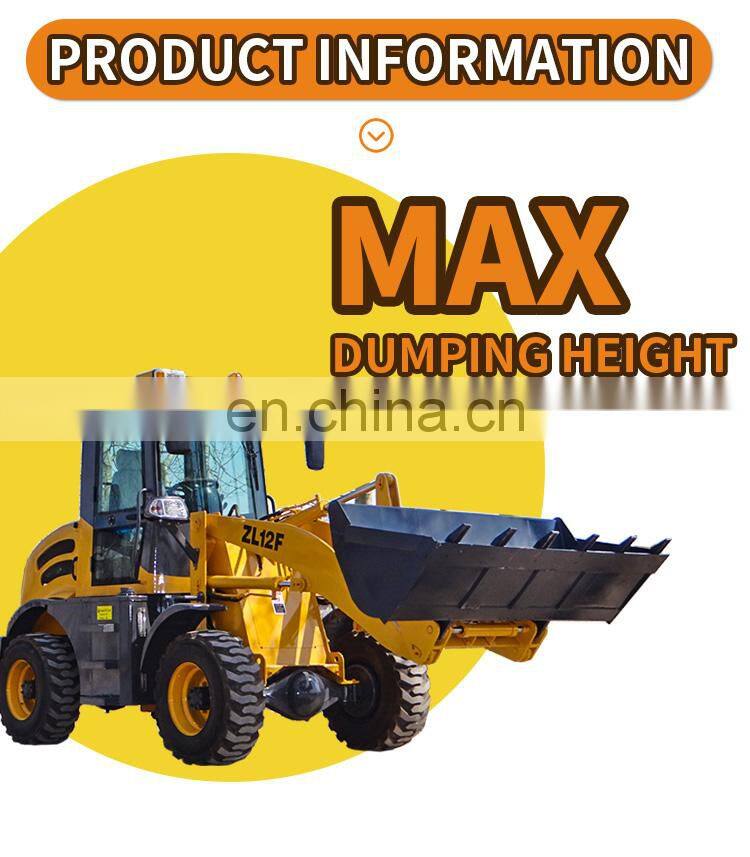

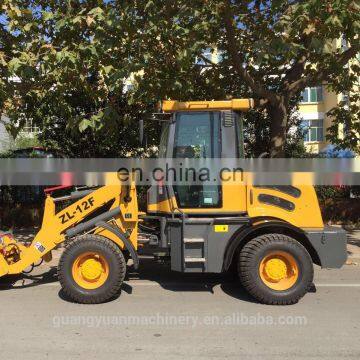

1.2T hydraulic mini wheel loader ZL12F with Snow tires
Loader 1.Engine:Changchai 4L68
Loader 2.Rated load:1200Kg/1.2Ton
Loader 3.Front discharge
Loader 4.Full hydraulic
Loader 5.Preheating and warmer cabin
Loader 6.Floating function
Weifang Map Power Co., Ltd.,is a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
4800(mm) |
|
2. |
Width(to outside of wheels) |
1730(mm) |
|
3 |
Bucket width |
1700(mm) |
|
4 |
Height(To the top of the cab) |
2720(mm) |
|
5 |
Wheel base |
2060(mm) |
|
6 |
Tread |
1400(mm) |
|
7 |
Min. ground clearance |
210(mm) |
|
Main Technical Specification |
||
|
1 |
Rated load |
1200(Kg) |
|
2 |
Operating weight |
3100KG |
|
3 |
Rated bucket capacity |
0.50(CBM) |
|
4 |
Bucket type |
Heavy-duty bolt teeth |
|
5 |
Max. breakout force |
36kN |
|
6 |
Max. dump clearance |
2650(mm) |
|
7 |
Min. turning radius |
4500mm |
|
8 |
Driving system |
Hydraulic converter |
|
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
|
(1) 1st gear forward |
5.75 |
|
|
(2) 2nd gear forward |
23.86 |
|
|
(3) 1st gear reverse 5.85 |
5.85 |
|
|
(3) 2nd gear reverse |
24 |
|
Diesel engine |
||
|
1 |
Model |
Changchai 4L68 |
|
2 |
Type |
In-line arrangement. Water cooling |
|
3 |
Rated output |
37 (kW) |
|
4 |
Inter-bore of cylinder/stroke |
95 (mm) |
|
5 |
Rated speed |
2300(r/min) |
|
6 |
Max. Torque |
275(N.M) |
|
7 |
Starting type |
Electric |
|
8 |
Min. fuel consumption |
230(g/Kw.h) |
|
9 |
Net weight |
240(kg) |
|
Transmission System |
||
|
(A)Torque Converter |
||
|
1 |
Model |
YJ240 |
|
2 |
Type |
Fixed-spindle power shift |
|
3 |
Cooling type |
Pressure oil circulating |
|
(B)Transmission case |
||
|
1 |
Model |
MAP |
|
2 |
Type |
Power shift, spur gear constantly in mesh |
|
3 |
Gear shift position |
2 Forward and 2 reverse gears |
|
(C)Axle and Tire |
||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|
2 |
Size of tire |
1100-16(12-16.5 for optional) |
|
Brake system |
||
|
1 |
Service brake |
4 wheel hydraulic brake |
|
2 |
Parking brake |
Hand operated |
|
Steering System |
||
|
1 |
Type |
Middle articulated frame with hydraulic power steering |
