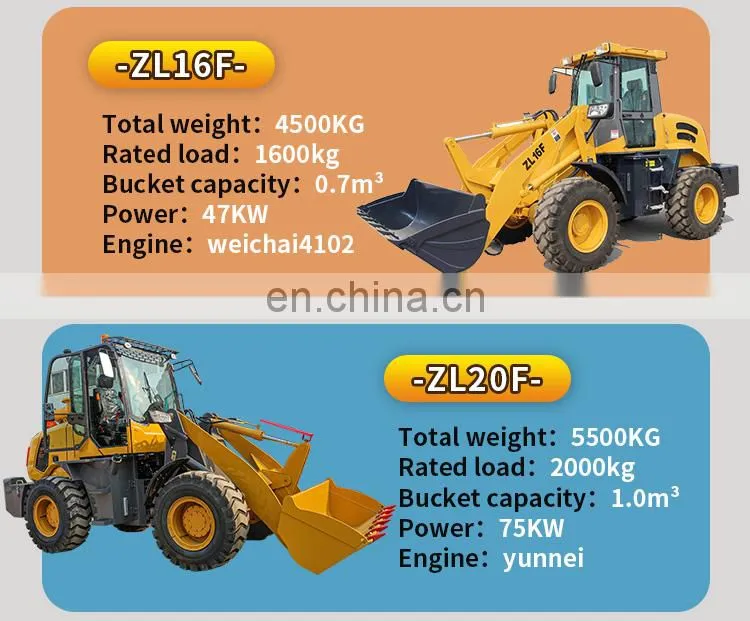

ZL16F 4x4 Drive Hydraulic Small Wheel Loader/1.6ton Loader With Quick Hitch for SaleNegotiableMOQ: 1
ZL20F 2 TON Wheel Loader
Earth moving machine wheel loader ZL20F specifications
| Wheel loader ZL20F | |
| Overall Dimension | |
| Length(with bucket on ground) | 4850(mm) |
| Bucket width | 2050(mm) |
| Height(To the top of the cab) | 2860(mm) |
| Wheel base | 2400(mm) |
| Tread | 1640(mm) |
| Main Technical Specification | |
| Rated load | 2000(Kg) |
| Operating weight | 5200KG |
| Rated bucket capacity | 0.9CBM) |
| Bucket type | Heavy-duty bolt teeth |
| Max. breakout force | 51kN |
| Driving system | Hydraulic converter |
| Total time | 8s |
| Diesel engine details | |
| Model | 4108 |
| Type |
In-line arrangement. Water cooling 4 cylinders diesel engine |
| Rated output | 60(kW) |
| Rated speed | 2400(r/min) |
| Max. Torque | 275(N.M) |
| Starting type | Electric |
| Min. specific fuel consumption | 162(g/Kw.h) |
| Net weight | 235(kg) |
| Transmission System | |
| Hydraulic Torque Converter model | YJ265 |
| Type | Fixed-spindle power shift |
| Cooling type | Pressure oil circulating |
| Transmission case | power shift, spur gear constantly in mesh |
| Gear shift position | 2 Forward and 2 reverse gears |
| Brake system | |
| Service brake | Air assisted oil on four wheel |
| Parking brake | Hand operated |
| Steering System | |
| Type | Middle articulated frame with hydraulic power steering |
| Axle and Tire | |
| Type of main reducer | spiral bevel gear, single stage |
| Size of tire | 16/70-20 |
| Performance and characteristic | |
|

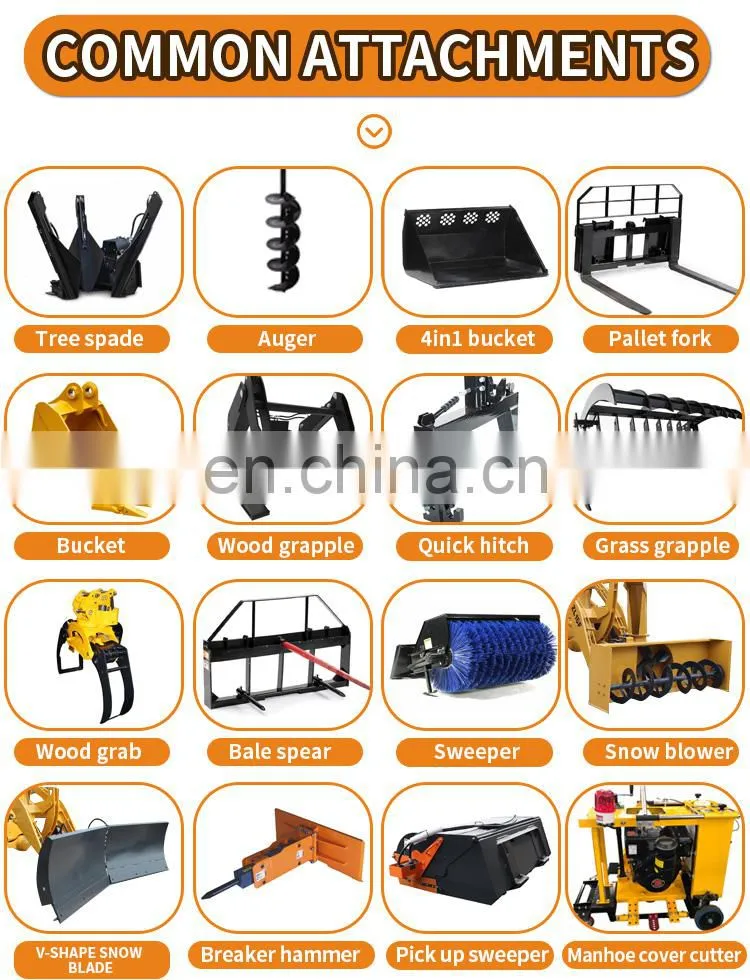

1. High quality hydraulic gearbox and driving axle. rock bucket, bigger bucket, snow bucket, mixing bucket etc |
|
Packaging & Shipping
Company informations
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
