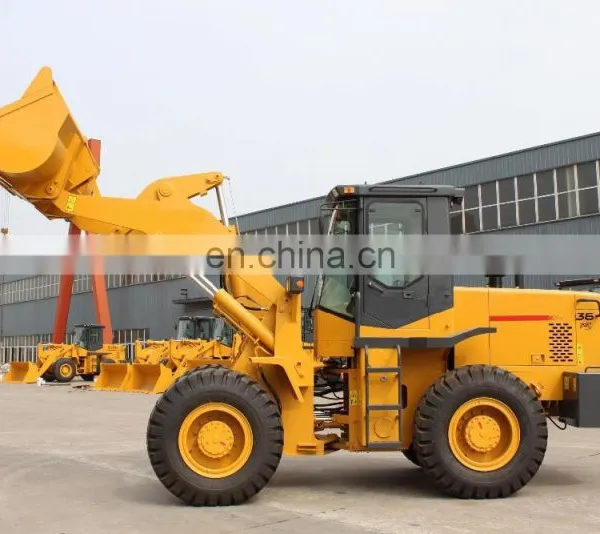

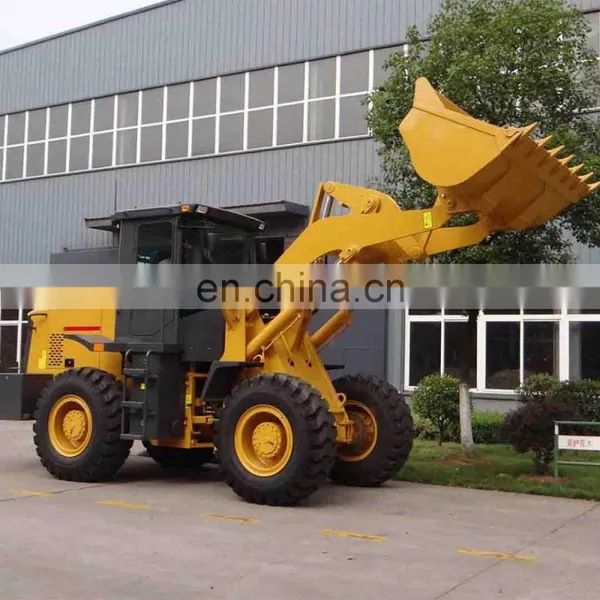

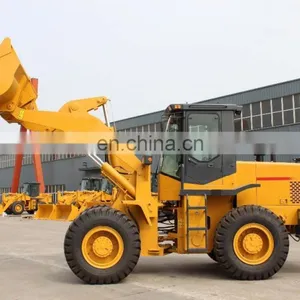

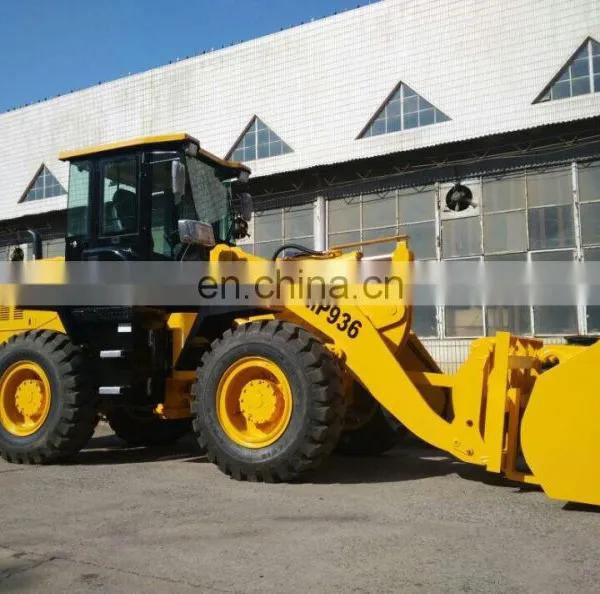

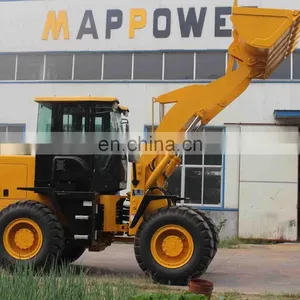

Help Center3.0ton Ship Cargo Hold Cleaning Wheel Loader, Harbor Dedicated Loader
Related Products
-
ZL20 2ton Shovel Loader With Snow Blower 4 in 1bucket and ForkNegotiableMOQ: 1 -
Earth Moving Construction Machinery 1.5ton Mini Front End Wheel Loader With Wider TiresNegotiableMOQ: 1
-
2ton Low Price Professional Mini Farm/construction Wheel Loader Container MachineNegotiableMOQ: 1
-
New Design Hydraulic Fram Mini 2.0ton Wheel Loader With Cheap PriceNegotiableMOQ: 1
-
ZL08 0.8ton Good Quality Articulated Mini Wheel Loader Backhoe With CE CertificateNegotiableMOQ: 1
ZL30F 3 TON Wheel Loader
Wheel Loader ZL30F Specifications
| Wheel loader ZL30F | |
| Overall Dimension | |
| Length(with bucket on ground) | 7050(mm) |
| Bucket width | 2430(mm) |
| Height(To the top of the cab) | 3120(mm) |
| Wheel base | 2760(mm) |
| Tread | 1800(mm) |
| Main Technical Specification | |
| Rated load | 3000(Kg) |
| Operating weight | 10000KG |
| Rated bucket capacity | 1.7(CBM) |
| Max. breakout force | 135kN |
| Total time | 8s |
| Diesel engine details | |
| Model | Deutz WP6G126E22I |
| Type | In-line arrangement. Water cooling |
| Rated output | 92(kW) |
| Rated speed | 2300(r/min) |
| Max. Torque | 860(N.M) |
| Starting type | Electric |
| Min. specific fuel consumption | 162(g/Kw.h) |
| Net weight | 380(kg) |
| Transmission System | |
| Hydraulic Torque Converter model | YJ320B-1 |
| Type | Full-powershift,countershaft type |
| Cooling type | Pressure oil circulating |
| Transmission case | power shift, spur gear constantly in mesh |
| Gear shift position | 2 Forward and 2 reverse gears |
| Oil Capacity | |
| Fuel(diesel) | 80(L) |
| Engine lubricating oil | 16(L) |
| Oil for converter and gear box | 20(L) |
| Oil for hydraulic system | 100(L) |
| Oil for driving axles | 26(L) |
| Axle and Tire | |
| Axle | Laiyang(China famous brand) |
| Main reducer pattern | Arc taper gear,modelration of first grade |
| Pattern of wheel side moderation | Single stage planetary |
| Size of tire | 17.5-25 |
| Performance and characteristic | |
|
1. High quality hydraulic gearbox and driving axle. 2. Choose best hydraulic components, pilot operation, easy and durable. 3. Strong and durable frame, have the automatic flat function in high place. 4. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc 5. Luxurious cab, cab rollover, easy to keep and operate. 6. Changeable luxurious meter, air conditioner, more comfortable for driving. 7. High pressure and safer air assist disc brake braking system. 8. According to clients request, customize higher dumping and longer arm products. |
|

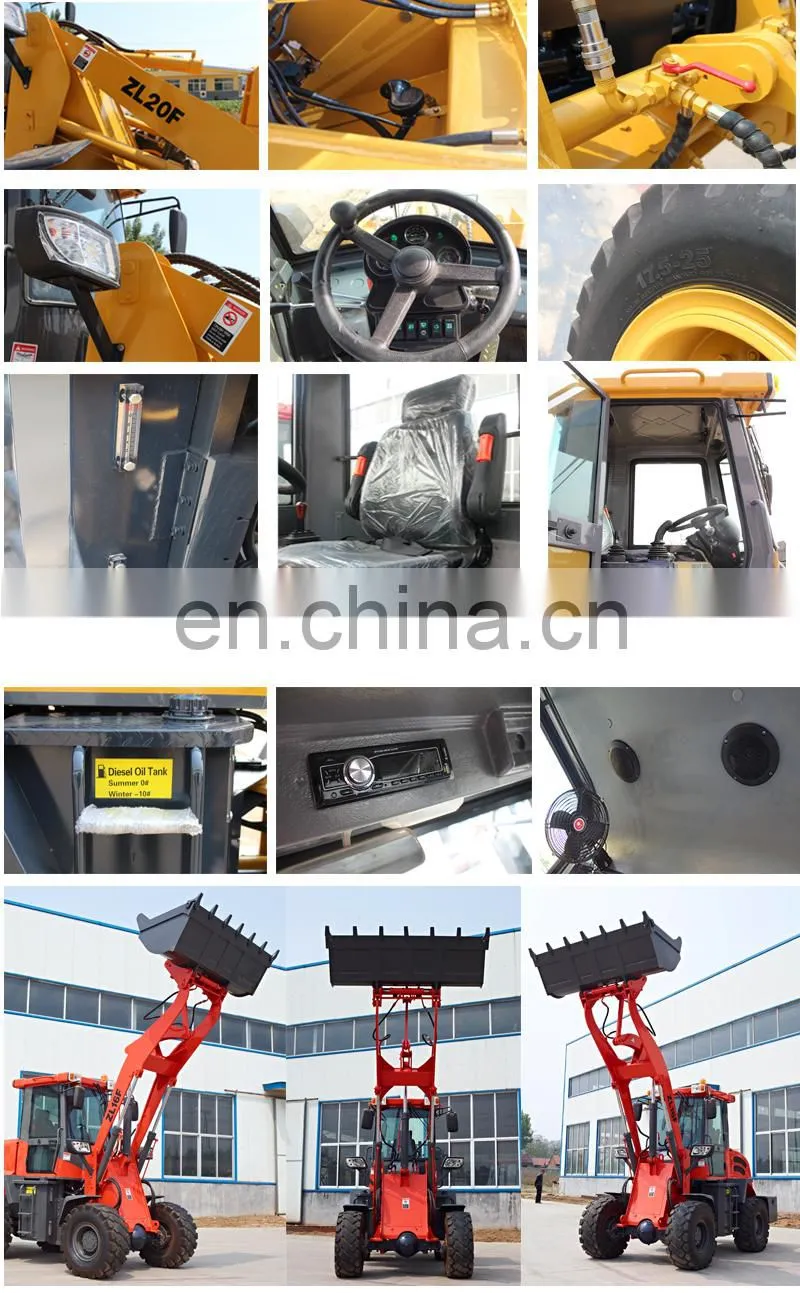

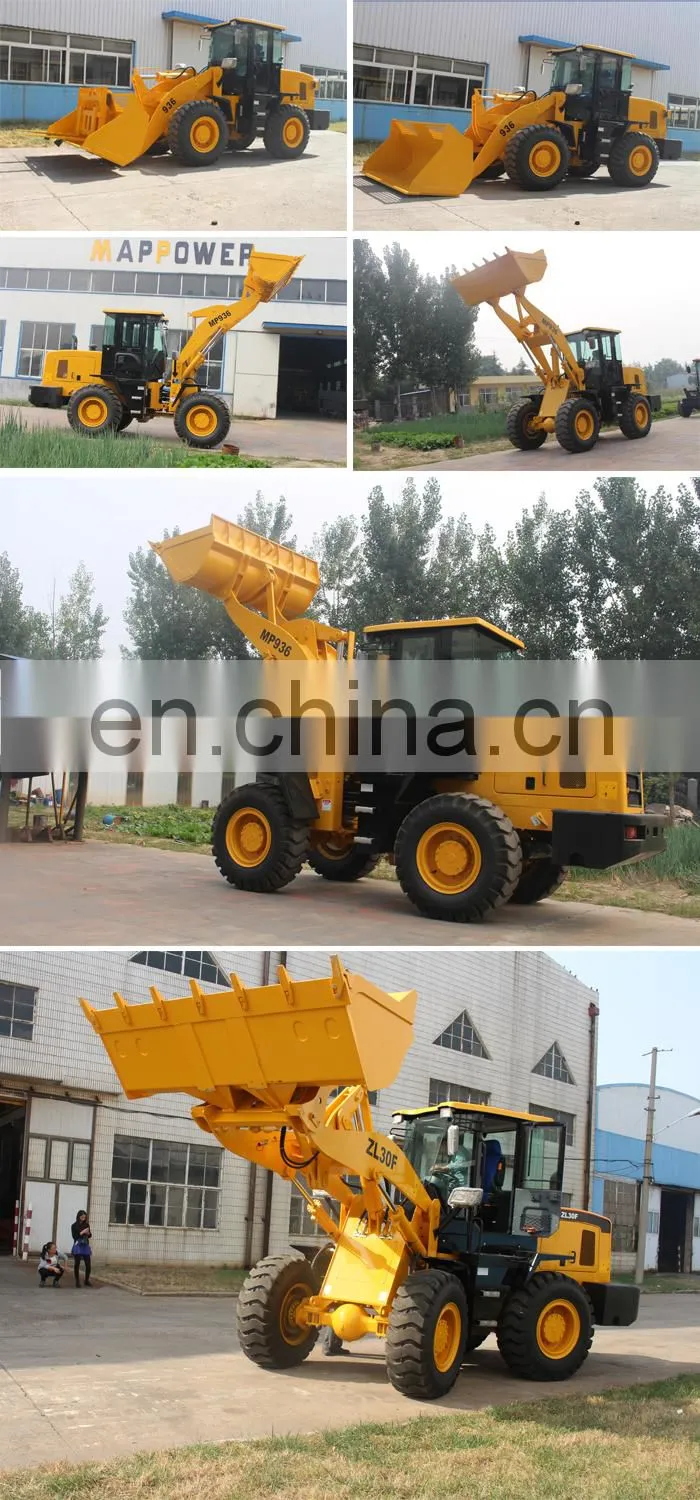

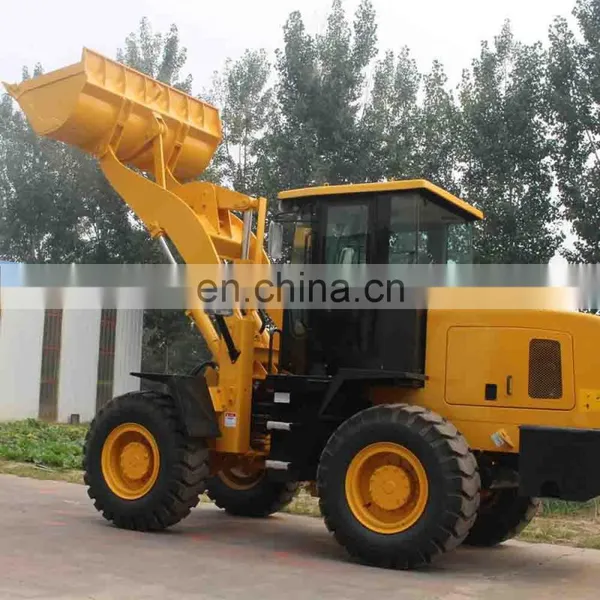

The details of wheel loader

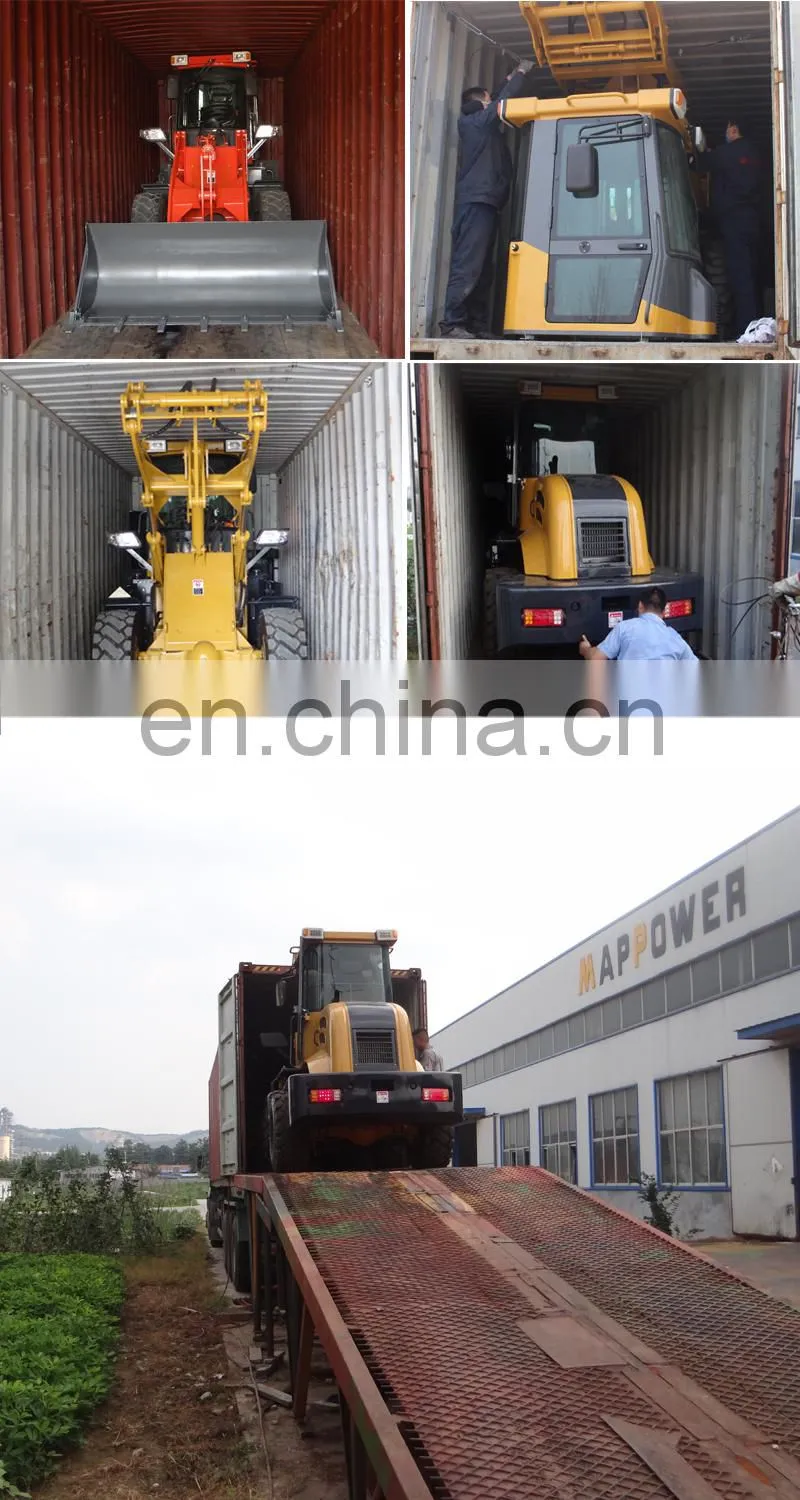

Packaging & Shipping
Company informations
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
