Home > Instruments & Meters > Analysis Instrument > pH Meter > PH-C6501 Industrial On-line PH/ORP Meter PH Meter

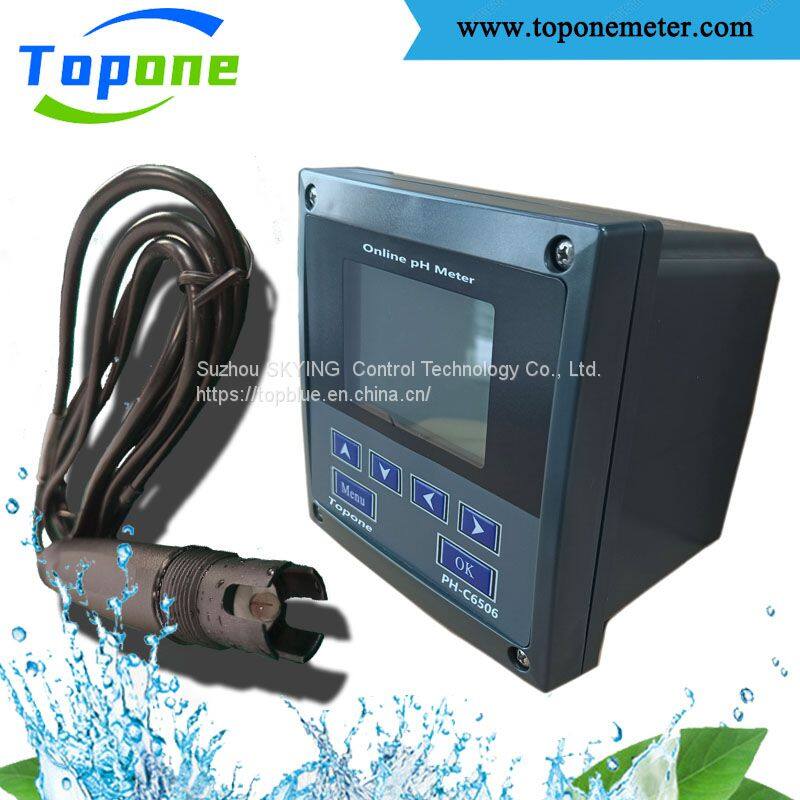

PH-C6501 Industrial On-line PH/ORP Meter PH Meter
US$ 250 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
lanben/OEM
Place of Origin:
China
Model Number:
PH-C6501
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
S7010PH/ORP Industrial Automatic Online Ph/ORP MeterUS$ 220 - 400MOQ: 1 Piece -
PHDC105 pH Sensor For Common Water Quality,general UseUS$ 46 - 96MOQ: 1 Piece
-
PHDC205 pH Sensor Designed for Common Water QualityUS$ 60 - 90MOQ: 1 Piece
-
PHDC113 pH Sensor Designed for Seawater EnvironmentUS$ 138 - 238MOQ: 1 Piece
-
PHDC115 pH Sensor Sewage Chemical Industry Complex EnvironmentUS$ 150 - 200MOQ: 1 Piece
Brand Name
lanben/OEM
Place of Origin
China
Model Number
PH-C6501
PH-C6501 Industrial On-line PH/ORP Meter
Applications：
Industrial online pH/ORP meter is a microprocessor
-based water quality online monitoring control
instrument. The instrument equipped with different
types of pH or ORP electrode. It is widely used in
power plants, petrochemical industry, metallurgical
electronics, mining industry, paper industry, biological
fermentation engineering, medicine, food and beverage,
water treatment, aquaculture, modern agricultural
planting and other industries. Continuously monitor
and control pH value, ORP value and temperature
of aqueous solution.
Feature：
● LCD display
● Intelligent menu operation
● Multiple automatic calibration
● Differential signal measurement mode,stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● 420mA & RS485,Multiple output modes
● Multi parameter display simultaneously shows -pH/ ORP, Temp, current,etc.
● High & low alarm and hysteresis control.
● The matching installation accessories make theinstallation of the controller in complex workingconditions more stable and reliable.
● Password protection to prevent misoperationby non-staff.
Technical parameters:
Measurement range：pH：-2～16.00pH；
ORP：－2000～＋2000mV；
Temp：-10～150.0℃；
Resolution： pH：0.001pH；
ORP：1mV； Temp：0.1℃；
Basic error：pH：±0.01pH；
ORP：±1mV； Temp：±0.3℃；
Stability： pH:≤0.01pH/24h；
ORP: ≤1mV/24h；
Two current outputs：
0/4～20mA(load resistance＜750Ω)；
20～4mA(load resistance＜750Ω)；
Communication output: ： RS485 MODBUS RTU；
Three groups of relay control contacts:
5A 250VAC，5A 30VDC；
Power supply (optional)：
85～265VAC±10%,50±1Hz，
Power ≤3W；9～36VDC，
Power ：≤3W；
Overall dimension：144×144×118mm；
Installation mode: panel, wall hanging, pipe type;
Panel opening size：138×138mm；
Waterproof grade： IP65；
Instrument weight： 0.8kg；
Instrument working environment：
Environment temperature ：-10～60℃；
Relative humidity：≦90%；
In addition to the earth's magnetic field around
no strong magnetic interference
