Home > Instruments & Meters > Analysis Instrument > pH Meter > S7010PH/ORP Industrial Automatic Online Ph/ORP Meter

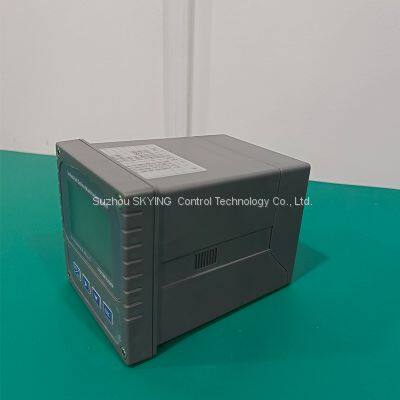

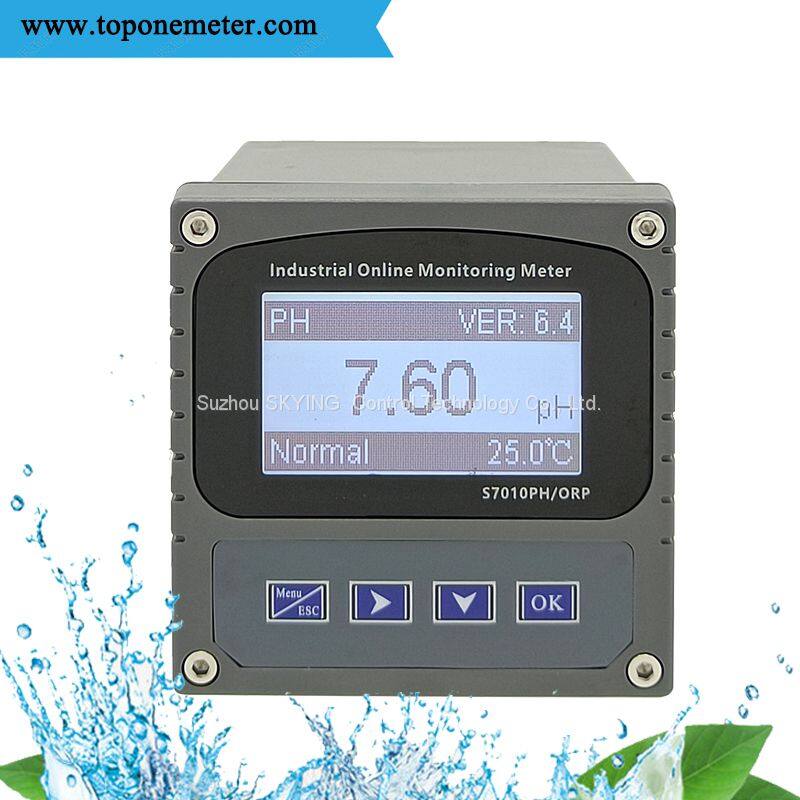

S7010PH/ORP Industrial Automatic Online Ph/ORP Meter
US$ 220 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
lanben/OEM
Place of Origin:
China
Model Number:
S7010PH/ORP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PHDC105 pH Sensor For Common Water Quality,general UseUS$ 46 - 96MOQ: 1 Piece -
PHDC205 pH Sensor Designed for Common Water QualityUS$ 60 - 90MOQ: 1 Piece
-
PHDC113 pH Sensor Designed for Seawater EnvironmentUS$ 138 - 238MOQ: 1 Piece
-
PHDC115 pH Sensor Sewage Chemical Industry Complex EnvironmentUS$ 150 - 200MOQ: 1 Piece
-
PHDC515 pH Sensor Online Moist Soil MeasurementUS$ 150 - 250MOQ: 1 Piece
Brand Name
lanben/OEM
Place of Origin
China
Model Number
S7010PH/ORP
S7010PH/ORP Industrial On-line PH/ORP Meter
Applications:
Industrial online pH/ORP meter is a microprocessor
-based water quality online monitoring control
instrument. The instrument equipped with different
types of pH or ORP electrode. It is widely used in
power plants, petrochemical industry, metallurgical
electronics, mining industry, paper industry,
biological fermentation engineering, medicine,
food and beverage, water treatment, aquaculture,
modern agricultural planting and other industries.
Continuously monitor and control pH value, ORP
value and temperature of aqueous solution.
Feature:
● LCD display
● Intelligent menu operation
● Multiple automatic calibration
● Differential signal measurement mode,stable and reliable
● Manual and automatic temperature compensation
● Two relay control switches
● Multi parameter display simultaneously shows -pH/ ORP, Temp, current,etc.
● High & low alarm and hysteresis control.

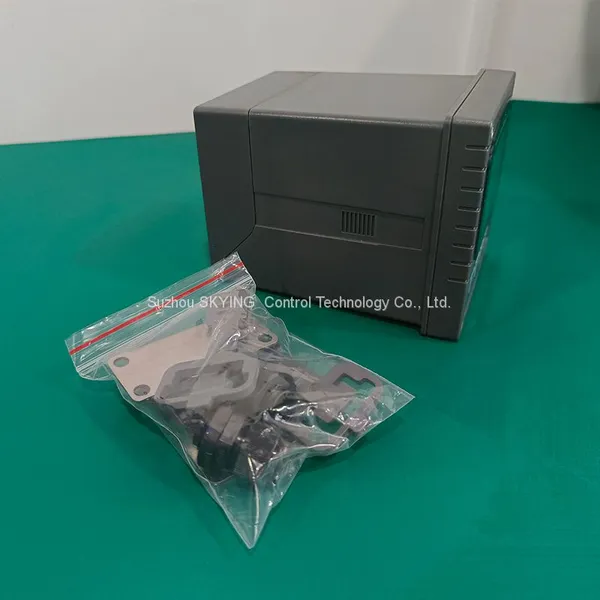

● The matching installation accessories make theinstallation of the controller in complex workingconditions more stable and reliable.
● Password protection to prevent misoperationby non-staff
Technical parameters:
Measurement range：
PH：0～14.00PH；
ORP：－1500～＋1500MV；
Temp：-10～150.0℃；
Resolution： PH：0.01PH；ORP：1MV；
Temp：0.1℃；
Basic error：PH：±0.02PH；ORP：±2MV；
Temp：±0.3℃；
Stability： PH:≤0.02PH/24H；
ORP: ≤2MV/24H；
Two current outputs：
0/4～20mA(load resistance＜750Ω)；
20～4mA(load resistance＜750Ω)；
Communication output: ：RS485 MODBUS RTU；
Two groups of relay control contacts：
3A 250VAC，3A 30VDC；
Power supply (optional)：
85～265VAC±10%,50±1Hz，
Power ≤3W；9～36VDC，
Power ：≤3W；
Overall dimension：98×98×130MM；
Installation mode: panel, wall hanging,
Panel opening size：93×93MM；
Waterproof grade： IP65；
Instrument weight：0.6KG；
Instrument working environment：
Environment temperature ：-10～60℃；
Relative humidity：≦90%；
In addition to the earth's magnetic field around
no strong magnetic interference
