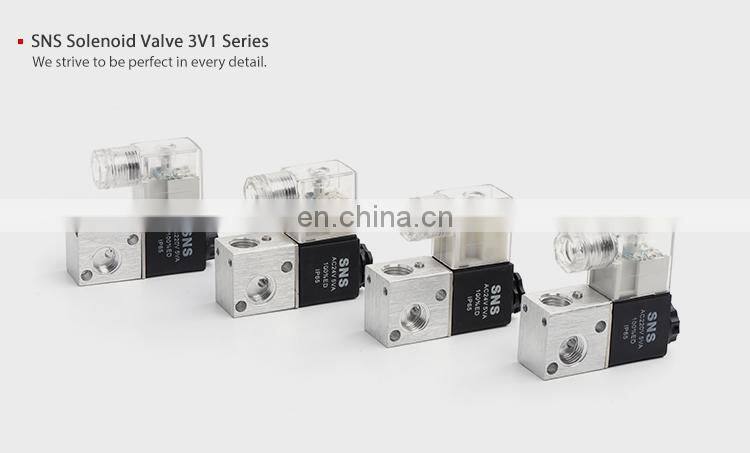

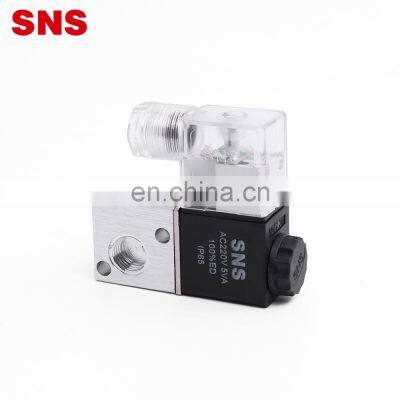

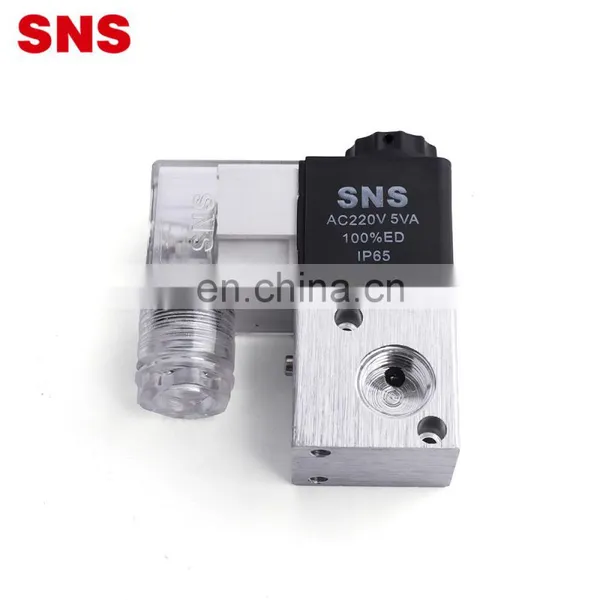

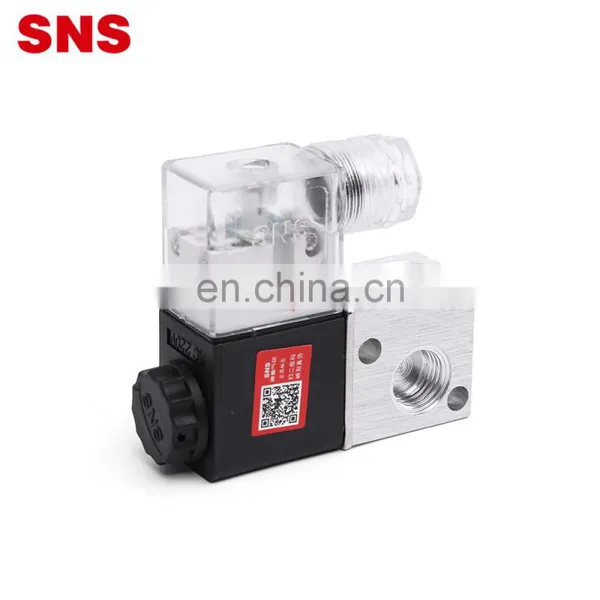

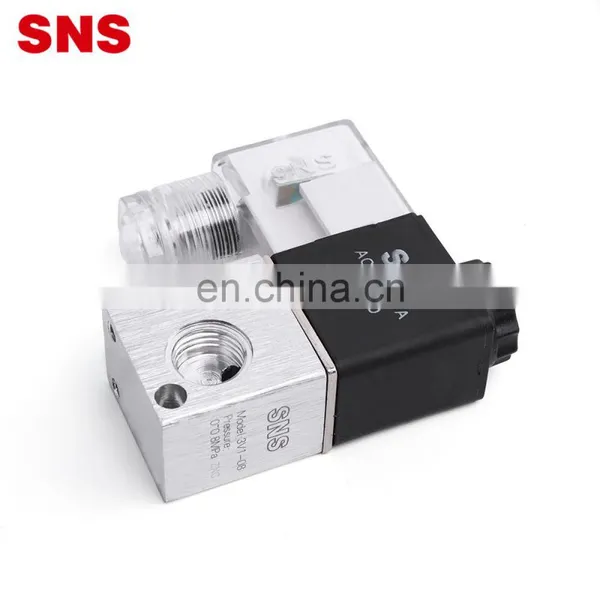

SNS 3V1 Series DC24V normal closed hydraulic pneumatic 2 position 3 way control solenoid valve
| Model | 3V1-06 | 3V1-08 | |
| Medium | Air | ||
| Action Mode | Direct-acting Type | ||
| Type | Normal Closed | ||
| Port Diameter | 1.0mm | ||
| Working Pressure | 0.15~0.8MPa | ||
| Proof Pressure | 1.0MPa | ||
| Temperature | 0~60℃ | ||
| Working Voltage Range | ±10% | ||
| Material | Body | Aluminum Alloy | |
| Seal | NBR | ||

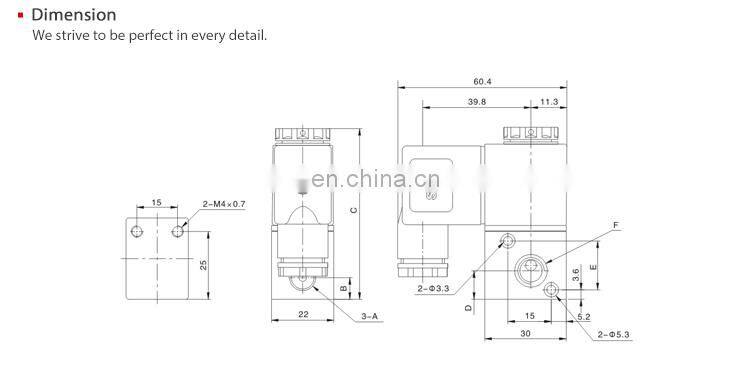

| Model | A | B | C | D | E | F |
| 3V1-06 | G1/8 | 8 | 63.5 | 11 | 17 | 12 |

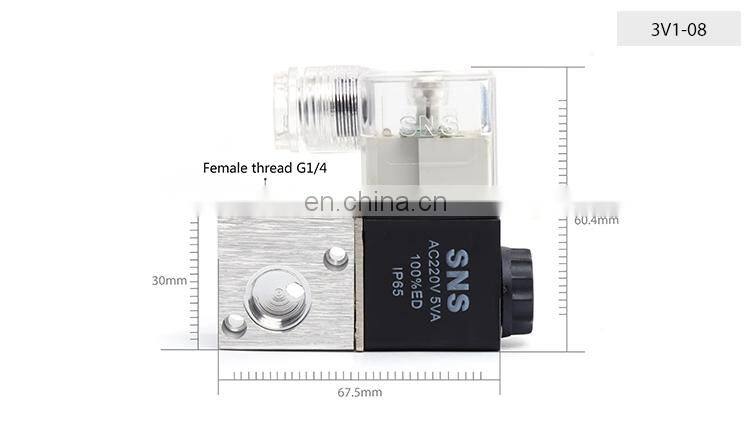

| 3V1-08 | G1/4 | 10 | 67.5 | 12.8 | 21.5 | 14.5 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.

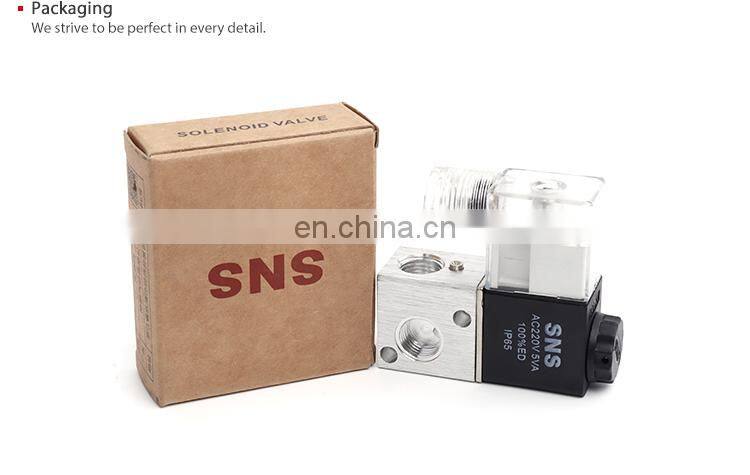

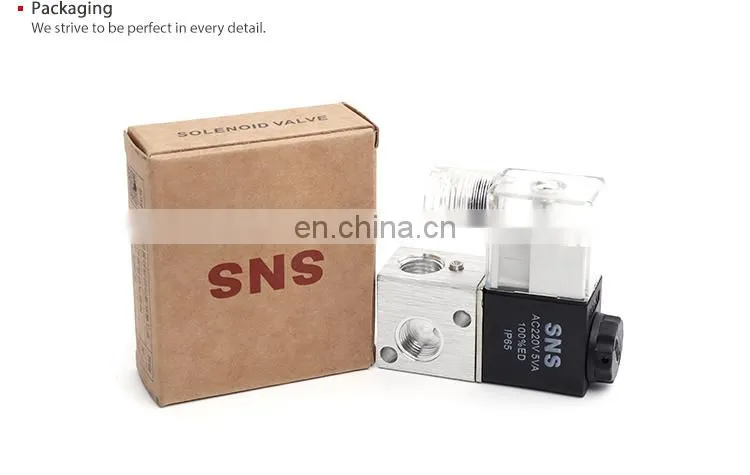

Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
