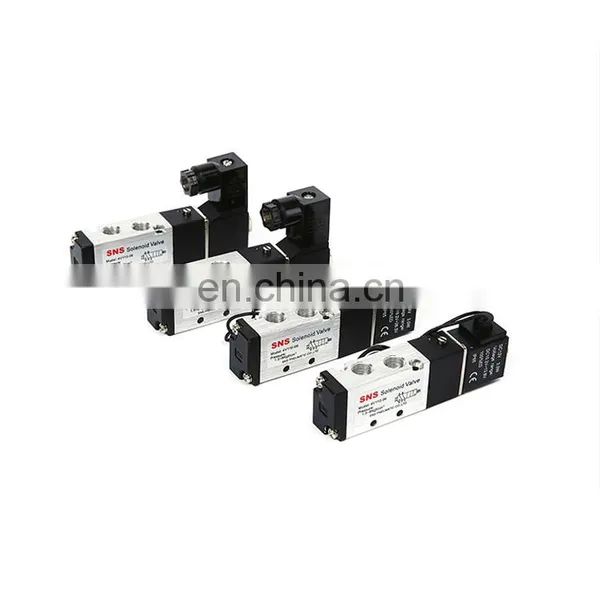

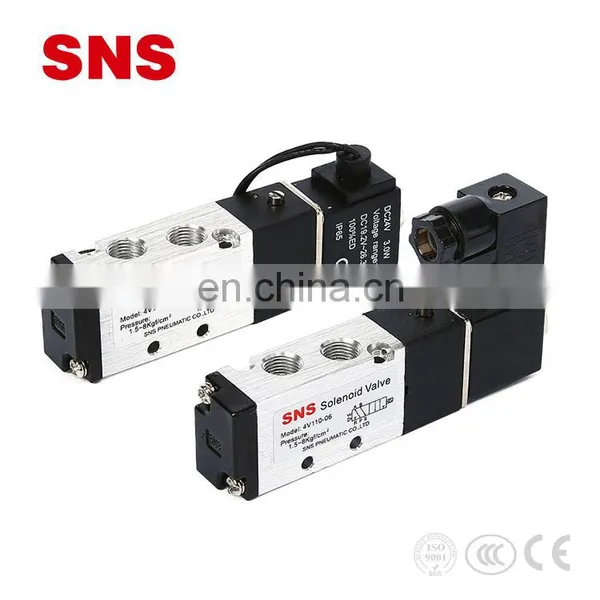

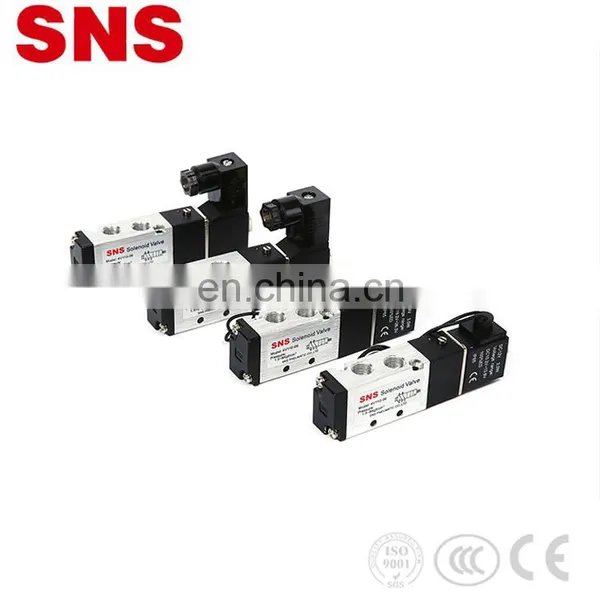

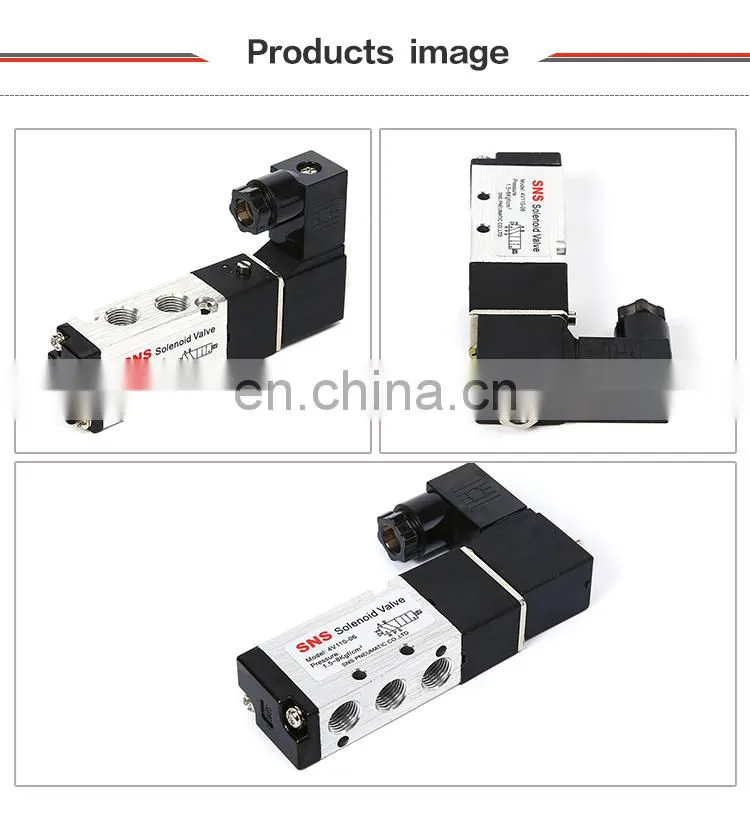

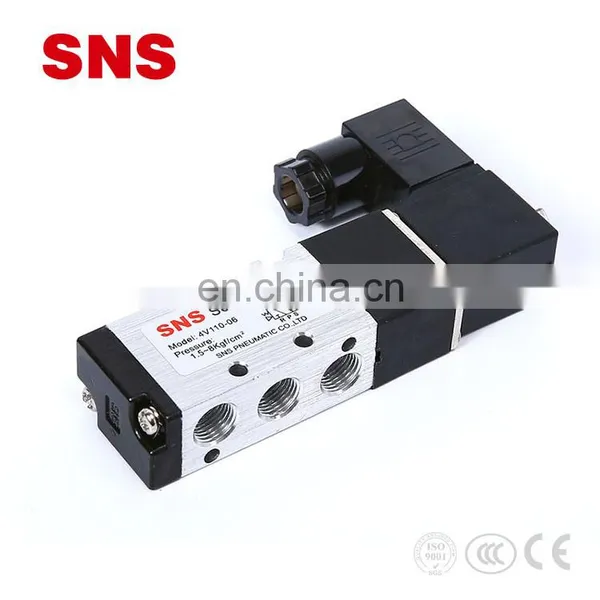

SNS 4V Series Aluminum Alloy Solenoid Valve Air Control 5 Way 12v 24v 110v
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS 2W160-15 Hydraulic Electric 1/2 Inch 12v 24v 110v 220v Brass Water Solenoid ValveNegotiableMOQ: 1 -
SNS VH Series Pneumatic Hand-switching 4/3 Way Valves Hand Control Rotary ValveNegotiableMOQ: 1
-
SNS(AS Series) AS2000-02 Pneumatic Speed Control ValveNegotiableMOQ: 1
-
SNS (MDV Series) High Pressure Control Pneumatic Air Mechanical ValveNegotiableMOQ: 1
-
SNS 2WF500-50 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid ValveNegotiableMOQ: 1
SNS 4V Series Aluminum Alloy Solenoid Valve Air Control 5 way 12v 24v 110v
Banner

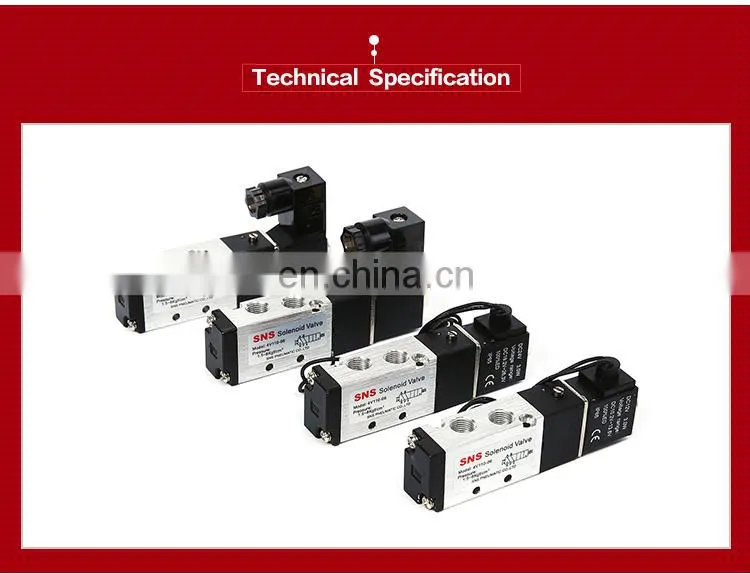

Product Description
AL series lubricator information:
| Model | 4V110-M5 |
4V120-M5 |
4V130C-M5 |
4V130E-M5 |
4V130P-M5 |
4V110-06 |
4V120-06 |
4V130C-06 |
|
| Working Media | Air | ||||||||
| Action Mode | Internal Pilot Type | ||||||||

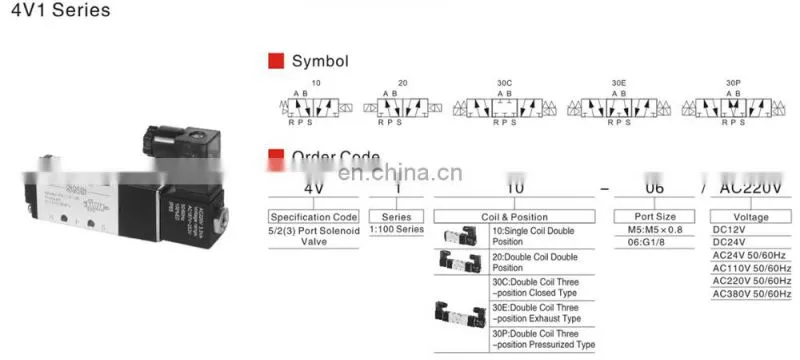

| Position | 5/2Post | 5/3Port | 5/2Port | 5/3Port | |||||
| Effective Sectional Area | 5.5mm^2(Cv=0.31) | 5mm^2(Cv=0.28) | 12.0mm^2(Cv=0.67) | 9.0mm^2(Cv=0.50) | |||||
| Port Size | Input=Output=Exhaust Port=M5*0.8 | Input=Output=Exhaust Port=G1/8 | |||||||
| Lubrication | No Need | ||||||||
| Working Pressire | 0.15~0.8Mpa | ||||||||
| Proof Pressure | 1.0Mpa | ||||||||
| Working Temperature | 0~60℃ | ||||||||
| Voltage Range | ±10% | ||||||||
| Power Consumption | AC:2.8VA DC:2.8W | ||||||||
| Insulation Grade | F Level | ||||||||
| Protection Class | IP65(DIN40050) | ||||||||
| Connecting Type | Wiring Type/Plug Type | ||||||||
| Max.Operating Frequency | 5Cycle/Sec | 3Cycle/Sec | 5Cycle/Sec | 3Cycle/Sec | |||||
| Min.Excitation Time | 0.05Sec | ||||||||
| Material | Body | Aluminum Alloy | |||||||
| Seal | NBR | ||||||||
| Model | 4V130E-06 |
4V130P-06 |
|
| Working Media | Air | ||
| Action Mode | Internal Pilot Type | ||
| Position | 5/3Port | ||
| Effective Sectional Area | 9.0mm^2(Cv=0.50) | ||
| Port Size | Input=Output=Exhaust Port=G1/8 | ||
| Lubrication | No Need | ||
| Working Pressire | 0.15~0.8Mpa | ||
| Proof Pressure | 1.0Mpa | ||
| Working Temperature | 0~60℃ | ||
| Voltage Range | ±10% | ||
| Power Consumption | AC:2.8VA DC:2.8W | ||
| Insulation Grade | F Level | ||
| Protection Class | IP65(DIN40050) | ||
| Connecting Type | Wiring Type/Plug Type | ||
| Max.Operating Frequency | 3Cycle/Sec | ||
| Min.Excitation Time | 0.05Sec | ||
| Material | Body | Aluminum Alloy | |
| Seal | NBR | ||

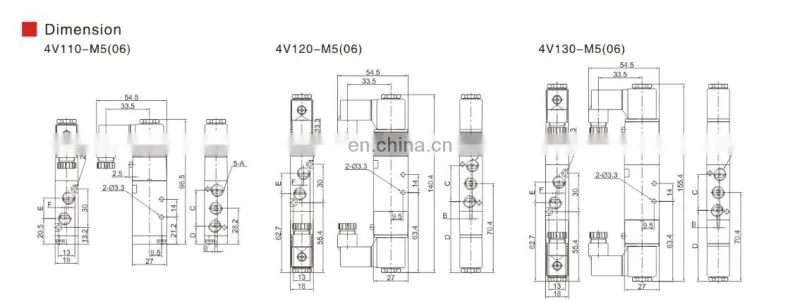

| Model | A | B | C | D | E | F |
| 4V110-M5 | M5 | 0 | 27 | 14.7 | 13.6 | 0 |
| 4V110-06 | G1/8 | 2 | 28 | 14.2 | 16 | 3 |
| 4V120-M5 | M5 | 0 | 27 | 57 | 13.6 | 0 |
| 4V120-06 | G1/8 | 2 | 28 | 56.5 | 16 | 3 |
| 4V130-M5 | M5 | 0 | 27 | 57 | 13.6 | 0 |
| 4V130-06 | G1/8 | 2 | 28 | 56.5 | 16 | 3 |
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
