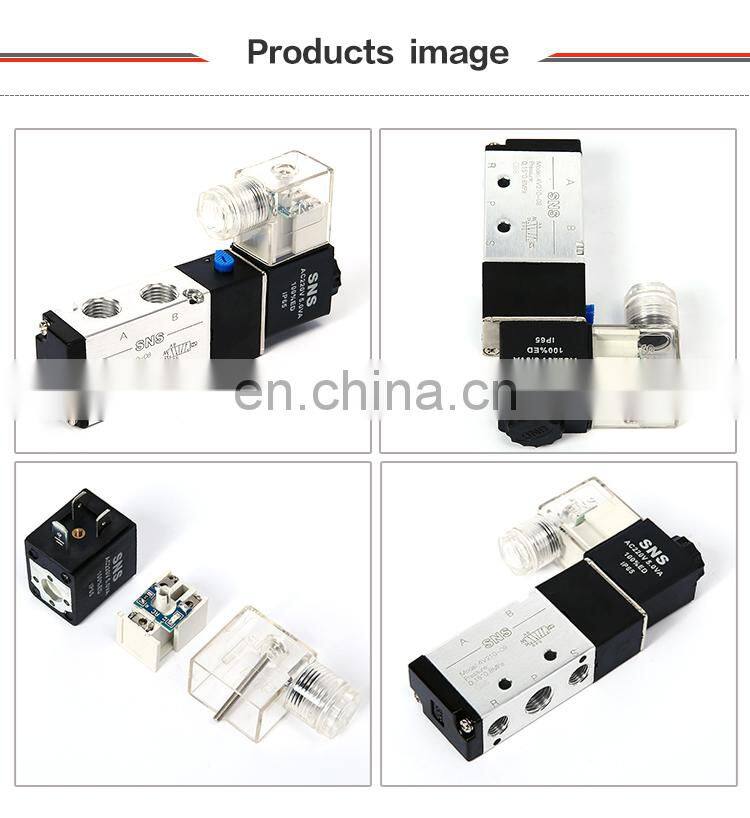

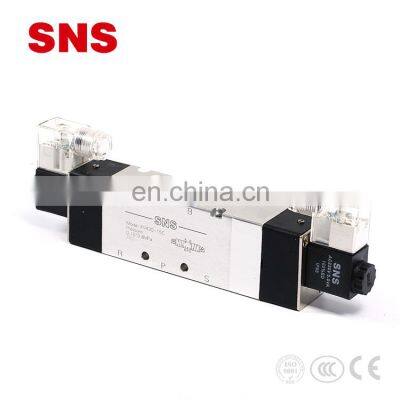

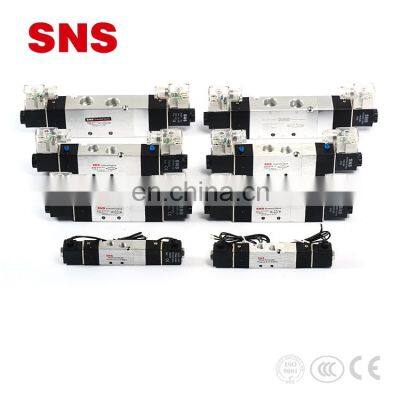

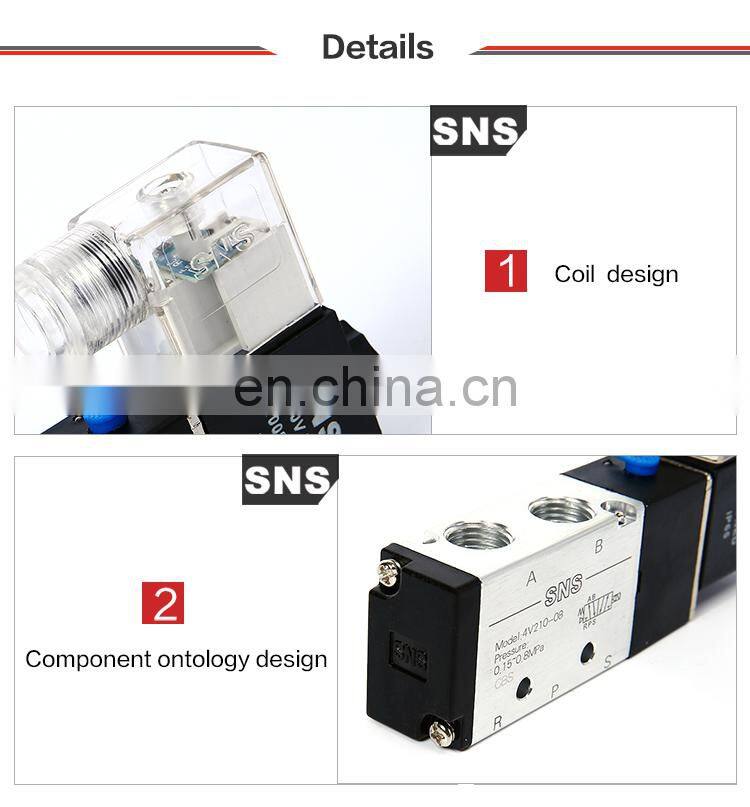

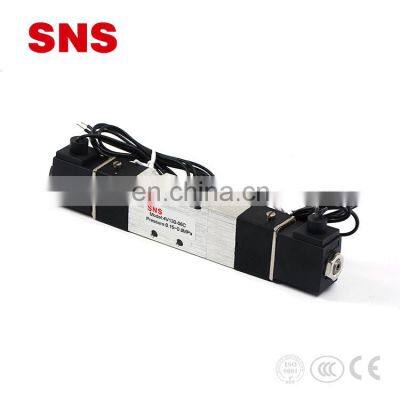

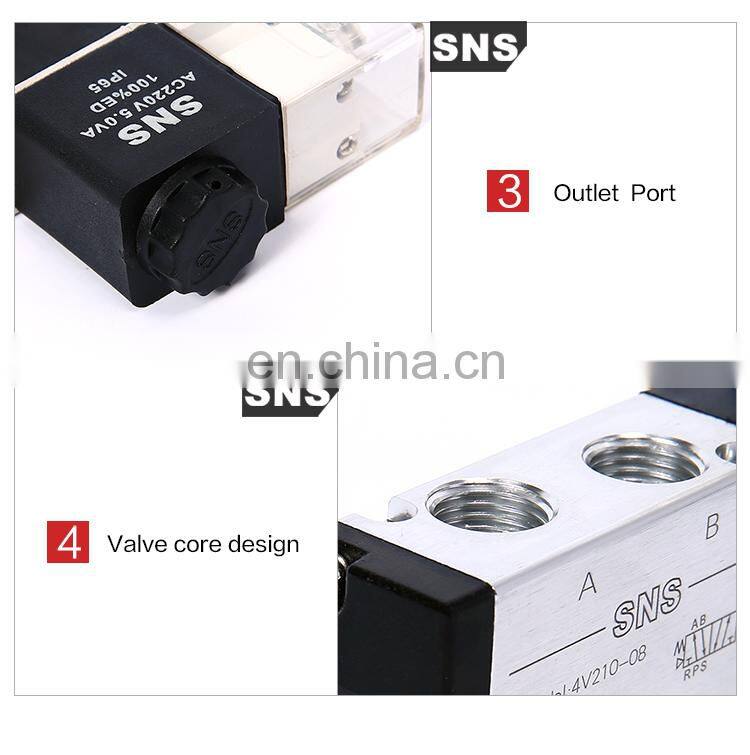

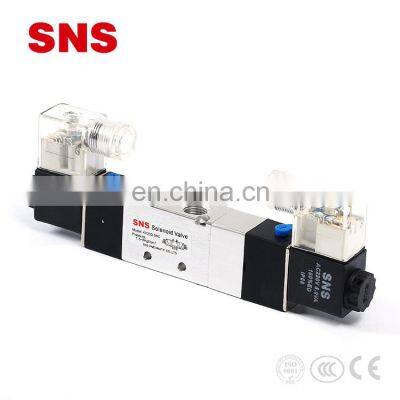

SNS 4V2 series pneumatic 5/2 way solenoid operated directional control valve, 12V/24VDC/220VAC solenoid valve

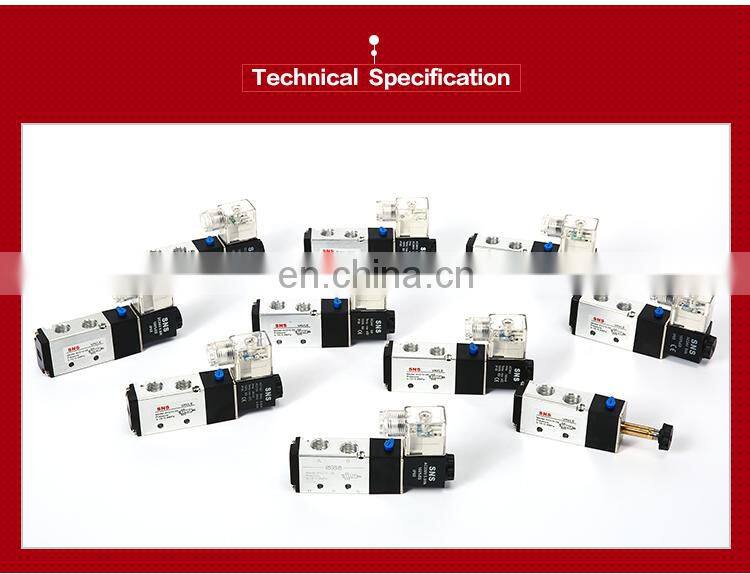

Technical Specification

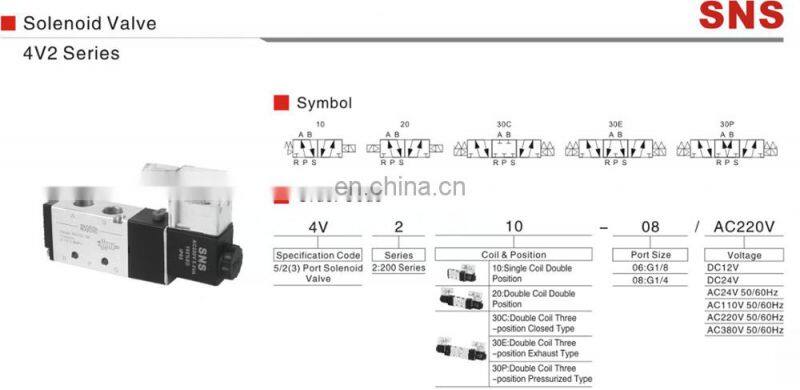

| Model | 4v310-08 | 4v320-08 | 4v330c-08 | 4v330e-08 | 4v330p-08 | 4v310-10 | 4v320c-10 | 4v330c-10 | 4v330e-10 | 4v330p-10 | |
| Working Media | Air | ||||||||||
| Action Mode | Internal Pilot Type | ||||||||||
| Position | 5/2Post | 5/3Port | 5/2Port | 5/3Port | |||||||
| Effective Sectional Area | 25.0mm^2(Cv=1.40) | 18.0mm^2(Cv=1.00) | 30.0mm^2(Cv=1.68) | 18.0mm^2(Cv=1.00) | |||||||
| Port Size | Input=Output=Exhaust Post=G1/4 | Input=Output=G3/8,Exhaust Post=G1/4 | |||||||||
| Lubrication | No Need | ||||||||||
| Working Pressire | 0.15~0.8Mpa | ||||||||||
| Proof Pressure | 1.0Mpa | ||||||||||
| Working Temperature | 0~60℃ | ||||||||||
| Voltage Range | ±10% | ||||||||||
| Power Consumption | AC:5.5VA DC:4.8W | ||||||||||
| Insulation Grade | F Level | ||||||||||
| Protection Class | IP65(DIN40050) | ||||||||||
| Connecting Type | Plug Type | ||||||||||
| Max.Operating Frequency | 5Cycle/Sec | 3Cycle/Sec | 5Cycle/Sec | 3Cycle/Sec | |||||||
| Min.Excitation Time | 0.05Sec | ||||||||||
| Material | Body | Aluminum Alloy | |||||||||
| Seal | NBR | ||||||||||
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
