Home > Products > Control Element > SNS (KV series) hand brake hydraulic push pneumatic shuttle valve
SNS (KV series) hand brake hydraulic push pneumatic shuttle valve
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
SNS Pneumatic 4V410 5/2 port internal pilot type electric solenoid valve with AC/DC 12V 24V 220V
-
4V1 Series solenoid valve coil 24v, pneumatic valve
-
SNS 2W040-10 Brass 3/8 inch water solenoid valve with 24v 110v 220v 380v
-
SNS FOV Series China manufacturer pneumatic foot motorized 2 inch ball valve, brake valve
-
SNS CV Series pneumatic nickel-plated brass one way check valve non return valve
-
SNS BV Series professional air compressor pressure relief safety valve high air pressure reducing brass valve
Product Description

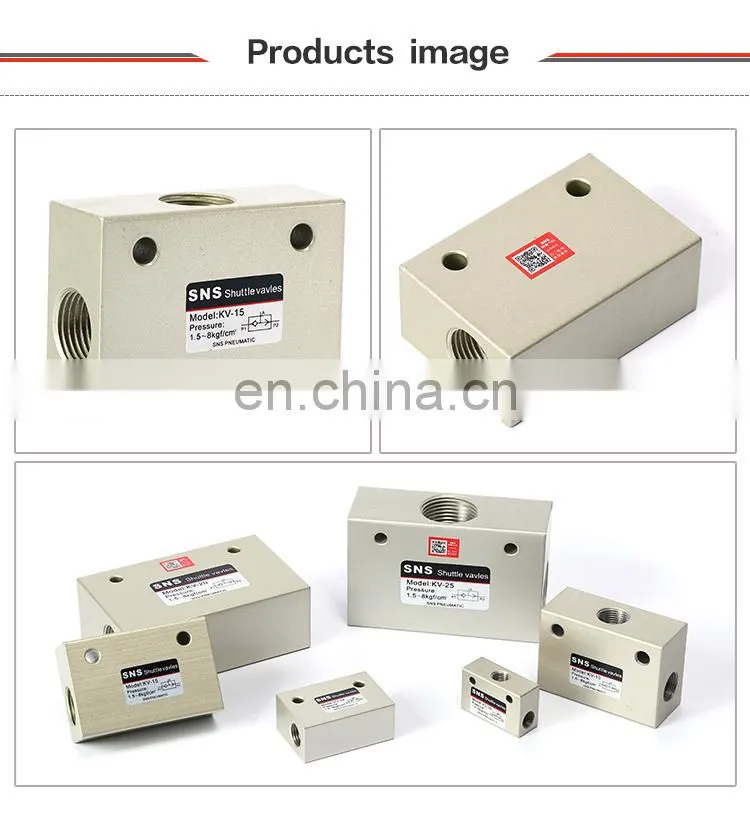

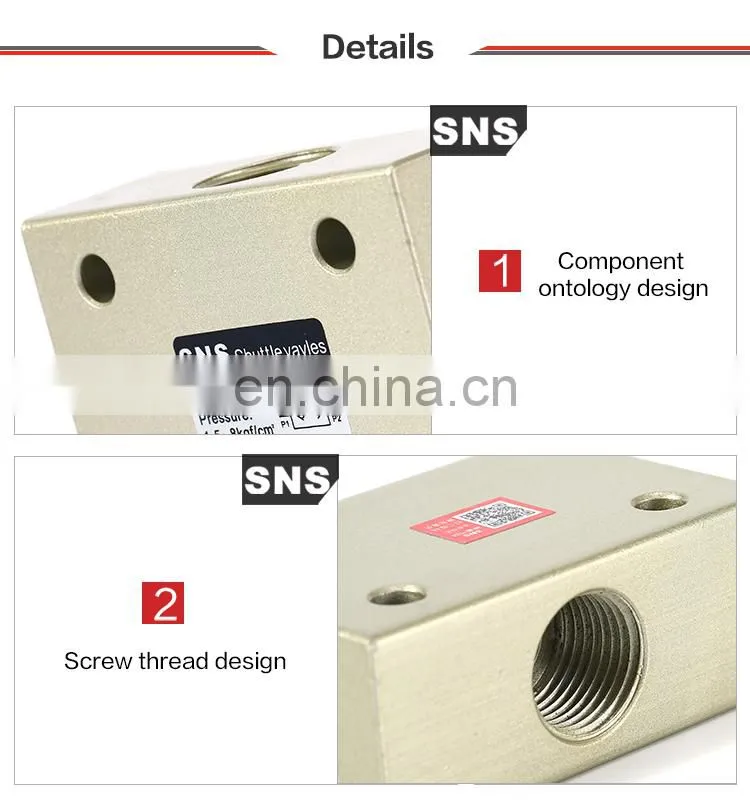

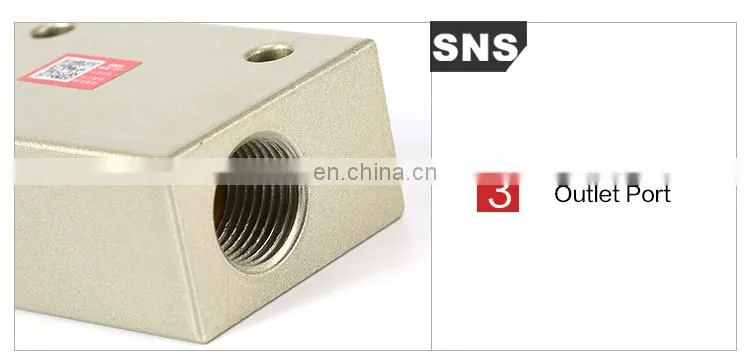

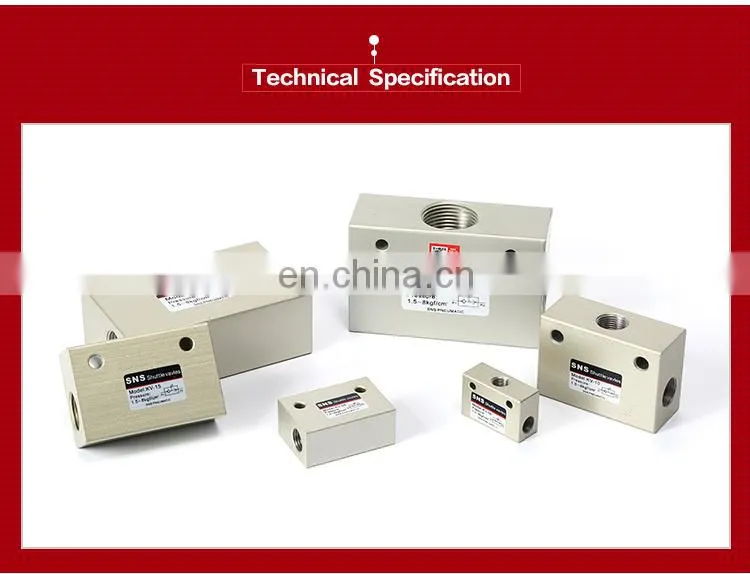

SNS (KV series) hand brake hydraulic push pneumatic shuttle valve
Banner
Product Description
| Model | KV-06 | KV-08 | KV-10 | KV-15 | KV-20 | KV-25 |
| Working Media | Compressed Air | |||||
| Port Size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Effective Sectional Area(mm^2) | 10 | 10 | 21 | 21 | 47 | 47 |
| CV Value | 0.56 | 0.56 | 1.17 | 1.17 | 2.6 | 2.6 |
| Max.Working Pressure | 0.9MPa | |||||
| Proof Pressure | 1.5MPa | |||||
| Working Temperature Range | -5~60℃ | |||||
| Material | Aluminum Alloy | |||||
| Model | A | B | C | E | F | G | H |
| KV-06 | 40 | 25 | G1/8 | 21 | 26 | 16 | 8 |
| KV-08 | 52 | 35 | G1/4 | 25 | 35 | 22 | 11 |
| KV-10 | 70 | 48 | G3/8 | 40 | 50 | 30 | 18 |
| KV-15 | 75 | 48 | G1/2 | 40 | 50 | 30 | 18 |
| KV-20 | 110 | 72 | G3/4 | 58 | 70 | 40 | 22 |
| KV-25 | 110 | 72 | G1 | 58 | 70 | 40 | 22 |
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
