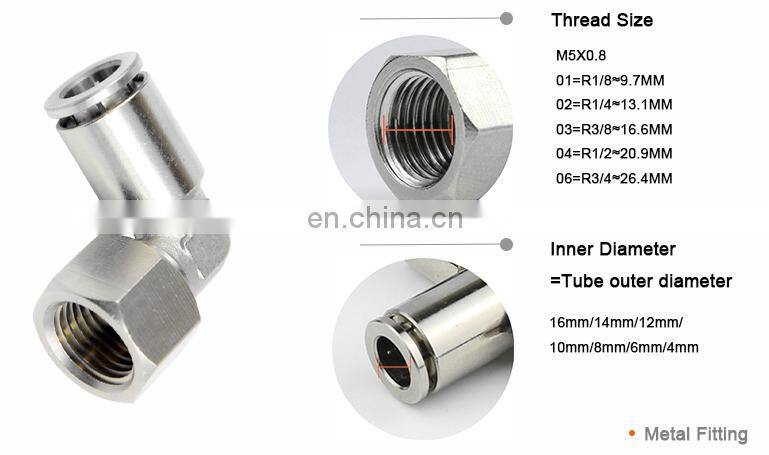

PLF 90 Degree Elbow 1/2 3/4" Female Brass Stainless Steel Air Hose Quick Connector Air Tube Pipe Fitting 8mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1990
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PMF Bulkhead Metal Pneumatic Fitting Joint Hose Connector Female Thread pt Npbt 1/8 1/4 3/4NegotiableMOQ: 1 -
Mini Pneumatic m5 Male Straight Quick Connect Air Fitting Hose ConnectorNegotiableMOQ: 1
-
Mini Micro Small Metal Pneumatic Joint Fitting Male Elbow Air Push in FittingNegotiableMOQ: 1
-
POC Male Straight Brass Copper Pneumatic Hose Connector One Touch Quick Connect Air FittingsNegotiableMOQ: 1
-
PCF 1/4\" G-thread Push Fit Tube Union Male Straight Connector Quick Connect Brass Pipe Tube Air FittingsNegotiableMOQ: 1
PLF 90 degree elbow 1/2 3/4" female brass stainless steel air hose quick connector air tube pipe fitting 8mm
Product Description
| Tube Diameter | Φ4 Φ6 Φ8 Φ10 Φ12 |
| Working Medium | Air |
| Working Pressure | 0.095-2.5 MPa |
| Proof Pressure | 1.6 Mpa |
| Proof Vacuum Pressure | -100Kpa(10Torr) |
| Working Temp | -30℃~100℃ |
| Material | Brass with nickle plated |

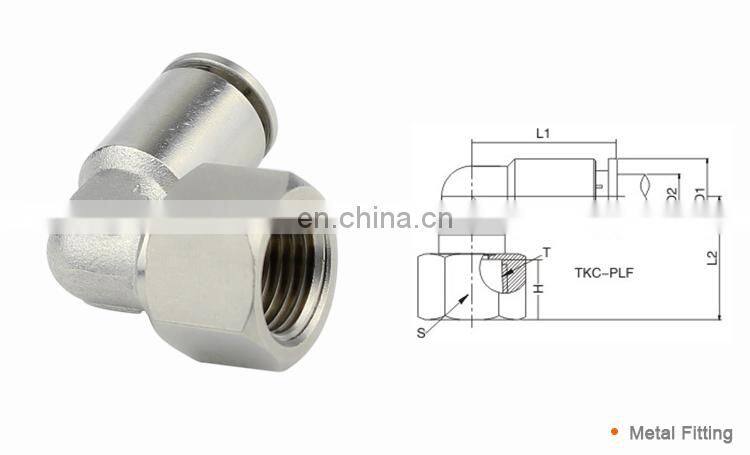

| Model | L1 | L2 | H | S | T | D1 | D2 |
| 4-M5 | 17.5 | 15 | 5 | 8 | M5 | Φ8 | Φ4 |
| 4-01 | 17.5 | 20 | 8 | 14 | 1/8 | Φ10 | Φ4 |
| 4-02 | 17.5 | 22 | 9.5 | 17 | 1/4 | Φ10 | Φ4 |
| 4-03 | 17.5 | 23 | 10.5 | 19 | 3/8 | Φ12 | Φ6 |
| 6-01 | 24 | 24 | 8 | 14 | 1/8 | Φ12 | Φ6 |
| 6-02 | 24 | 21 | 9.5 | 17 | 1/4 | Φ12 | Φ6 |
| 6-03 | 24 | 22 | 10.5 | 19 | 3/8 | Φ12 | Φ6 |
| 6-04 | 24 | 23 | 12.5 | 21 | 1/2 | Φ14 | Φ8 |
| 8-01 | 26.5 | 19 | 8 | 14 | 1/8 | Φ14 | Φ8 |
| 8-02 | 26.5 | 21 | 9.5 | 17 | 1/4 | Φ14 | Φ8 |
| 8-03 | 26.5 | 22 | 10.5 | 19 | 3/8 | Φ14 | Φ8 |
| 8-04 | 26.5 | 23 | 12.5 | 24 | 1/2 | Φ14 | Φ8 |
| 10-01 | 31 | 22 | 8 | 14 | 1/8 | Φ16 | Φ10 |
| 10-02 | 31 | 25 | 9.5 | 17 | 1/4 | Φ16 | Φ10 |
| 10-03 | 31 | 26 | 10.5 | 19 | 3/8 | Φ16 | Φ10 |
| 10-04 | 31 | 27 | 12.5 | 24 | 1/2 | Φ16 | Φ10 |
| 12-01 | 32.5 | 25 | 8 | 14 | 1/8 | Φ18 | Φ12 |
| 12-021 | 32.5 | 27.5 | 9.5 | 7 | 1/4 | Φ18 | Φ12 |
| 12-03 | 32.5 | 28.5 | 10.5 | 19 | 3/8 | Φ18 | Φ12 |
| 12-04 | 32.5 | 29.6 | 12.5 | 24 | 1/2 | Φ18 | Φ12 |
Send inquiry now!
Company Information
Production Flow
Packaging & Shipping
Payment
FAQ
Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q2. What’s the delivery time ?
A3. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q3. What is the standard of package?
A4. Export standard package or special package according to customer requirement.
Q4. what kind of product quality your factory offer?
A5. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.
Q5. Do you accept OEM business?
A6. We do OEM .
Q6. Which market do you already sell?
A7. We already ship to Middle East, Asia, South America , Afria etc.
