Movable Flexible Cables With Metallic Screen Type MYP & MYPT,1.9/3.3kV,3.6/6kV,6/10kV,8.7/10kV
- 99999 Piece / Pieces per Month
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Brand Name: | Jiangsu Shangshang Cable Group Co., Ltd | Place of Origin: | China |
Product Description
This MYPT-1.9/3.3kV cable is mainly used for power connection of various underground movable coal mining equipment.
The MYP-3.6/6kV & MYPT-3.6/6kV,6/10kV,8.7/10kV cables are suitable for power connection of opencast movable mining machinery.
STANDARDS:
MT818.7.
Conductor: flexible tinned copper conductor (class 5)
Insulation: ethylene-propylene rubber (EPR)
Insulation screen: semi-conducting tape screen
Metallic screen: composite screen with fine tinned copper wire and polyester yarn braid
Assembly: three power conductors with filler and core binder tape
Outer sheath: Chlorinated Polyethylene(CPE)
MCP-3.6/6kV cable:
Conductor: flexible tinned copper conductor (class 5)
Conductor screen: semi-conducting layer
Insulation: ethylene-propylene rubber (EPR)
Insulation screen: semi-conducting layer
Metallic screen: composite screen with fine tinned copper wire and polyester yarn braid
Earth conductor: tinned copper conductor + EPR insulation
Assembly: three power conductor + one earth conductor with filler and core binder tape
Outer sheath: Chlorinated Polyethylene(CPE)

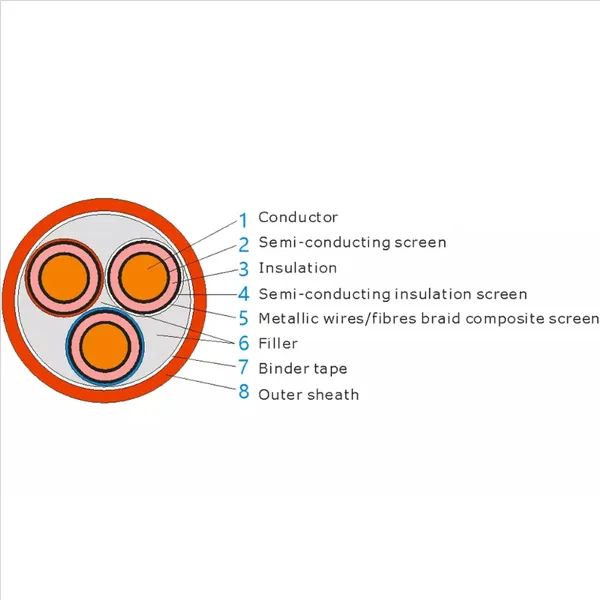

MYPT-3.6/6kV,6/10kV,8.7/10kV cable:
Conductor: flexible tinned copper conductor (class 5)
Conductor screen: semi-conducting layer
Insulation: ethylene-propylene rubber (EPR)
Insulation screen: semi-conducting layer
Metallic screen: composite screen with fine tinned copper wire and polyester yarn braid
Assembly: three power conductors with filler and core binder tape
3Cx16mm2 – 3Cx185mm2
Three power cores: by colored polyester yarn of red, white, blue over power cores
Earth conductor: black
Black(1.9/3.3kV)
Red(3.6/6kV, 6/10kV, 8.7/10kV), UV resistant.
USAGE CHARACTERISTICS:
Rated voltage: 1.9/3.3kV, 3.6/6kV, 6/10kV, 8.7/10kV
Maximum continuous conductor operating temperature: 90℃
Maximum conductor short circuit temperature: 250℃ (maximum duration 5Sec.)
Minimum installation ambient temperature: 0℃
Minimum bending radius for installation: 6xO.D.
CERTIFICATION:
MA certification
