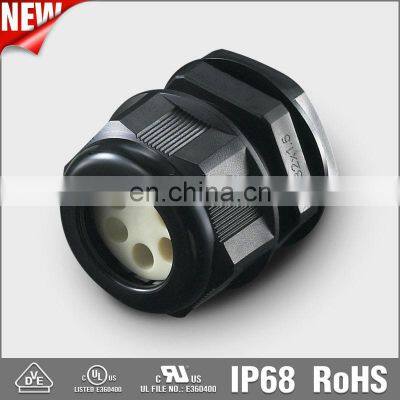

High Quality Metric Waterproof Nylon Cable Gland Multiple Hole
|

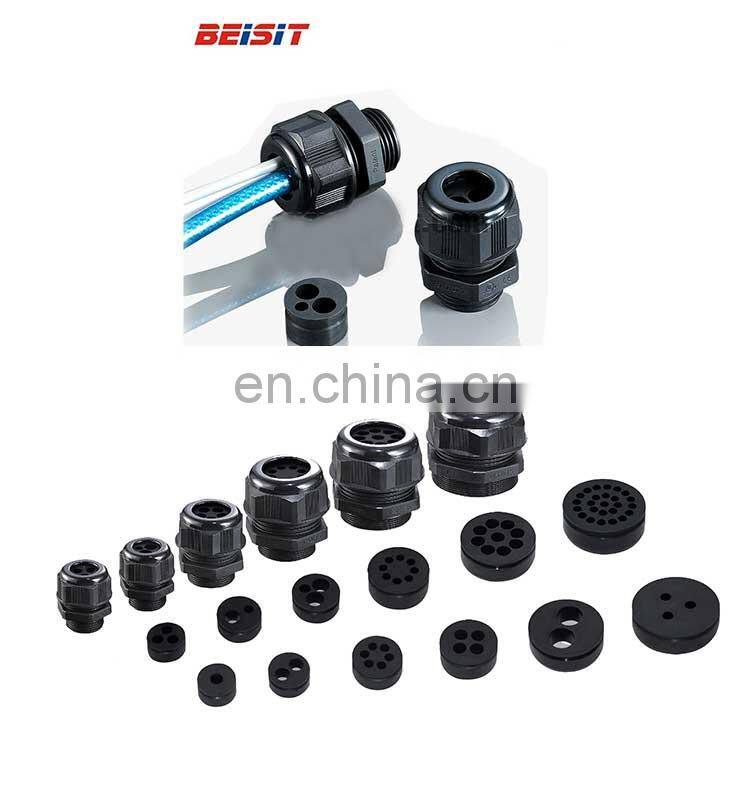

Multiple-entry Nylon Cable Gland -M TypeMaterial: PA(Nylon), UL 94 V-2 Color: Grey(RAL7035), Black(RL) Hermetic Seal: NBR O-Ring: EPDM Working Temperature: -40℃ to 100℃
Other material upon request. All O ring are pre-assembled as standard. Main Products: Cable Glands Cable ties, Cable Tie Bundler Waterproof Enclosure, Conduit System, Wiring Accessories |

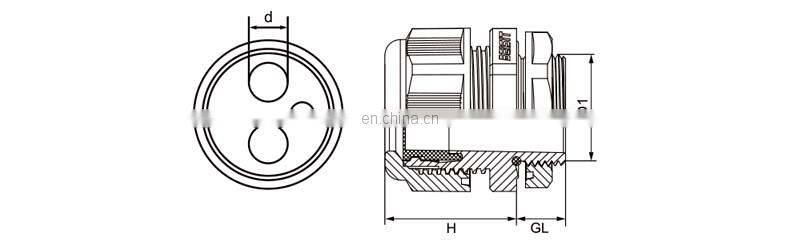

Size Chart of Multiple-entry Nylon Cable Gland M Type
| No. of Holes | Thread ΦD1 |
No. of Holes X d mm | H mm |
GL mm |
Spanner Size | Beisit No. Grey(RAL7035) |
Beisit No. Black(RAL9005) |
| 1 | M20SX1.5 | 1X5 | 27 | 9 | 24 | M20S-H1-5 | M20SB-H1-5 |
| 1 | M20SK1.5 | 1X8 | 27 | 9 | 24 | M20S-H1-8 | M20SB-H1-8 |
| 1 | M20BX1.5 | 1X7.5 | 28 | 9 | 27 | M20B-H1-7.5 | M20BB-H1-7.5 |
| 1 | M20BX1.5 | 1X9 | 28 | 9 | 27 | M20B-H1-9 | M20BB-H1-9 |
| 1 | M25X1.5 | 1X7.5 | 31 | 11 | 33 | M25-H1-7.5 | M25B-H 1-7.5 |
| 1 | M25X1.5 | 1X10 | 31 | 11 | 33 | M25-H1-10 | M25B-H1-10 |
| 1 | M25X1.5 | 1X14.5 | 31 | 11 | 33 | M25-H1-14.5 | M25B-H1-14.5 |
| 1 | M25X1.5 | 1X15 | 31 | 11 | 33 | M25-H1-15 | M25B-H1-15 |
| 1 | M40X1.5 | 1X33 | 48 | 13 | 53 | M40-H1-33 | M40B-H1-33 |
| 2 | M16SX1.5 | 2X3 | 22 | 8 | 19 | M16S-H2-3 | M16SB-H2-3 |
| 2 | M16BX1.5 | 2X4 | 25 | 8 | 19/22 | M16B-H2-4 | M16BB-H2-4 |
| 2 | M20SX1.5 | 2X5 | 27 | 9 | 24 | M20S-H2-5 | M20SB-H2-5 |
| 2 | M20BX1.5 | 2X6.7 | 28 | 9 | 27 | M20B-H2-6.7 | M20BB-H2-6.7 |
| 2 | M25X1.5 | 2X2.8 | 31 | 11 | 33 | M25-H2-2.8 | M25B-H2-2.8 |
| 2 | M25X1.5 | 2X4.4 | 31 | 11 | 33 | M25-H2-4.4 | M25B-H2-4.4 |
| 2 | M25X1.5 | 2X5.7 | 31 | 11 | 33 | M25-H2-5.7 | M25B-H2-5.7 |
| 2 | M25X1.5 | 5+8 | 31 | 11 | 33 | M25-H2-(5+8) | M25B-H2-(5+8) |
| 2 | M25X1.5 | 2X6 | 31 | 11 | 33 | M25-H2-6 | M25B-H2-6 |
| 2 | M25X1.5 | 2X6.3 | 31 | 11 | 33 | M25-H2-6.3 | M25B-H2-6.3 |
| 2 | M25X1.5 | 2X8 | 31 | 11 | 33 | M25-H2-8 | M25B-H2-8 |
| 2 | M32X1.5 | 2X4.5 | 39 | 11 | 42 | M32-H2-4.5 | M32B-H2-4.5 |
| 2 | M75X2 | 2X23 | 69 | 25 | 82 | M75-H2-23 | M75B-H2-23 |
| 3 | M16SX1.5 | 3X3 | 22 | 8 | 19 | M16S-H3-3 | M16SB-H3-3 |
| 3 | M20SX1.5 | 3X4 | 27 | 9 | 24 | M20S-H3-4 | M20SB-H3-4 |
| 3 | M25X1.5 | 3X4.5 | 31 | 11 | 33 | M25-H3-4.5 | M25B-H3-4.5 |
| 3 | M25X1.5 | 3X6 | 31 | 11 | 33 | M25-H3-6 | M25B-H3-6 |
| 3 | M25X1.5 | 3X7 | 31 | n | 33 | M25-H3-7 | M25B-H3-7 |
| 3 | M32X1.5 | 1X6.7+2X10.2 | 39 | 11 | 42 | M32-H3- (6.7+10.2) | M32B-H3- (6.7+10.2) |
| 3 | M32X1.5 | 1X7.6+2X117 | 39 | 11 | 42 | M32-H3- (7.6+11.7) | M32B-H3- (7.6+11.7) |
| 3 | M63X1.5 | 3X6.5 | 49 | 14 | 65/68 | M63-H3-6.5 | M63B-H3-6.5 |
| 4 | M16SK1.5 | 4X2 | 22 | 8 | 19 | M16S-H4-2 | M16SB-H4-2 |
| 4 | M25X1.5 | 4X5 | 31 | 11 | 33 | M25-H4-5 | M25B-H4-5 |
| 4 | M25X1.5 | 4X6 | 31 | 11 | 33 | M25-H4-6 | M25B-H4-6 |
| 4 | M32X1.5 | 2X5+2X8 | 39 | 11 | 42 | M32-H4-(2X5+2X8) | M32B-H4-(2X5+2X8) |
| 4 | M32X1.5 | 4X7 | 39 | 11 | 42 | M32-H4-7 | M32B-H4-7 |
| 4 | M32X1.5 | 4X8 | 39 | 11 | 42 | M32-H4-8 | M32B-H4-8 |
| 4 | M40X1.5 | 4X10 | 48 | 13 | 53 | M40-H4-10 | M40B-H4-10 |
| 5 | M25X1.5 | 5X4 | 31 | 11 | 33 | M25-H5-4 | M25B-H5-4 |
| 6 | M20SX1.5 | 6X3.2 | 27 | 9 | 24 | M20S-H6-3.2 | M20SB-H6-3.2 |
| 6 | M32X1.5 | 6X6 | 39 | 11 | 42 | M32-H6-6 | M32B-H6-6 |
| 8 | M32X1.5 | 8X5 | 39 | 11 | 42 | M32-H8-5 | M32B-H8-5 |
| 8 | M40X1.5 | 8X6 | 48 | 13 | 53 | M40-H8-6 | M40B-H8-6 |
| 9 | M50X1.5 | 9X8 | 49 | 13 | 60 | M50-H9-8 | M50B-H9-8 |
| 25 | M50X1.5 | 25X5 | 49 | 13 | 60 | M50-H25-5 | M50B-H25-5 |
Application of Cable Gland
| Cable Glands | Waterproof Enclosure | Corrugated Tubing Fitting |
| Nylon Cable Tie | Stainless Cable Tie | Cable Tie Bundler Tie Gun |
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
1.Entered the filed of wiring accessories more than 12 years.
2.Fast delivery, 20 Working days / 40' feet container.
3.OEM and Special packing, like Blister, Tube Box, Header card, PDQ are all available.
4.5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC. 6-sigma Quality Management System guaranteed.
5.12 years experience, 18500mm2 BV, TUV, BSCI, ISO9001 certified workshop.
6.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
7.Material was sourced from famous brand "Shenma" in China, also US Dupont & Japan Leona material is available.
8.Products catch , VDE, IP68, RoHS, REACH and CE ,GE, Mitsubishi, Auchan, B&Q rely on us continuously.
9.Main Products:
Cable Glands,Cable ties, Terminals and Terminal Blocks, Insulation Piercing Connectors ,Other Wiring Accessories
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
Package
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
