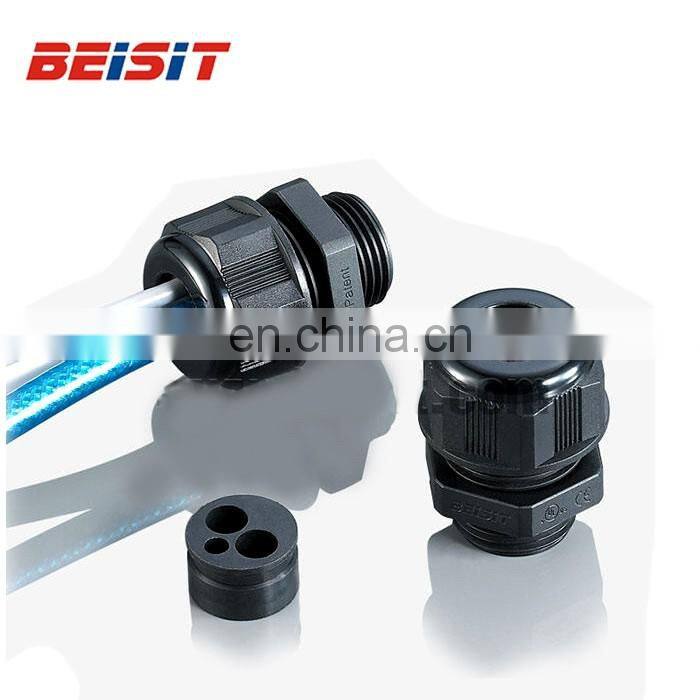

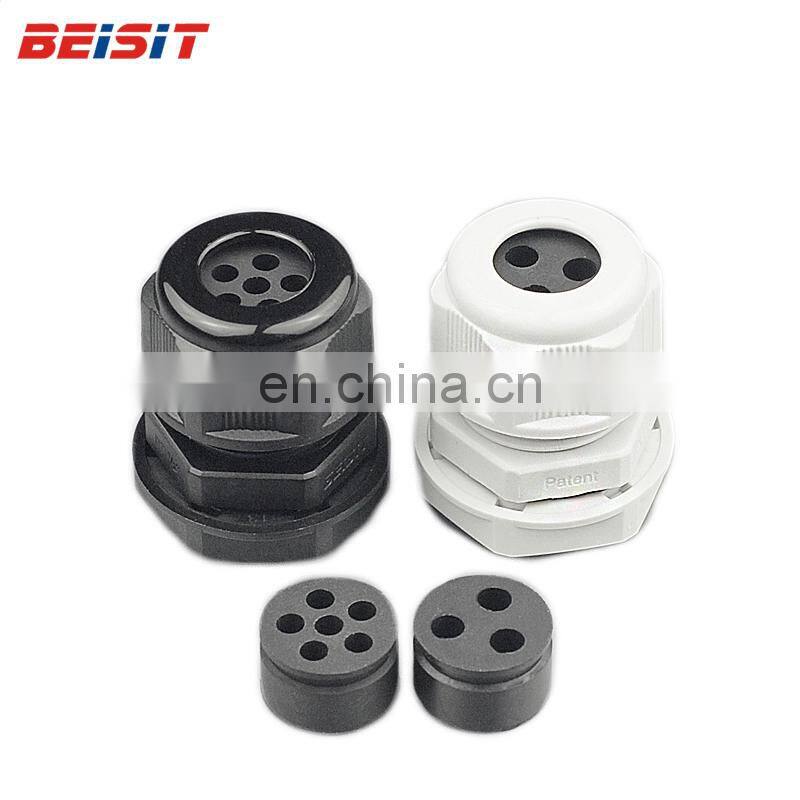

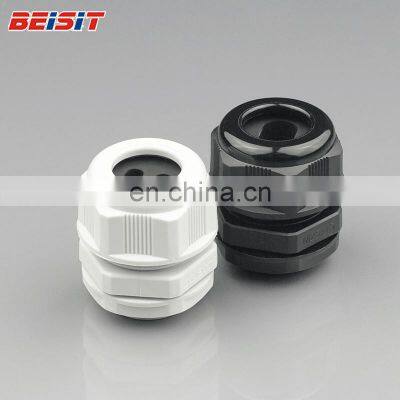

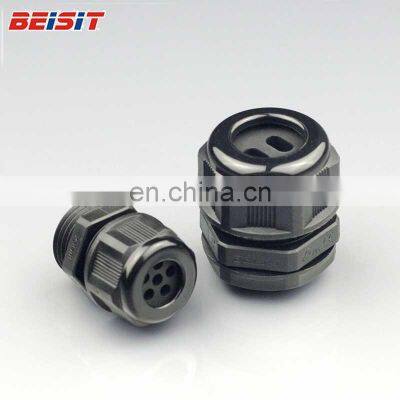

PG Type Nylon Plastic Multi Hole Cable Gland Connector With Ip68 Certification
|
Multiple-entry Nylon Cable Gland -PG TypeMaterial: PA(Nylon), UL 94 V-2 Color: Grey(RAL7035), Black(RL) Hermetic Seal: NBR O-Ring: EPDM Working Temperature: -40℃ to 100℃
Other material upon request. All O ring are pre-assembled as standard. |

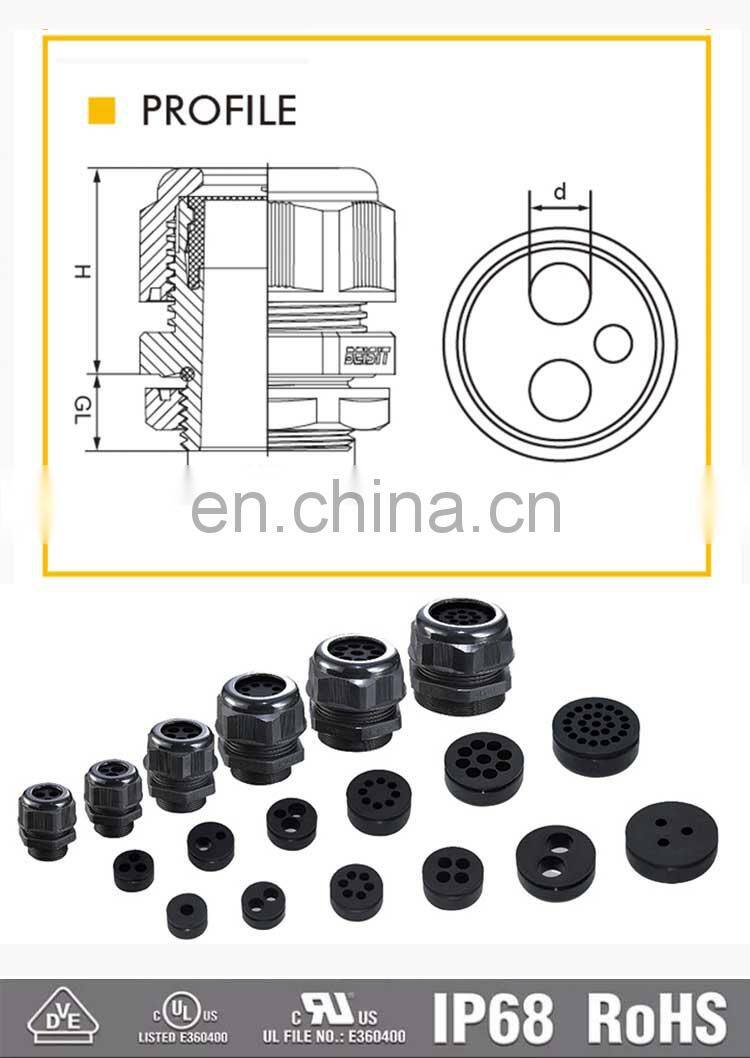

Size Chart of Multiple-entry Nylon Cable Gland PG Type
| No. of Holes | Thread ΦD1 |
No. of Holes X d mm | H mm |
GL mm |
Spanner Size | Beisit No. Grey(RAL7035) |
Beisit No. Black(RAL9005) |
| 1 | PG13.5 | 1X5 | 27 | 9 | 24 | P13.5-H1-5 | P13.5B-H1-5 |
| 1 | PG13.5 | 1X8 | 27 | 9 | 24 | P13.5-H1-8 | P13.5B-H1-8 |
| 1 | PG16 | 1X7.5 | 28 | 9 | 27 | P16-H1-7.5 | P16B-H1-7.5 |
| 1 | PG16 | 1X9 | 28 | 9 | 27 | P16-H1-9 | P16B-H1-9 |
| 1 | PG21 | 1X7.5 | 31 | 11 | 33 | P21-H1-7.5 | P21B-H1-7.5 |
| 1 | PG21 | 1X10 | 31 | 11 | 33 | P21-H1-10 | P21B-H1-10 |
| 1 | PG21 | 1X14.5 | 31 | 11 | 33 | P21-H1-14.5 | P21B-H1-14.5 |
| 1 | PG21 | 1X15 | 31 | 11 | 33 | P21-H1-15 | P21B-H1-15 |
| 1 | PG36 | 1X33 | 48 | 13 | 53 | P36-H1-33 | P36B-H1-33 |
| 2 | PG9 | 2X3 | 22 | 8 | 19 | P09-H2-3 | P09B-H2-3 |
| 2 | PG11 | 2X4 | 25 | 8 | 19/22 | P11-H2-4 | P11B-H2-4 |
| 2 | PG13.5 | 2X5 | 27 | 9 | 24 | P13.5-H2-5 | P13.5B-H2-5 |
| 2 | PG16 | 2X6.7 | 28 | 9 | 27 | P16-H2-6.7 | P16B-H2-6.7 |
| 2 | PG21 | 2X2.8 | 31 | 11 | 33 | P21-H2-2.8 | P21B-H2-2.8 |
| 2 | PG21 | 2X4.4 | 31 | 11 | 33 | P21-H2-4.4 | P21B-H2-4.4 |
| 2 | PG21 | 2X5.7 | 31 | 11 | 33 | P21-H2-5.7 | P21B-H2-5.7 |
| 2 | PG21 | 5+8 | 31 | 11 | 33 | P21-H2-(5+8) | P21B-H2-(5+8) |
| 2 | PG21 | 2X6 | 31 | 11 | 33 | P21-H2-6 | P21B-H2-6 |
| 2 | PG21 | 2X6.3 | 31 | 11 | 33 | P21-H2-6.3 | P21B-H2-6.3 |
| 2 | PG21 | 2X8 | 31 | 11 | 33 | P21-H2-8 | P21B-H2-8 |
| 2 | PG29 | 2X4.5 | 39 | 11 | 42 | P29-H2-4.5 | P29B-H2-4.5 |
| 3 | PG9 | 3X3 | 22 | 8 | 19 | P09-H3-3 | P09B-H3-3 |
| 3 | PG13.5 | 3X4 | 27 | 9 | 24 | P13.5-H3-4 | P13.5B-H3-4 |
| 3 | PG21 | 3X4.5 | 31 | 11 | 33 | P21-H3-4.5 | P21B-H3-4.5 |
| 3 | PG21 | 3X6 | 31 | 11 | 33 | P21-H3-6 | P21B-H3-6 |
| 3 | PG21 | 3X7 | 31 | n | 33 | P21-H3-7 | P21B-H3-7 |
| 3 | PG29 | 1X6.7+2X10.2 | 39 | 11 | 42 | P29-H3- (6.7+10.2) | P29B-H3- (6.7+10.2) |
| 3 | PG29 | 1X7.6+2X117 | 39 | 11 | 42 | P29-H3- (7.6+11.7) | P29B-H3- (7.6+11.7) |
| 3 | PG48 | 3X6.5 | 49 | 14 | 65 | P48-H3-6.5 | P48B-H3-6.5 |
| 4 | PG9 | 4X2 | 22 | 8 | 19 | P09-H4-2 | P09B-H4-2 |
| 4 | PG21 | 4X5 | 31 | 11 | 33 | P21-H4-5 | P21B-H4-5 |
| 4 | PG21 | 4X6 | 31 | 11 | 33 | P21-H4-6 | P21B-H4-6 |
| 4 | PG29 | 2X5+2X8 | 39 | 11 | 42 | P29-H4-(2X5+2X8) | P29B-H4-(2X5+2X8) |
| 4 | PG29 | 4X7 | 39 | 11 | 42 | P29-H4-7 | P29B-H4-7 |
| 4 | PG29 | 4X8 | 39 | 11 | 42 | P29-H4-8 | P29B-H4-8 |
| 4 | PG36 | 4X10 | 48 | 13 | 53 | P36-H4-10 | P36B-H4-10 |
| 5 | PG21 | 5X4 | 31 | 11 | 33 | P21-H5-4 | P21B-H5-4 |
| 6 | PG13.5 | 6X3.2 | 27 | 9 | 24 | P13.5-H6-3.2 | P13.5B-H6-3.2 |
| 6 | PG29 | 6X6 | 39 | 11 | 42 | P29-H6-6 | P29B-H6-6 |
| 8 | PG29 | 8X5 | 39 | 11 | 42 | P29-H8-5 | P29B-H8-5 |
| 8 | PG36 | 8X6 | 48 | 13 | 53 | P36-H8-6 | P36B-H8-6 |
| 9 | FG42 | 9X8 | 49 | 13 | 60 | P42-H9-8 | P42B-H9-8 |
| 25 | PG42 | 25X5 | 49 | 13 | 60 | P42-H25-5 | P42B-H25-5 |
Application of Cable Gland
| Cable Glands | Waterproof Enclosure | Corrugated Tubing Fitting |
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
Beisit Electric Tech (Hangzhou) Co.,Ltd. is a leading manufacturer and supplier for high quality waterproof cable glands and and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC,EN and UL.
Beisit is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company is able to make quick response to customization request.
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
5.Why Choose US.
1. Compamy is Managed Strictly According to IATF16949/ISO9001.
2. Our strong technical team are established by high-end technical person that have reached 36%.
3. Strong Ability of Special Customization with a complete mold processing center.
4. Precision processing equipment are sourced from Japan, Korea and Taiwan to ensure that the products meet high precision requirement.
5. Capacity of Design and Manufacture of Precision Cutting Tools.
6. Advanced Testing Equipments. Products Tests fellow German Standard of DIN, VDE, American Standard of UL and comply with European Lastest Standard of EN and ATEX
1.Trade Items Of Products
| Payment | L/C,T/T,Western Union,MoneyGram,Paypal |
| Port | Shanghai or Ningbo |
| MOQ | 500PCS |
| Supply Ability | 2Twenty-Foot Container/Week |
| OEM | Accept |
| Delivery | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
2.Packaging Of Products
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
|
