Help CenterChina Manufacturer Beisit Nylon Liquid Tight Cable Gland Connector Cord Grips Metric Long Thread Type
Related Products
-
CE ATEX UL Certified Nickel Plated Cable Gland Single Sealing Packing Cable ConnectorNegotiableMOQ: 1 -
Nylon Cable Connector Compactness Strong Cable Electrical Conduit ConnectorNegotiableMOQ: 1
-
Direct Factory Flameproof Double Locking Single Sealing Stuffing EMC Cable Connector Gland ManufacturerNegotiableMOQ: 1
-
Cable Glands for Laying Armored Cable With Double SealNegotiableMOQ: 1
-
Professional Custom High Purity Brass Nickel Plated Cable ConnectorNegotiableMOQ: 1
|

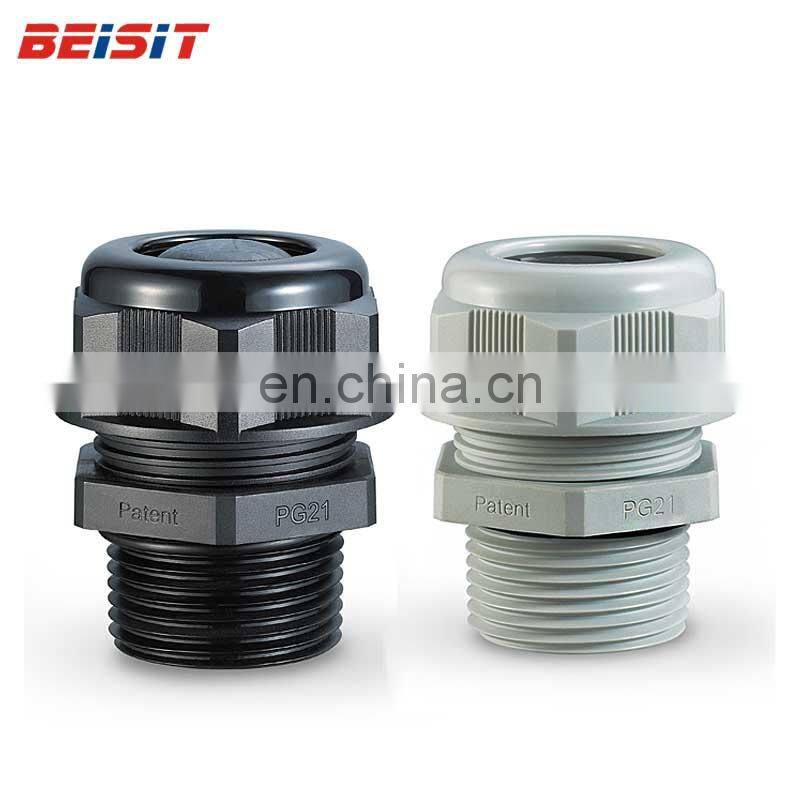

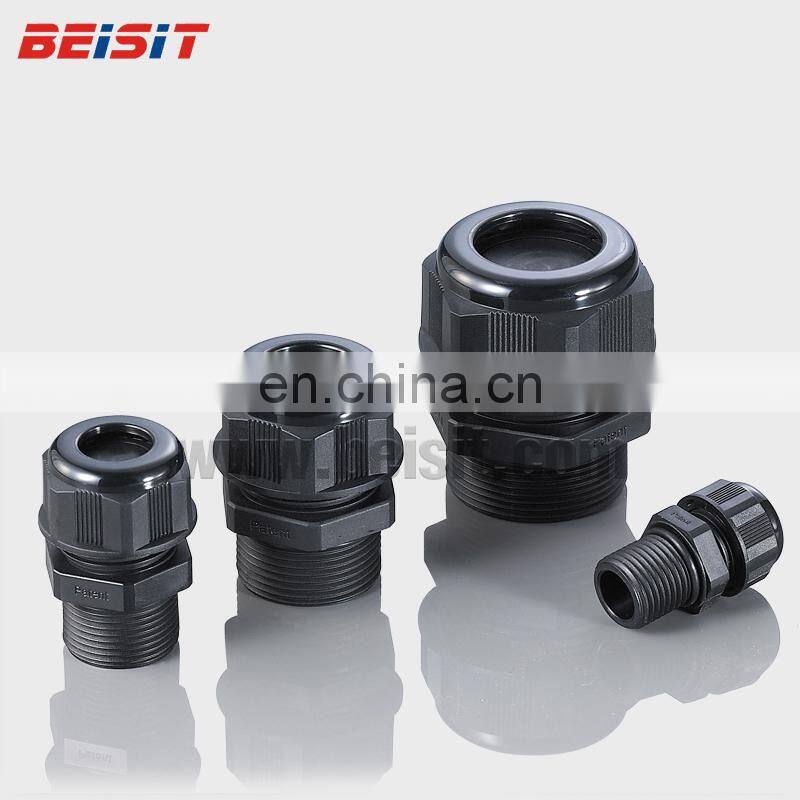

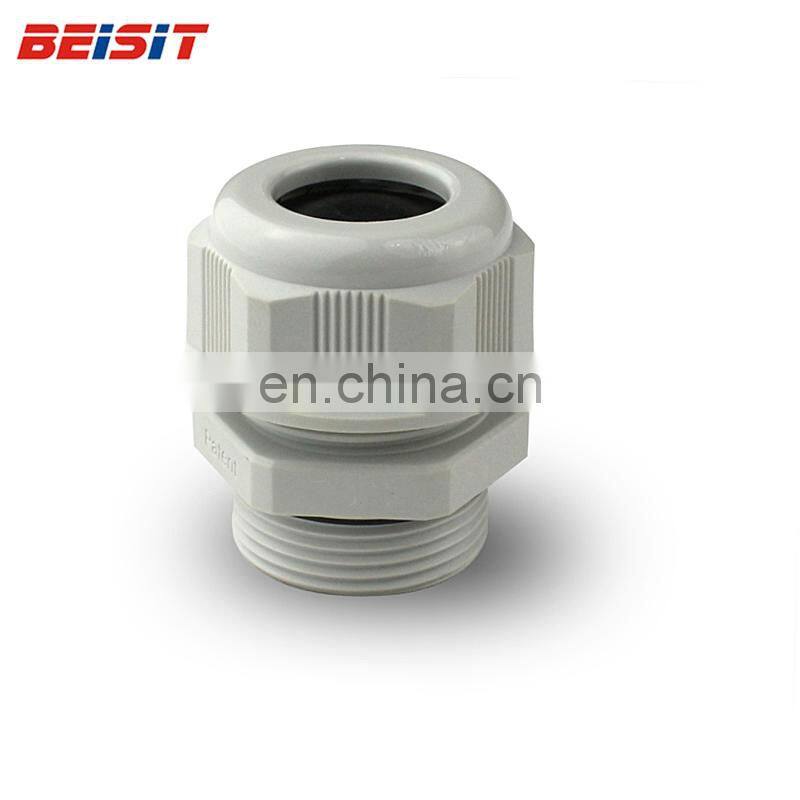

Metric Long Thread Type Nylon Cable GlandsMaterial: PA(Nylon), UL 94 V-2 Color: Grey(RAL7035), Black(RL) Hermetic Seal: EPDM O-Ring: EPDM Working Temperature: -40℃ to 100℃, 120℃ short time.
Other material upon request. All O ring are pre-assembled as standard. |
Size Chart of PG-Length Nylon Cable Gland
| Model | Cable Range Dia mm |
H mm |
GL mm |
Spanner Size | Beisit No. RAL7035 |
Beisit No. RAL9005 |
| M12x1.5 | 3-6,5 | 21 | 15 | 15 | M1207L | M1207BL |
| M12x1.5 | 2-5 | 21 | 15 | 15 | M1205L | M1205BL |
| M12x1.5 | 4-8 | 22 | 15 | 19 | M1208L | M1208BL |
| M16x1.5 | 4-8 | 22 | 15 | 19 | M1608L | M1608BL |
| M16x1.5 | 2-6 | 22 | 15 | 19 | M1606L | M1606BL |
| M16x1.5 | 5-10 | 25 | 15 | 22 | M1610L | M1610BL |
| M20x1.5 | 6-12 | 27 | 15 | 24 | M2012L | M2012BL |
| M20x1.5 | 5-9 | 27 | 15 | 24 | M2009L | M2009BL |
| M20x1.5 | 10-14 | 28 | 15 | 27 | M2014L | M2014BL |
| M25x1.5 | 13-18 | 31 | 15 | 33 | M2518L | M2518BL |
| M25x1.5 | 9-16 | 31 | 15 | 33 | M2516L | M2516BL |
| M32x1.5 | 18-25 | 39 | 15 | 42 | M3225L | M3225BL |
| M32x1.5 | 13-20 | 39 | 15 | 42 | M3220L | M3220BL |
| M32x1.5 | 16-22.5 | 37 | 15 | 42 | M3222L | M3222BL |
| M40x1.5 | 22-32 | 48 | 18 | 53 | M4032L | M4032BL |
| M40x1.5 | 20-26 | 48 | 18 | 53 | M4026L | M4026BL |
| M50x1.5 | 32-38 | 49 | 18 | 60 | M5038L | M5038BL |
| M50x1.5 | 25-31 | 49 | 18 | 60 | M5031L | M5031BL |
| M63x1.5 | 37-44 | 49 | 18 | 65/68 | M6344L | M6344BL |
| M63x1.5 | 29-35 | 49 | 18 | 65/68 | M6335L | M6335BL |
| M63x1.5 | 25-30,5 | 49 | 18 | 65/68 | M6330L | M6330BL |
| M63x1.5 | 30,5-40 | 49 | 18 | 65/68 | M6340L | M6340BL |
Application of Cable Gland
| Cable Glands | Waterproof Enclosure | Corrugated Tubing Fitting |
| Nylon Cable Tie | Stainless Cable Tie | Cable Tie Bundler Tie Gun |
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
1.Entered the filed of wiring accessories more than 12 years.
2.Fast delivery, 20 Working days / 40' feet container.
3.OEM and Special packing, like Blister, Tube Box, Header card, PDQ are all available.
4.5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC. 6-sigma Quality Management System guaranteed.
5.12 years experience, 18500mm2 BV, TUV, BSCI, ISO9001 certified workshop.
6.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
7.Material was sourced from famous brand "Shenma" in China, also US Dupont & Japan Leona material is available.
8.Products catch UL, VDE, IP68, RoHS, REACH and CE ,GE, Mitsubishi, Auchan, B&Q rely on us continuously.
9.Main Products:
Cable Glands,Cable ties, Terminals and Terminal Blocks, Insulation Piercing Connectors ,Other Wiring Accessories
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
Package
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
