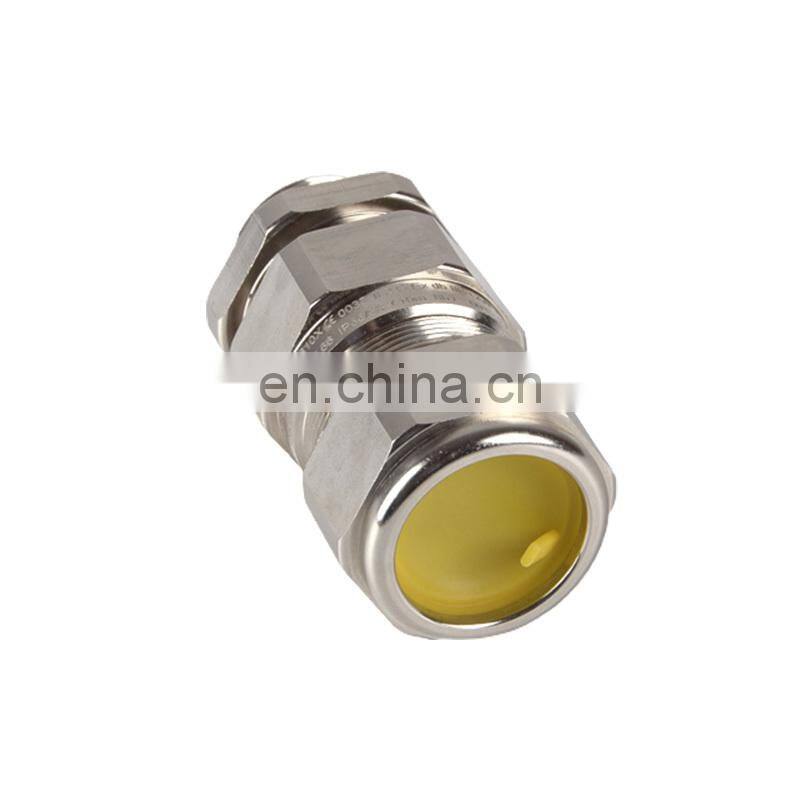

Cable Glands for Laying Armored Cable With Double Seal
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2016
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Custom High Purity Brass Nickel Plated Cable ConnectorNegotiableMOQ: 1 -
Beisit M16 U/L CE IP68 Adjustable 5-10 mm Cable Range Plastic Nylon Cable Gland M16NegotiableMOQ: 1
-
High Quality Nickel Plated Brass Metal PG Typr IP68 Waterproof Cable JointNegotiableMOQ: 1
-
Factory Outlet High Quality Nylon Cord Grip Waterproof 16mm Cable GlandNegotiableMOQ: 1
-
20mm Grey Nylon Cable Gland With Small Hole Cable Gland Used For Panel EnclosureNegotiableMOQ: 1
Welcome to Beisit, the professional cable gland manufacture in Hangzhou China, Beisit have full automatic production line with top-advanced production equipments and full automatic assembly line, all process under the quality management system strictly to make sure you satisfied with our products.
*Strong R&D, Innovation, Special Customized.
*Ultimate Test Capacity.
*Fast Delivery, overseas warehouse.
*Standard setting Enterprise For Cable Gland in China.

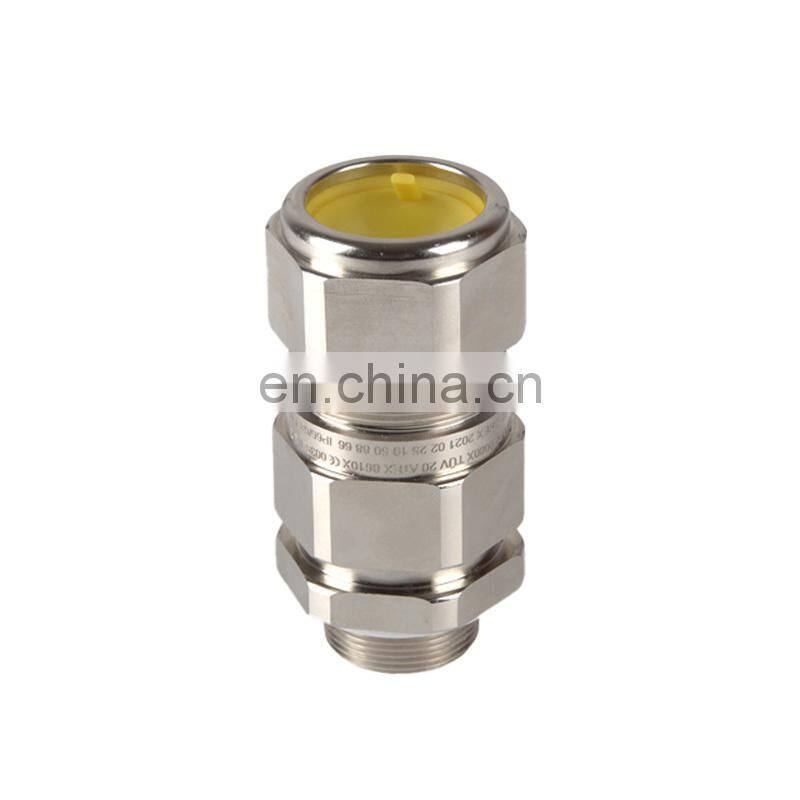

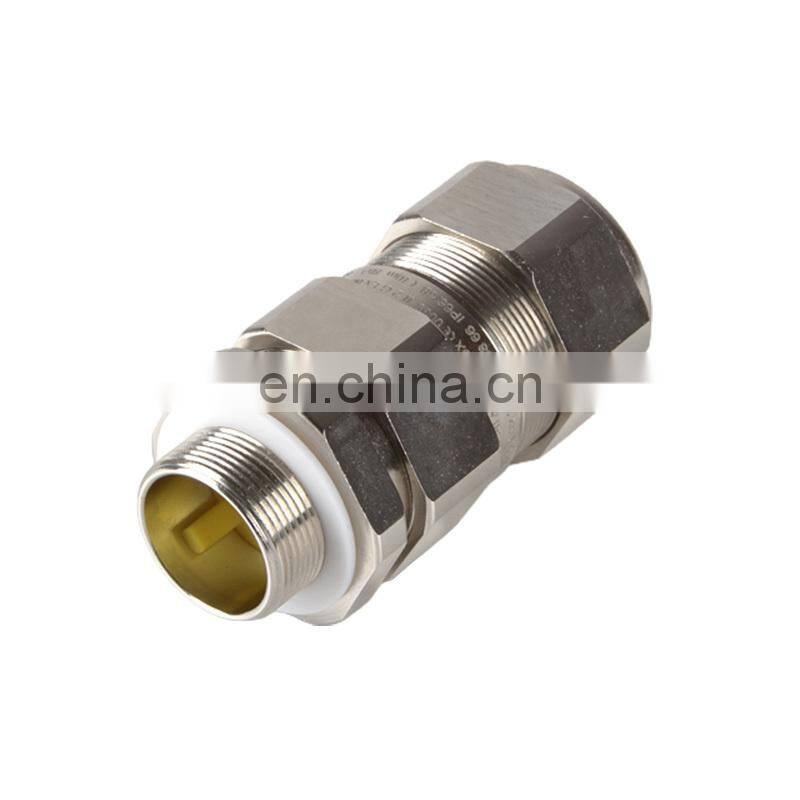

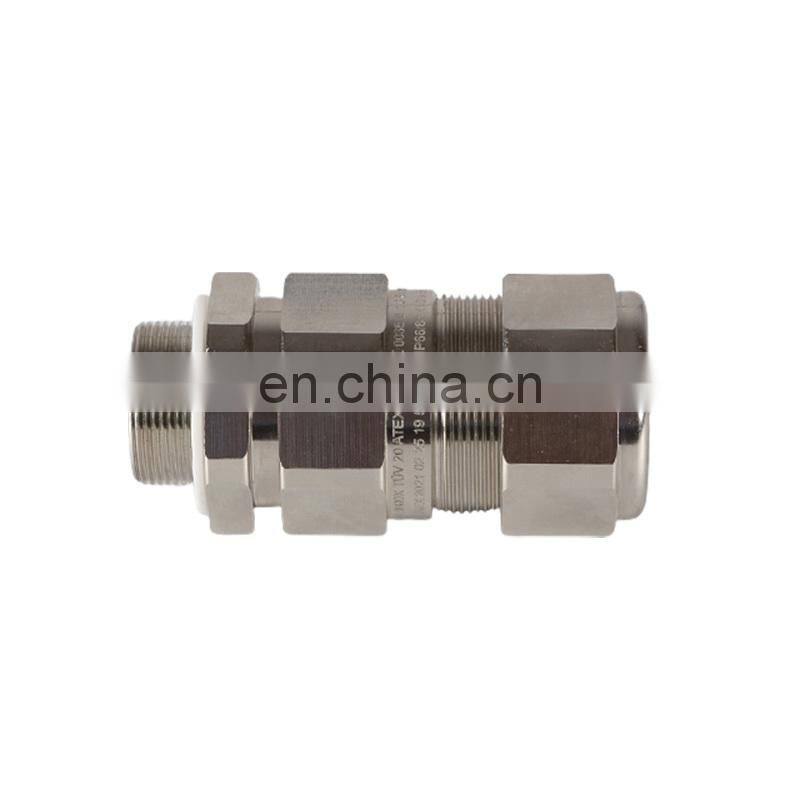

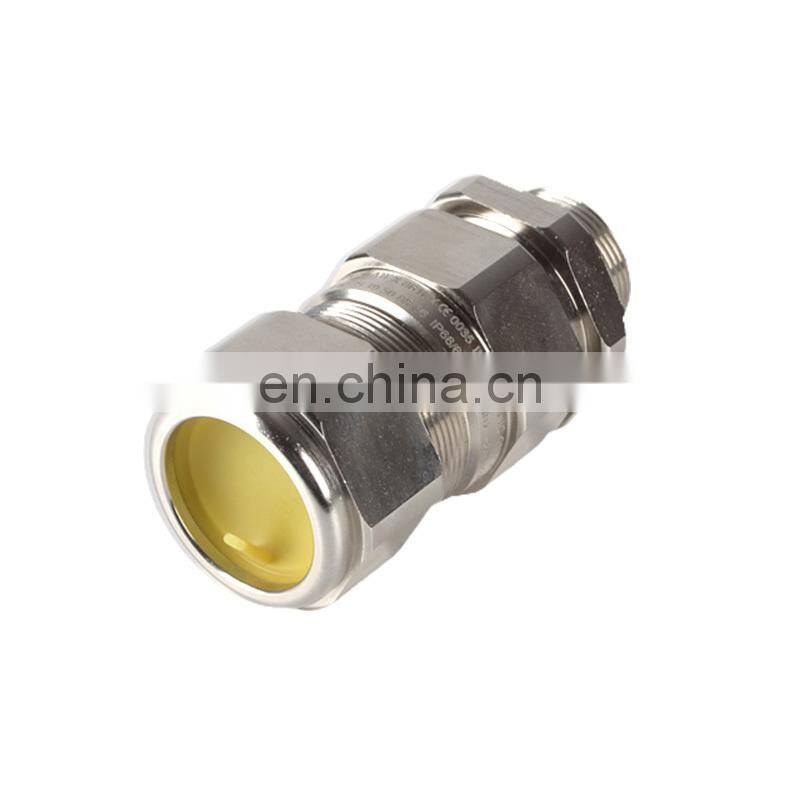

Beisit Double Seal Armored Cable Gland, Waterproof IP68 Grade Armoured Cable Gland, the product have the following certification included.
Features:
*EMC tested.
*0-2.5mm Armoured range.
*Anti-slip design for the seal to body, make your installation easier.
*Unified wrench specification location used for your installation.
*Complete specifications and models.
*0-2.5mm Armoured range.
*Anti-slip design for the seal to body, make your installation easier.
*Unified wrench specification location used for your installation.
*Complete specifications and models.
Technical parameters:
*The test temperature is -65℃~150℃, and the working temperature is -60℃~130℃.
*IP68 (10m/8h).
*Loading test diameter 20 times (100% tension).
*Hydrostatic test 30bar.
Application:
*Comply with the latest version of IECEx and ATEX standards
*Suitable for gas 1.2 zone and dust 20, 21, 22 zone
*Indoor/outdoor SWA,AWA,STA,SWB,ASA, PWA,EMC,CY/SY, and other armoured cable
*Cable type:
For Single Wire Armoured Cable,
For Aluminum Wire Armoured Cable,
For Steel-tape Armoured Cable, Braided Armoured Cable,
For Aluminum-tape Armoured Cable, Flexible Wire Armoured Cable,
For Soft-Shielding Armoured Cable, Knitted Armoured Cable and etc.

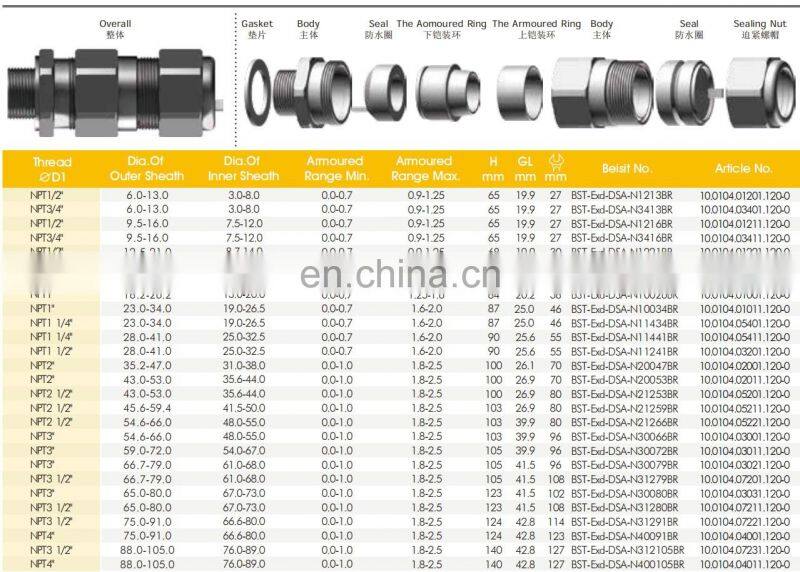

Full specification of Cable glands for laying armored cable with double seal as your choice, let us know your requirements, we can reommend the specification for you and customized welcome.
Material Option: HPb59-1,H62,304,316,316L can be offered.
Screw SPEC: PG, G, M, NPT.

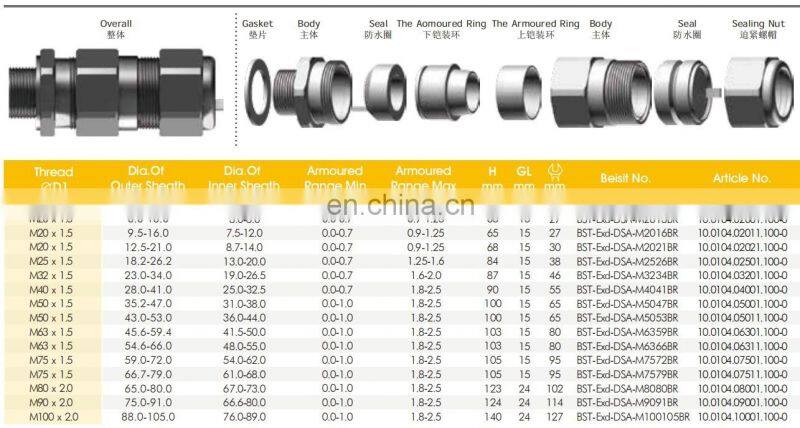

Metric Cable glands for laying armored cable with double seal
Application example:
Packaging & Shipping
1.Trade Items Of Cable glands for laying armored cable with double seal
| Payment | L/C, T/T, Western Union, MoneyGram, Paypal |
| Port | Shanghai or Ningbo |
| MOQ | 500PCS |
| Supply Ability | 2Twenty-Foot Container/Week |
| OEM | Accept |
| Delivery | A.By Courier: 3-5 Working days by special offer |
| B.By Air: 5-7 Working days at appointed airport | |
| C.By Sea: 10-25 Working days at appointed port |
2.Packaging Of Products
A. Common Packing: Certain PCS + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister etc, according to your requirements.
Delivery
| A.By Courier: 3-5 Working days by special offer |
| B.By Air: 5-7 Working days at appointed airport |
| C.By Sea: 10-25 Working days at appointed port |
