Home > Products > Hydraulic Quick Couplings > High Quality 1/2 Inch Agricultural Hydraulic Quick Connect Needle Type Coupling Set ISO 7241-A BSP Thread

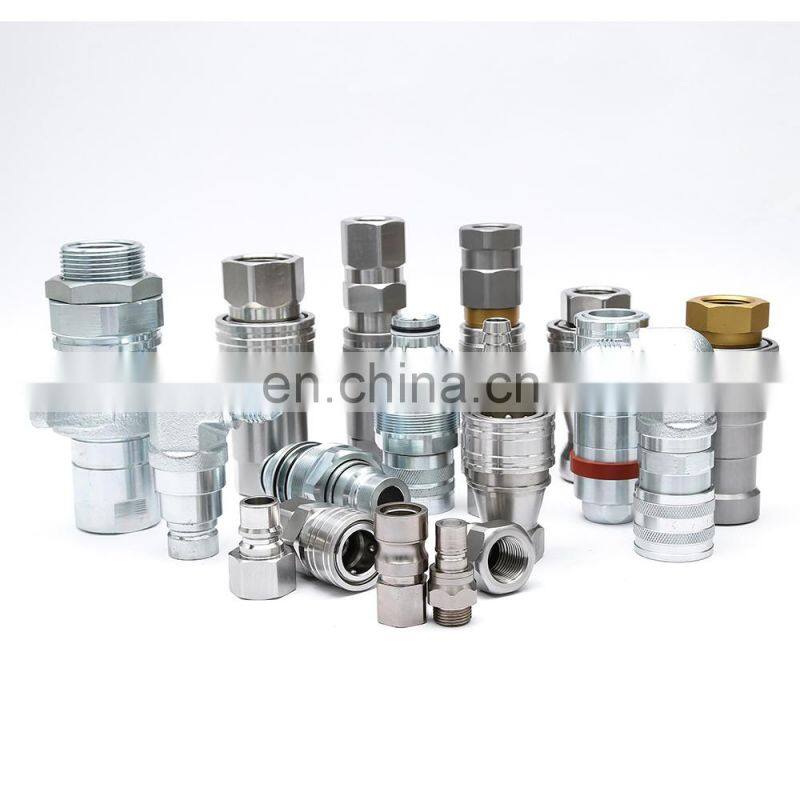

High Quality 1/2 Inch Agricultural Hydraulic Quick Connect Needle Type Coupling Set ISO 7241-A BSP Thread
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Direct Supply Flat Face Type 1/2 Inch ISO 16028 Hydraulic Quick Release Coupling for Skid Steer Loader
-
High Precision Poppet Type Female and Male 1/2 Inch ISO 7241-A ANV Hydraulic Quick Coupling for Tractor
-
Hydraulic Hose Pipe Fittings Quick Couplings Quick Disconnect Hydraulic Coupler for Industrial Tractor
-
High Pressure 10% Discount no Leak 1/2 Inch ISO 7241-A ANV Poppet Type Hydraulic Quick Coupling for Tractor
-
Hydraulic Quick Connect Male Coupler for BOBCAT Series Loaders Steel Plated Quick Coupler Socket
-
3/8'' Hydraulic Flat-face Couplings (ISO 16028) With Pressure Eliminator Hydraulic Systems With Flat-face Couplings
Product Description
Product Description
This series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.
Features and Materials
Materials:
1. Body: High grade carbon steel with heat treated wear parts
2. Seals: Polyurethane and NBR (backup ring PTFE)
3.Wide Variety of Seal Materials Available, we can design and change the coupling according to Customers' requirement. Also available on request: NPTF and UNF Threads
Features:
1. Poppet valves available to prevent uncoupled leakage
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure
3. Critical parts are induction hardened for durability
4. Dependable ball-locking mechanism holds the mating halves together
5. Socket and plug are precision machined from solid bar stock
6. Industry Interchangeability - mates with other manufacturers' ISO 7241 couplings, can be interchanged with Parker 6600, Nitto 280, Faster ANV, Cejn X95 series
7.Dust cap available, guidevalve with mechanical backstop
Specifications
Body Size(Inch） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||||||
Rate pressure(Mpa) | 50 | 30 | 30 | 30 | 25 | 25 | 20 | 15 | |||||||
Rated Flow(L/Min) | 9 | 30 | 75 | 180 | 270 | 330 | 450 | 900 | |||||||
Temperture Range | -25°C to +125°C | ||||||||||||||
Company Profile
Established in 2004. Our company is a professional manufacturer and exporter that is concerned with the design, development and production of hydraulic fittings. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
