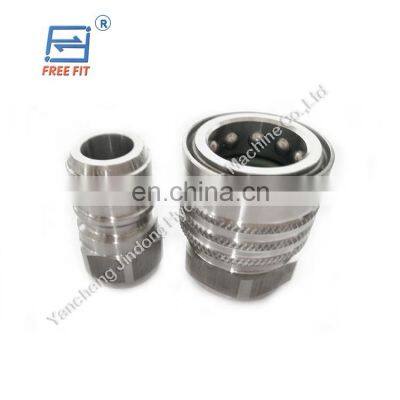

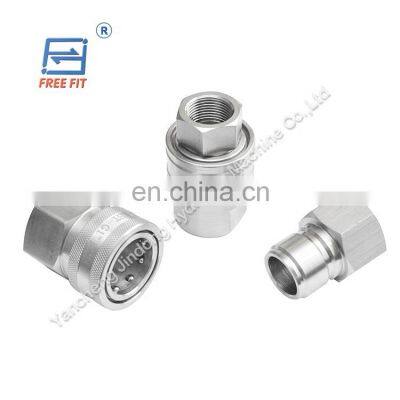

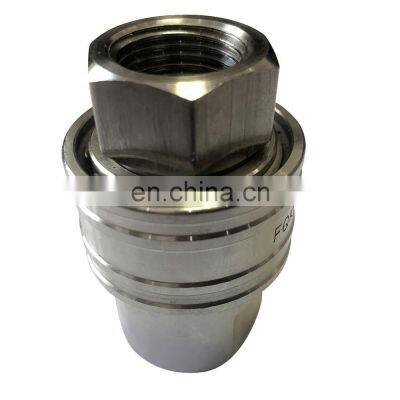

Injection Molding Hydraulic Coupler Straight Through Ball Lock Hydraulic Fitting
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fluid Couplings for Injection Molding Straight-through Design Hansen CouplingNegotiableMOQ: 1 -
High Pressure no Leak Flat Face Type 1/2 Inch ISO 16028 Hydraulic Quick Coupling for Skid Steer LoaderNegotiableMOQ: 1
-
Made in China Female and Male Poppet Type 1/2 Inch ISO 7241-A Hydraulic Quick Coupling for TractorNegotiableMOQ: 1
-
Quick Connect Couplings With Pressure Eliminator TEMA Close Type Quick CouplingNegotiableMOQ: 1
-
TEMA Close Type Quick Coupling for Construction Equipment Truck Type High Flow Hydraulic Quick CouplersNegotiableMOQ: 1
Product Description
Series ST straight through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 2½".
Product Show
Specifications
Body size(inch) |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
|||||||
Brass rated pressure |
17.5 |
36 |
18.5 |
15 |
12 |
12 |
12 |
9.5 |
|||||||
Steel rated pressure |
38 |
38 |
24 |
18.5 |
18.5 |
14 |
12 |
9.5 |
|||||||
Stainless steel rated pressure |
35 |
30 |
25 |
21 |
21 |
10 |
10 |
8 |
|||||||
Rated flow (L/min) |
5 |
17 |
50 |
75 |
190 |
270 |
750 |
1600 |
|||||||
Temperature range (NBR) |
-25℃ to +125℃ |
||||||||||||||
Features:
1.Ball lock
2. Manual operation
3. Smooth bore permits free flow of liquid or gas
4. Male and female NPTF, BSPP and hose stem connections
