Fluid Couplings for Injection Molding Straight-through Design Hansen Coupling

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Series ST straight through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 2½".

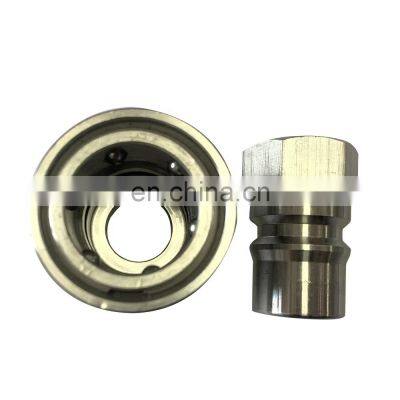

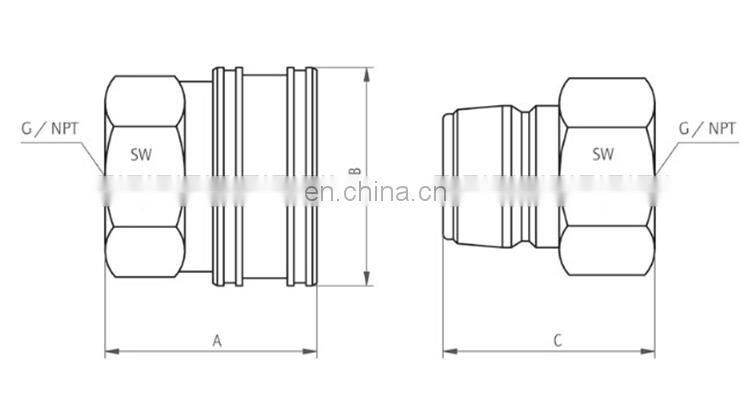

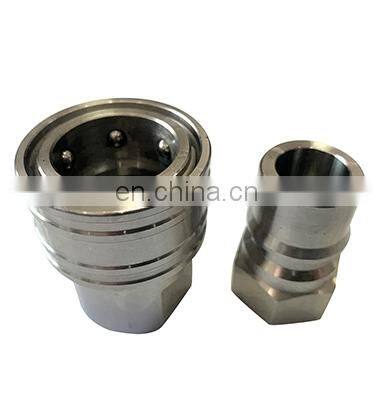

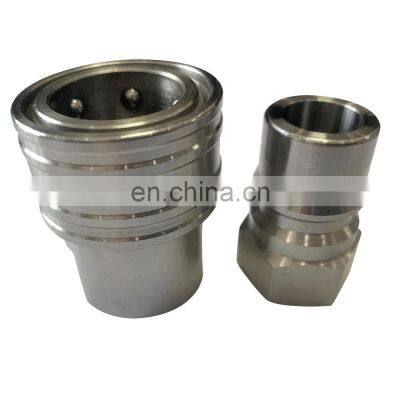

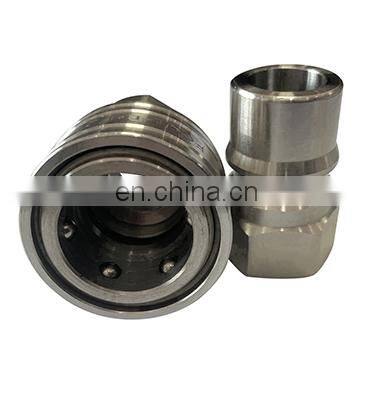

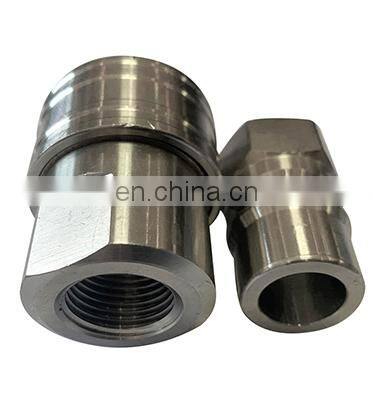

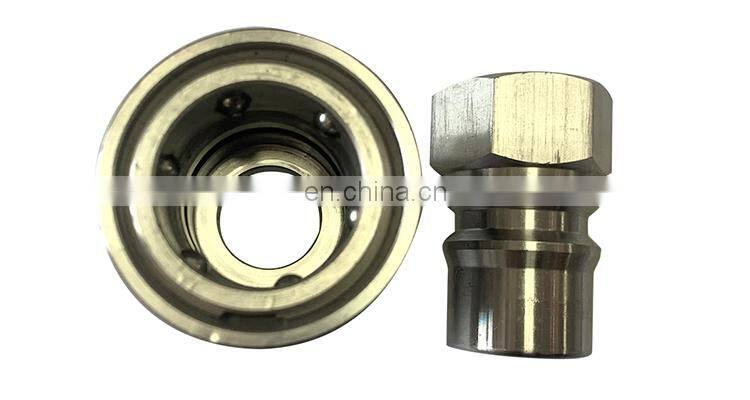

Product Show

Specifications

Body size(inch)	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2
Brass rated pressure	17.5	36	18.5	15	12	12	12	9.5
Steel rated pressure	38	38	24	18.5	18.5	14	12	9.5
Stainless steel rated pressure	35	30	25	21	21	10	10	8

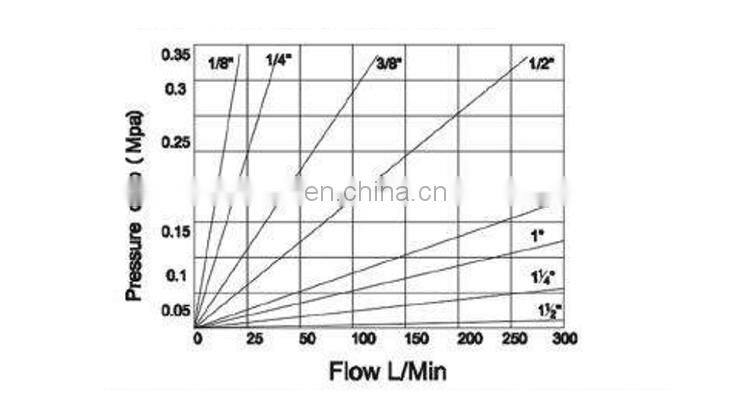

Rated flow (L/min)	5	17	50	75	190	270	750	1600
Temperature range (NBR)	-25℃ to +125℃

Features:

1.Ball lock

2. Manual operation

3. Smooth bore permits free flow of liquid or gas

4. Male and female NPTF, BSPP and hose stem connections

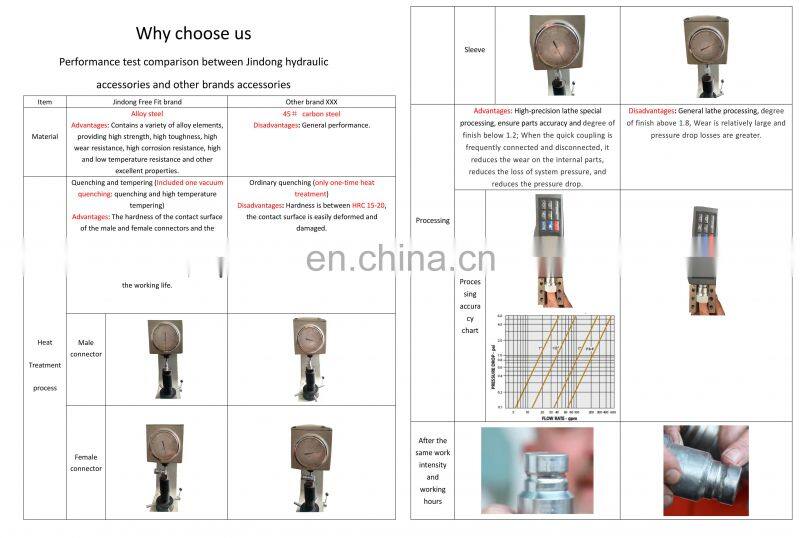

Why Choose Us

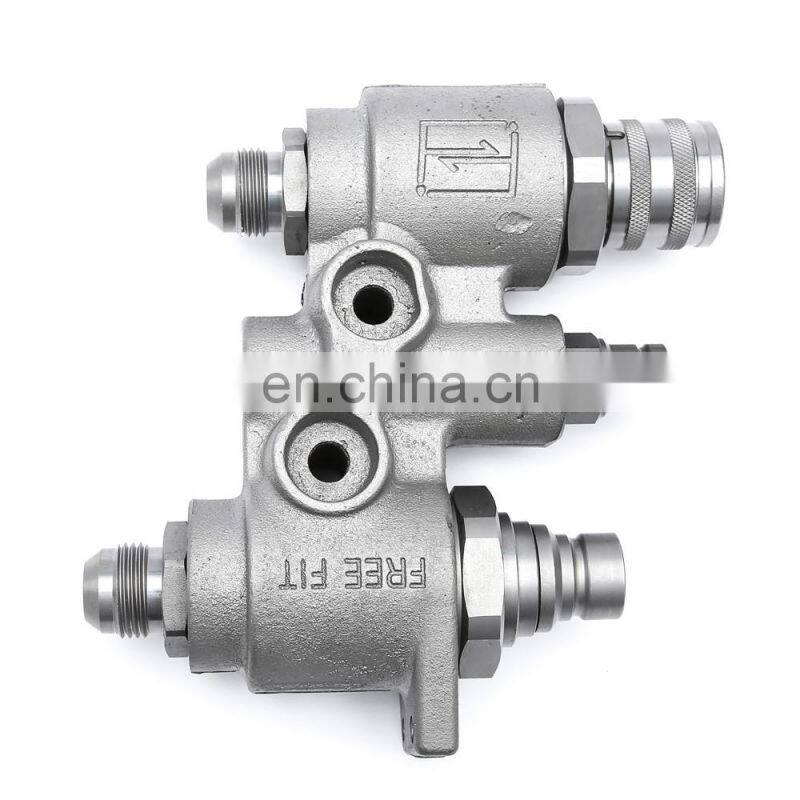

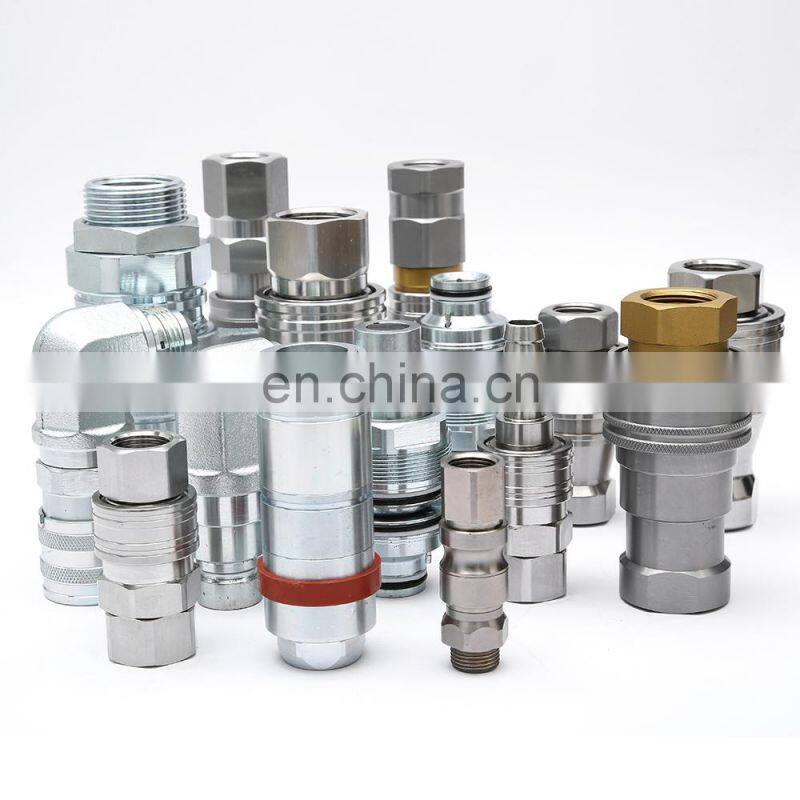

Recommend Products

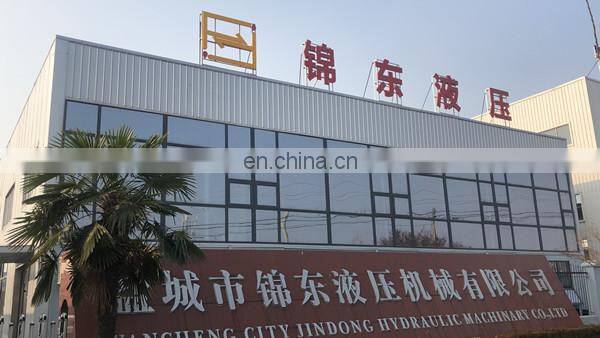

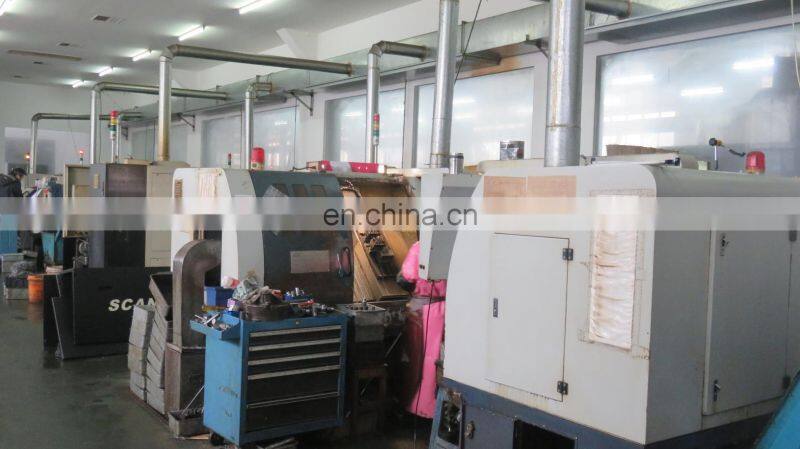

Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
