Home > Products > Hydraulic Quick Couplings > High Pressure no Leak Flat Face Type 1/2 Inch ISO 16028 Hydraulic Quick Coupling for Skid Steer Loader

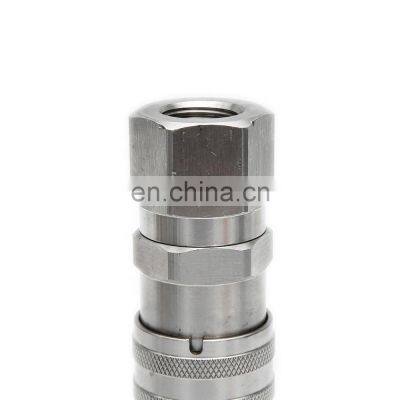

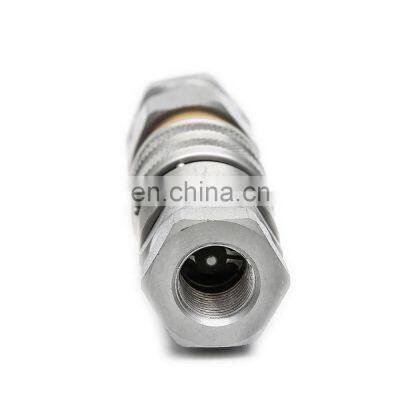

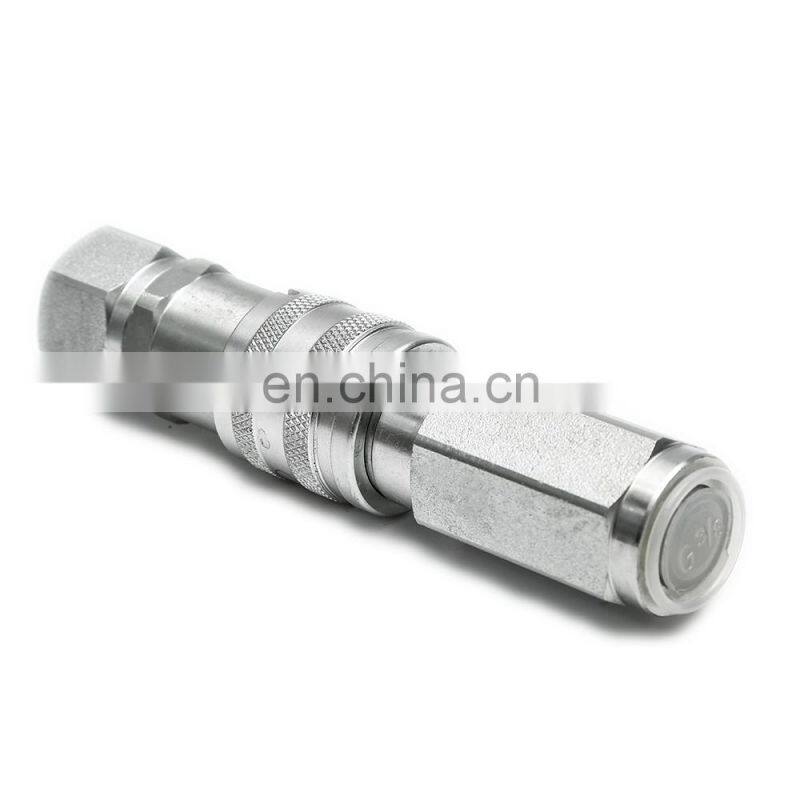

High Pressure no Leak Flat Face Type 1/2 Inch ISO 16028 Hydraulic Quick Coupling for Skid Steer Loader

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

This series is widely used in the following public facilities: leakage of hydraulic oil will constitute a serious safety hazard, especially for the overhead bucket crane used for the maintenance of high-voltage power transmission line, such joints are also used in the construction, railway maintenance and the rapid switching of hydraulic machines and tools in the mining industry, which are easy to clean and can be ideally used in such special environment.

Features and Materials

Materials:

1. Socket: steel (Yellow zinc-chromate plating) or 304 stainless steel or 316 SS

2.Plug: Hardened steel (Zinc-chromate plating) or 304 stainless steel or 316 SS

3.Wide Variety of Seal Materials Available, we can design and change the seal according to Customer’s usage.

Features:

1.FF is designed to meet or exceed the requirements called out in ISO 16028 as wells as all HTMA specifications. It can interchange with Parker FE/FF/FEM series, Hansen, Faster FF series, DNP PLK4 and so on.

2.Heavy Duty Construction - High strength steel with white zinc or yellow dichromate plating

3.Flush-faced poppet is available for a minimum air inclusion when connection, minimum Fluid loss when disconnection as well as easy clearing.

4. A safety sleeve lock prevents accidental ,push-to connect system allows one hand operation when connect the coupling.

5. 4:1 Safety Factor.

6. Industry Interchangeability - mates with other manufacturers' ISO 16028 couplings

7.The CP option allows for connection against static pressures without spillage or damage to the coupling. Construction, portable hydraulic tools and utility equipment are a few of the many industries where the connect-under-pressure option saves valuable time & money.

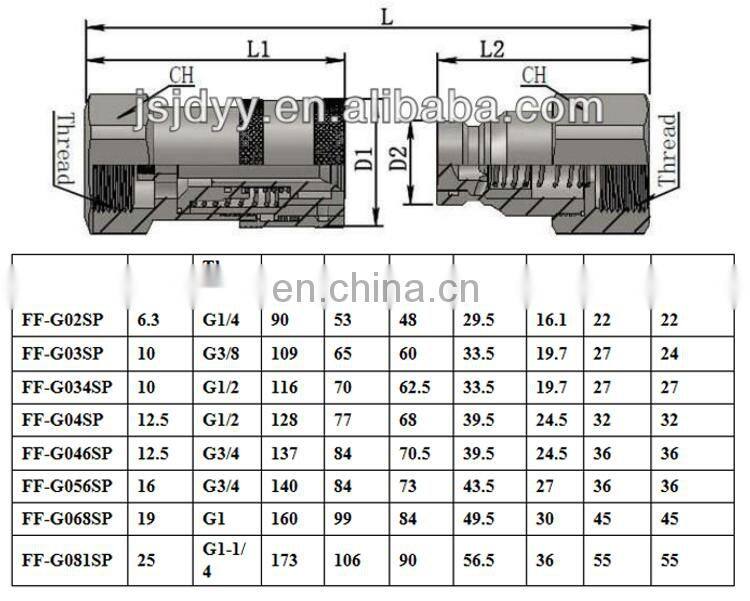

Specifications

Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access. We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates. Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
