High pressure 800bar screw type female and male VVS quick release connect couplings for Machinery

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

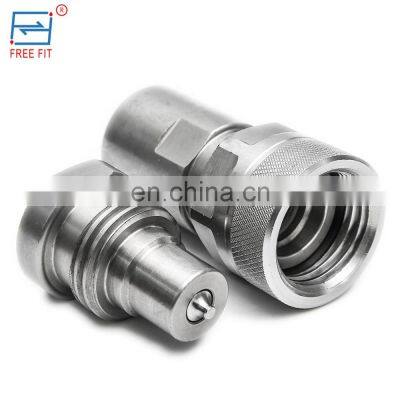

VVS high pressure screw type quick couplings

Produce details

( Specification factor)
Body size (inch)	1/4	3/8	1/2	3/4	1	11/4	11/2	2
Rated Pressure(Mpa)	80	80	73	73	63	60	40	35
Rated Flow(L/Min)	8	18	40	55	100	140	300	1000
Temperture Range	-25℃ -- +125℃

Free Kit VVS series is screw-on couplings, commonly used for applications characterized by very high working pressures and peaks. Heavy duty internal components guarantee the maximum safety and reliability. Faster proprietary profile. Interchangeable with Faster VV series.

Materials:

1. Body: Carbon steel (Yellow zinc-chromate plating)

2.Seal:NBR

3.Thread: BSPP(G) or NPT female thread, other thread available for customized order

4.Wide Variety of Materials Available, we can design and change the coupling according to Customers' requirement

Features:

1.Heavy-duty design as standard, chrome plating treatment provides advanced anti-rust performance

2.Resistance damage from high flow and the pressure of impulse that providing advanced perfo rmance

3.Employsa threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together for connection.

4.Assembled valve seal can permits full pressure connect and disconnect, without seal washout

5.Connect with pressure up to 5 MPA is possible

6.Interchange with Faster VVS Series

7.Disconnexion by unscrewing the two parts, shut off by poppet valve. This coupling is mainly applied for Agriculture, Industry, hydraulic tools, Earth moving, Building & Construction.

Our quality control system

ABOUT US

Our company established in 2004. Our company is a professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic quick coplings and hydraulic valves adaptors. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the nearfuture.

Certifications

Rated Products

Packaging & Shipping

PACKAGE:

1pc/bag or 1pc/box,40pc/ carton or by customers'choose

DELIVERY TIME:

FAQ

How about the guarantee?

As a rule, it is one year.

How about the progress

All the products are made by carbon-alloy which is produced by the famous factory of China. the special parts have been made by harden treatment( quenching treatment)

Can you design specially for the Customers?

Yes, we can . in fact, we have designed many types of quick couplings, connector for different lines of customers, such as Construction, Chemical, Oil and Aerospace.

Do you have special quality guarantee?

Yes, all the products are made by Robot (automatic product line)

Do you OEM for the customers?

Yes,we do

Are you the good partner all the time?

Yes, we are the factory which are worthy of your cooperation all the time.we have 16 experience of producing and designing the hydraulic quick couplings.
