YGC-FS-5V-V 0-5V output 5V voltage wind speed sensor

YGC-FS-5V-V 0-5V output 5V voltage wind speed sensor

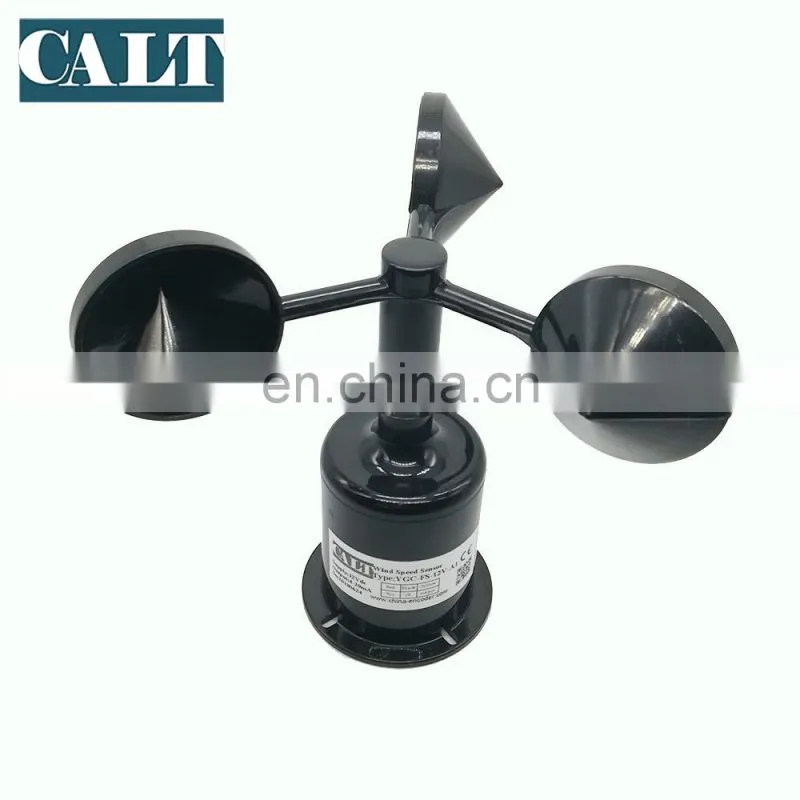

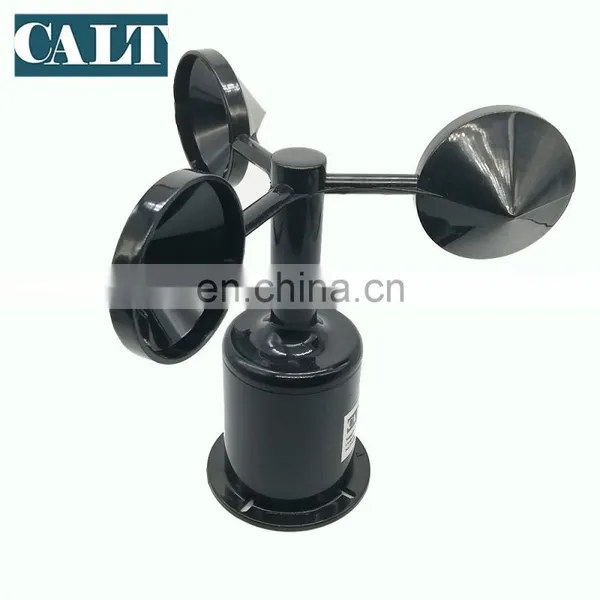

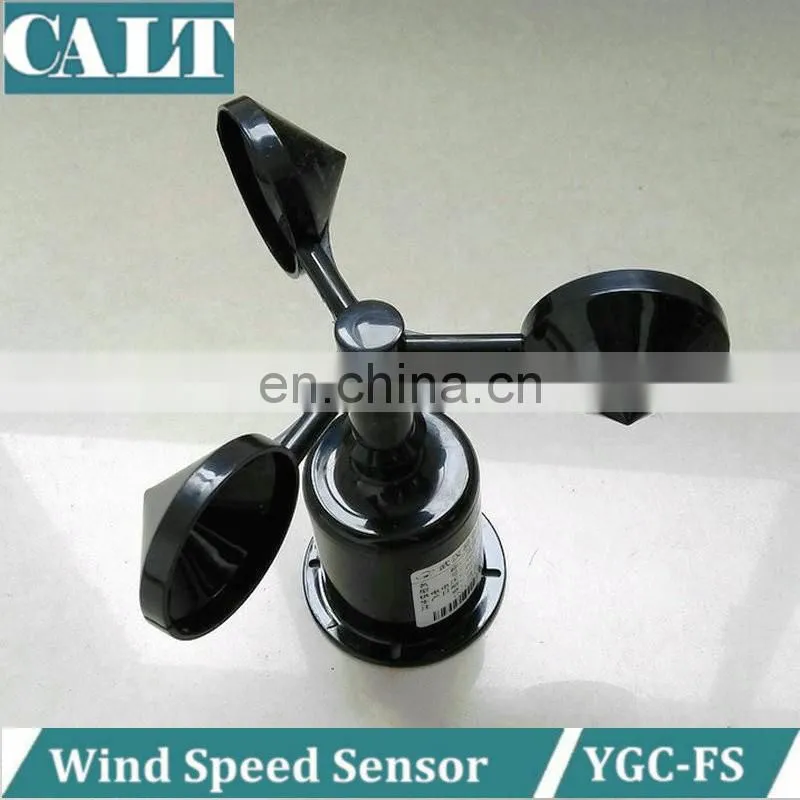

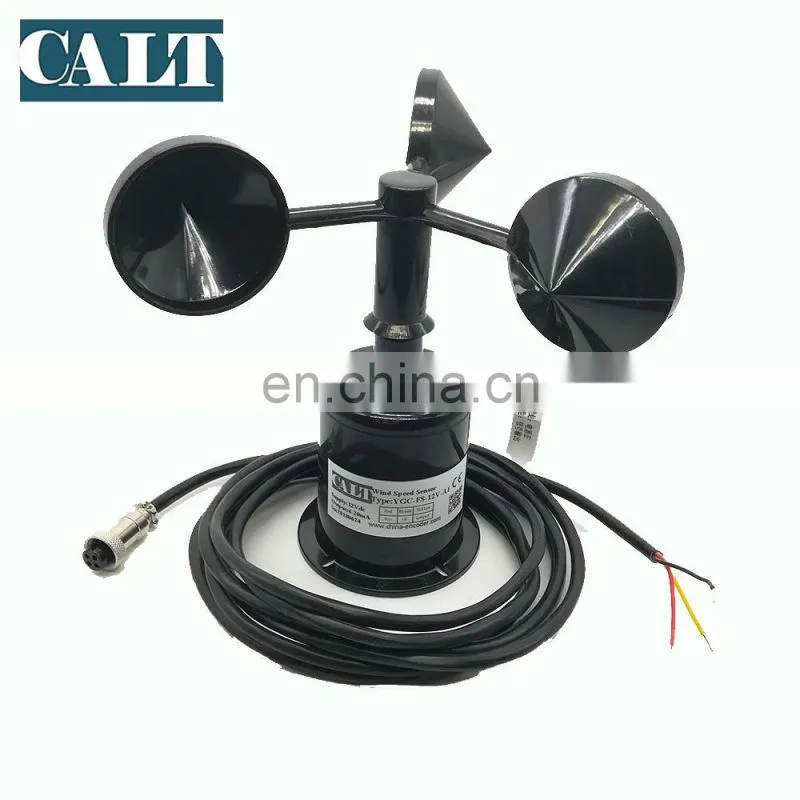

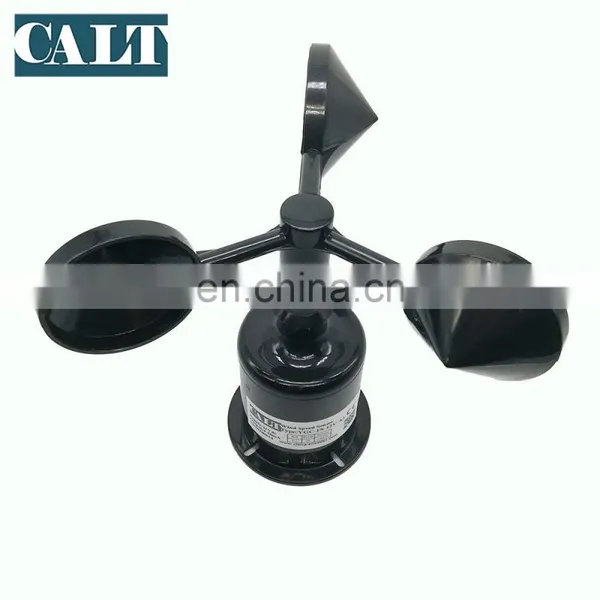

 YGC-FS wind speed sensor (transducer) adopts the traditional three-wind cup wind speed sensor structure, the wind cup uses ABS material, high strength, good start.

Technical Parameters:

Measuring range: √□ 0 ~ 45m / s
                                 □ 0 ~ 70m / s

                                 □ Others
Accuracy: ± (0.3 + 0.03V) m / s (V: wind speed)
Resolution: 0.1m / s
Starting wind speed: ≤0.5m / s
Power supply: √□ DC 5V
                          □ DC 12V
                          □ DC 24V
                          □ Others
Output form: □ pulse: pulse signal
                        □ Current: 4 ~ 20mA
                        √□ Voltage: 0 ~ 5V
                        □ Voltage: 1 ~ 5V
                        □ Voltage: 0 ~ 2.5V
                        □ RS232
                        □ RS485
                        □ Relay switch output
                        □ TTL level: (□ frequency □ pulse width)
                        □Others

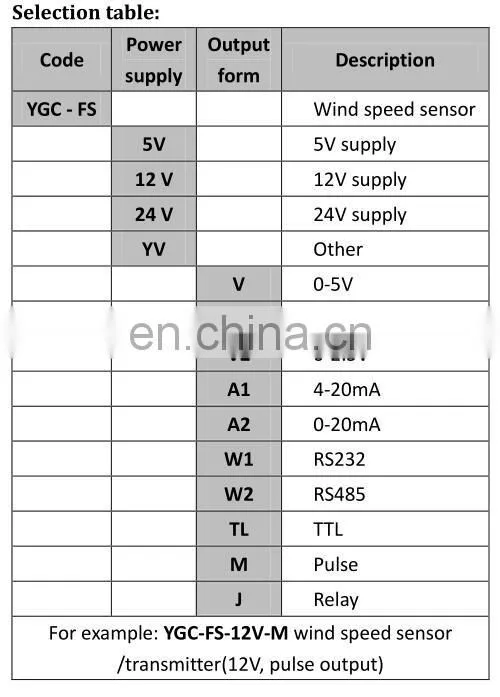

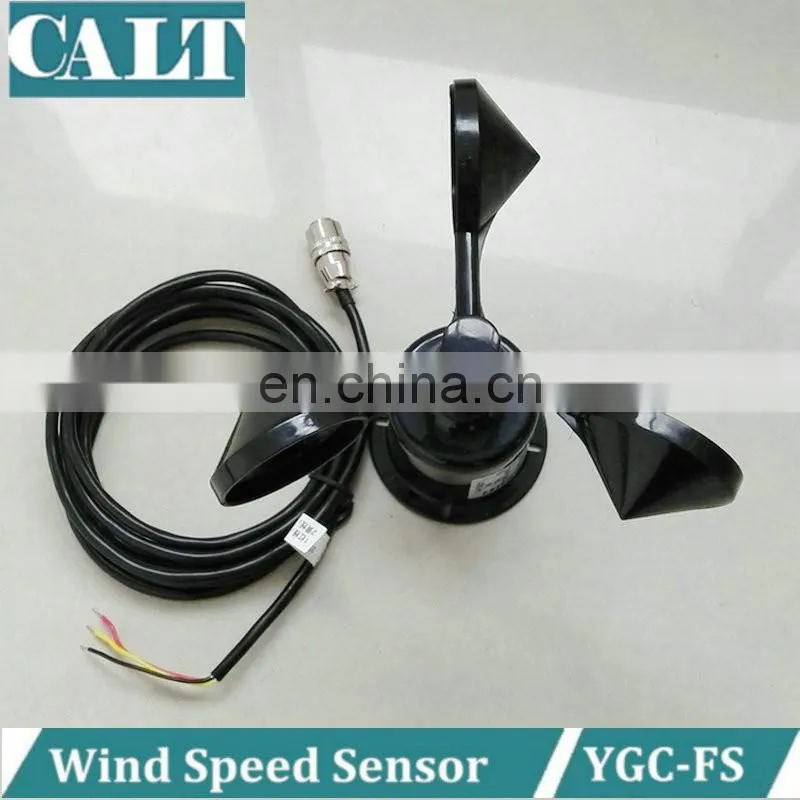

Instrument length: √□ Standard: 2.5 meters
                                  □ Others
Load capacity: Current-type output impedance ≤ 600Ω
                           Voltage-based output impedance ≥ 1KΩ
Working environment: temperature -40 ℃ ~ 80 ℃; humidity ≤ 100% RH
Protection class: IP45
Cable rating: Rated voltage: 300V 80 ℃
Product weight: 130 g (depending on model)
Power consumption: 50 mW (depending on model)
* Operating time: 10ms or less
* Reset time: 5ms or less
* Insulation resistance: 1000MΩ or more
* Power consumption: 400mW
* Rated and maximum load: AC250V 5A, DC30V 5A
* Mechanical life: more than 20 million times
* Electrical life: more than 70,000 times (2A can reach more than 300,000 times)
Note: The * parameter in this document is the wind speed with relay function.

Calculation formula

Pulse type (high level 5V, low level 0V):
W = 0; (F = 0)

W = 0.1 + 0.0875 × F (F ≠ 0)
(W: wind speed indication m / s; F: pulse signal frequency)

Current type (range 45m / s):
W = (I-4) 45/16
(W: wind speed indication m / s; I: current signal 4-20mA)

Voltage type (range 45m / s):
W = V / 5 × 45
(W: wind speed indication m / s; V: voltage signal 0-5V)

 Structure

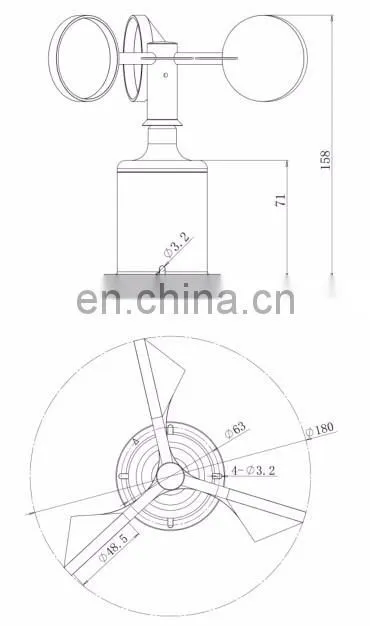

Installation aperture: 3.2mm

Distribution diameter: 63mm

Air Diameter: 15mm (25mm recommended for easy routing)
