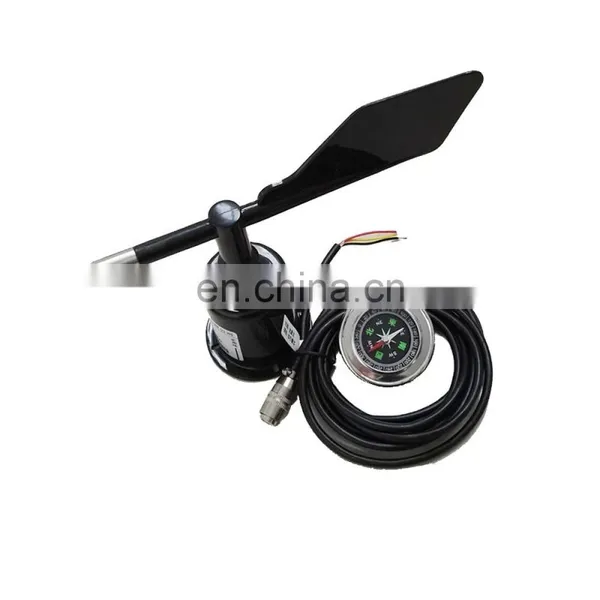

Weather vane 0-5v RS485 4-20mA wind transducer ABS aneometer 0-360 wind direction sensor
Features:
YGC-FX wind sensor (transmitter) internal precision angle sensor, and use low-inertia light metal wind vane response to the wind, dynamic characteristics.
It is widely used in meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation. And other fields.Technical Parameters:
Measuring range: 0~360°
Accuracy: ±1°
Starting wind speed: ≤0.5m / s
Power supply: √□ DC 5V
□ DC 12V
□ DC 24V
□ Others
Output form: □ Voltage: 0 ~ 5V
□ Voltage: 1 ~ 5V
□ Current: 4 ~ 20mA
□ RS232
√ □ RS485
□ pulse: pulse signal
□TTL level: (□frequency □pulse width)
□Others
Instrument length: √□ Standard: 2.5 m
□ Others
Load capacity: Current-type output impedance ≤ 250Ω
Voltage-based output impedance ≥ 1KΩ
Working environment: temperature -40 ℃ ~ 80 ℃; humidity ≤ 100% RH
Protection class: IP45
Cable rating: Rated voltage: 300V
Temperature rating: 80 ℃
Product weight: 210 g
Product power consumption: 150mW
Calculation formula
Voltage type (0 ~ 5V output):
D = 360 ° × V / 5
(D is the wind direction indication value; V is the output voltage)
Current type (4 to 20 mA output):
D = 360 ° (I-4) / 16
(D for the wind direction; I for the output current mA)
Structure
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
Factory Building
Welcome to vist us!
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union or money gramm.
Q: What's your warranty ?
A: 12 months. If the items you purchased from our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.
Q: What's your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
