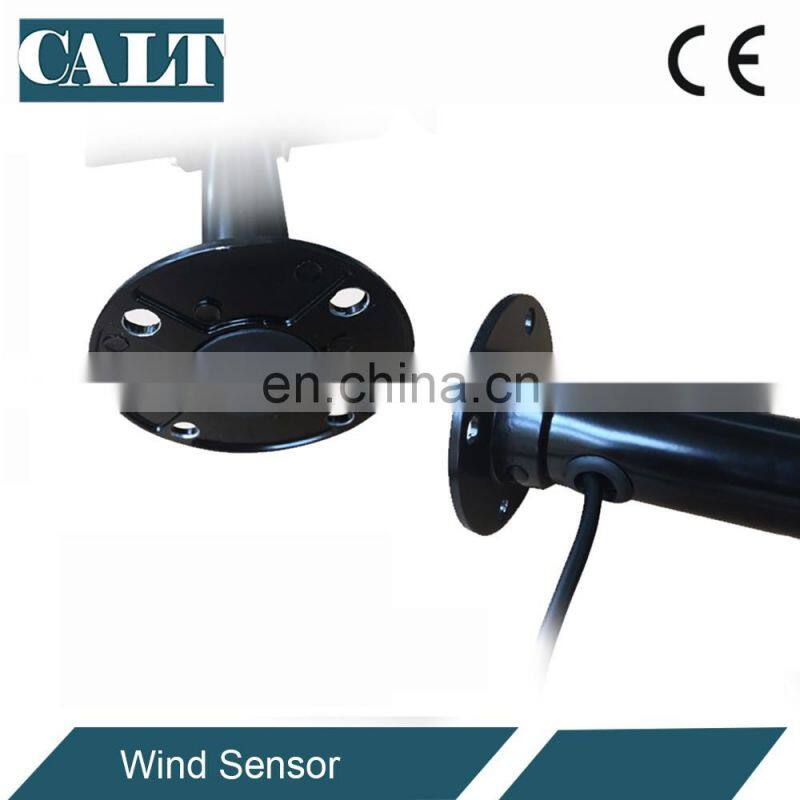

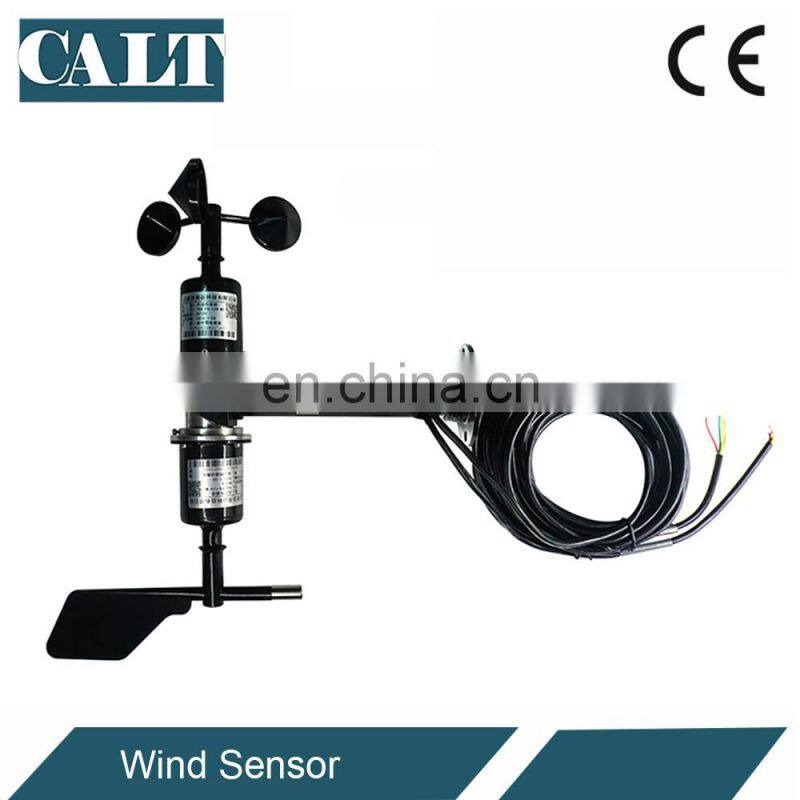

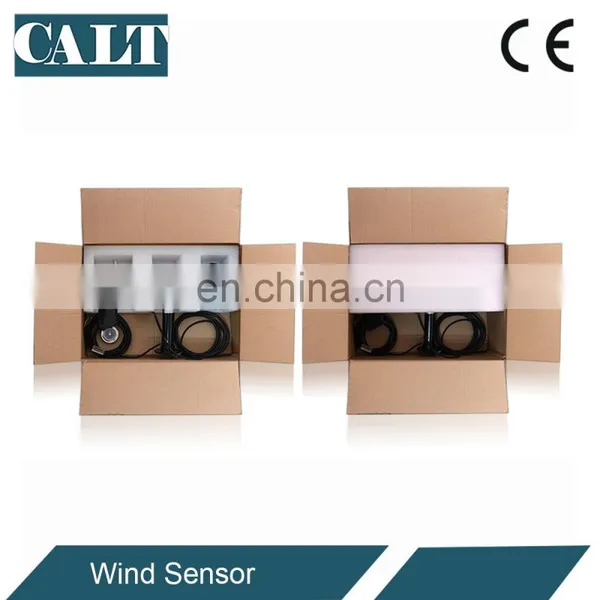

CALT YGC-Fs-FX 12v voltage weather station wind direction speed sensor
YGC-FX wind sensor (transmitter) internal precision angle sensor, and use low-inertia light metal wind vane response to the wind, dynamic characteristics.
It is widely used in meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation. And other fields.
Technical Parameters:
Measuring range:YGC-FX: 0～360° YGC-FS: □ 0 ~ 45m / s √□ 0 ~ 70m / s□ Others
Accuracy: YGC-FX:±1° YGC-FS: ± (0.3 + 0.03V) m / s (V: wind speed)
Starting wind speed: ≤0.5m / s
Power supply: √□ DC 5V
□ DC 12V
□ DC 24V
□ Others
Output form: □ Voltage: 0 ~ 5V
√□ Voltage: 1 ~ 5V
□ Current: 4 ~ 20mA
□ RS232
□ RS485
□ pulse: pulse signal
□TTL level: (□frequency □pulse width)
□Others
Instrument length: √□ Standard: 2.5 m
□ Others
Load capacity: Current-type output impedance ≤ 250Ω
Voltage-based output impedance ≥ 1KΩ
Working environment: temperature -40 ℃ ~ 80 ℃; humidity ≤ 100% RH
Protection class: IP45
Cable rating: Rated voltage: 300V
Temperature rating: 80 ℃
Product weight: 210 g
Product power consumption: 150mW
Calculation formula
YGC-FX:
Voltage type (0 ~ 5V output):
D = 360 ° × V / 5
(D is the wind direction indication value; V is the output voltage)
Current type (4 to 20 mA output):
D = 360 ° (I-4) / 16
(D for the wind direction; I for the output current mA)
YGC-FS:
Pulse type (high level 5V, low level 0V):
W = 0; (F = 0)
W = 0.1 + 0.0875 × F (F ≠ 0)
(W: wind speed indication m / s; F: pulse signal frequency)
Current type (range 45m / s):
W = (I-4) 45/16
(W: wind speed indication m / s; I: current signal 4-20mA)
Voltage type (range 45m / s):
W = V / 5 × 45
(W: wind speed indication m / s; V: voltage signal 0-5V)W = 0; (F = 0)
W = 0.1 + 0.0875 × F (F ≠ 0)
(W: wind speed indication m / s; F: pulse signal frequency)

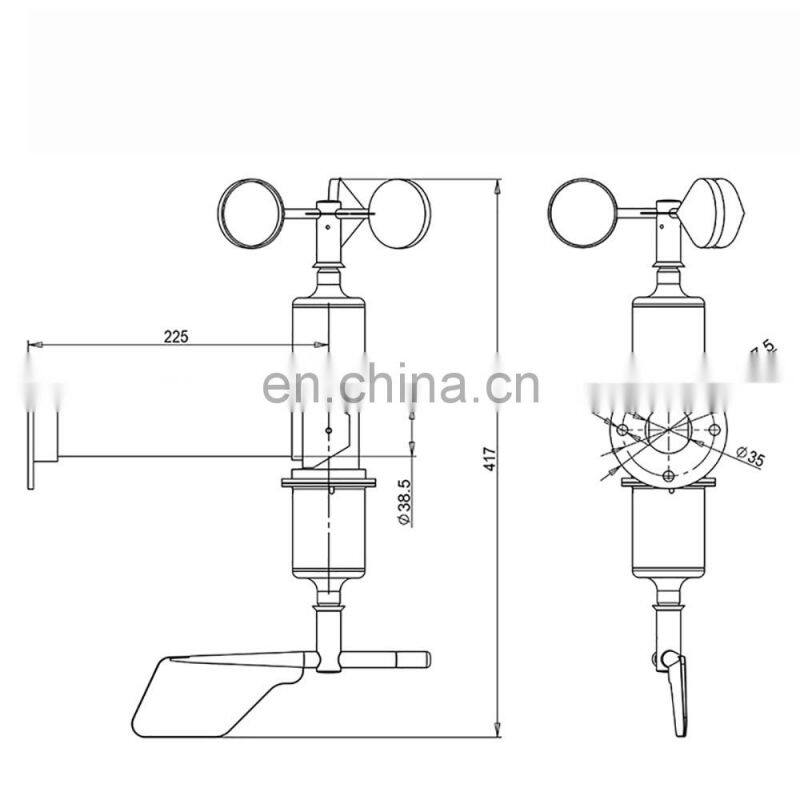

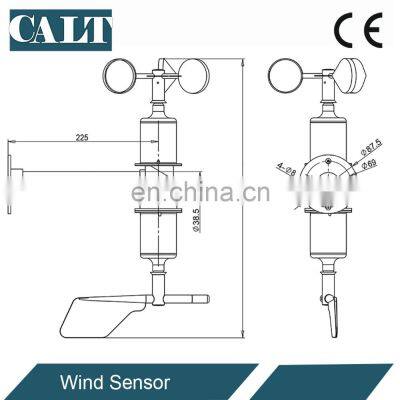

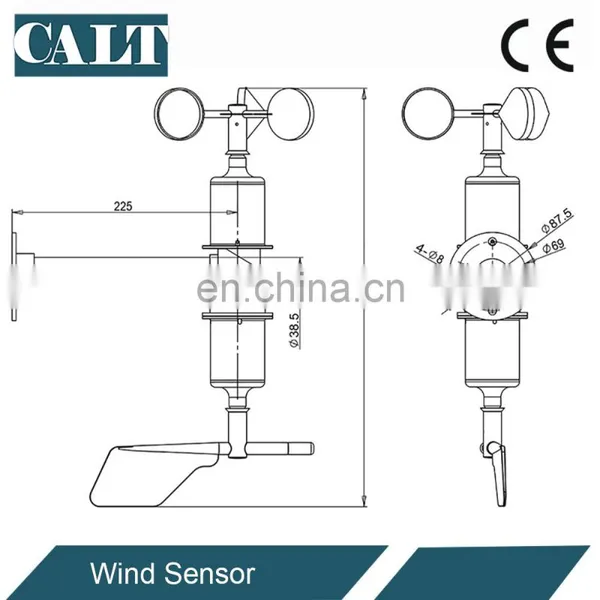

Structure
