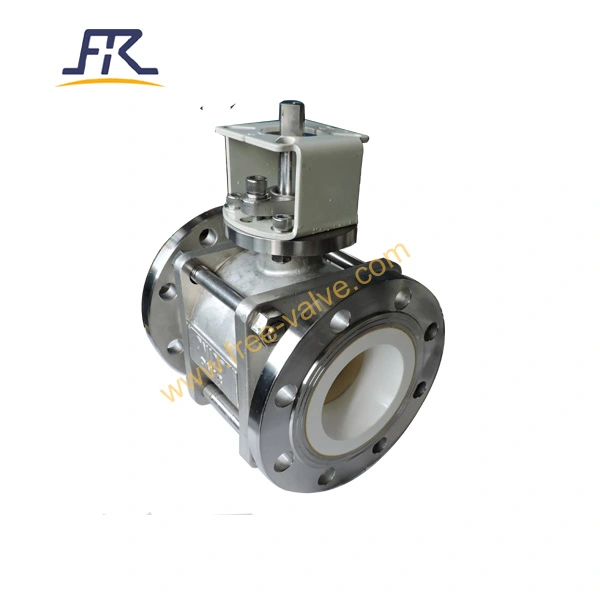

Zirconia Ceramic Lined Ball Valve

Name: Zirconia Ceramic Lined Ball Valve
Brand: FREE-VALVE
Price: $500 - 800 / Set

FOB Price

500 - 800 / Set

2 Sets(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shanghai Port
Payment Terms:T/T L/C D/P D/A
Delivery Detail:25 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	FREE-VALVE	Place of Origin:	China	Model Number:	FQ41TC
Material:	Casting	Application:	General	Structure:	Ball
Standard or Nonstandard:	Standard	Pressure:	Medium Pressure	Power:	Manual
Port Size:	NPS1/4 ~NPS2	Media:	Other, Abrasive and corrosive medium	Temperature of Media:	Medium Temperature

Packaging Details

Ply-Wooden Box

Product Description

Stainless Steel Ceramic Lined Ball Valve

FREE-VALVE brand Zirconia ceramic lined ball valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content.

Features:

1.The hardness of the Zirconia ceramic material can be higher than HRC80.

2.Engineering ceramic internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.

3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric actuators

4.Customized V type ceramic control valve is also available.

5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.

Technical Specification

Flange Standards ASME B16.5,GB/T9113

Nominal Pressure 1.0MPa,Class150

Size Range :DN50~DN 200, NPS2 ~NPS8

Connection type Flange

Working Temperature ≤200℃

Operating Type: Manual, Pneumatic and Electric

Sealing surface material:Engineering ceramic

Ball material:Zirconia ceramic

Pressure test GB/T13927, API598

Face to Face GB/T12221, ASME B16.10

Application

FREE-VALVE brand Zirconia ceramic lined ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment

Model：FRQ11TC,FRQ311TC,FRQ611TC

Price terms:FOB,CIF,FCA,CFR

Price:100-500USD/set

Origin:China

Brand:FREE-VALVE
