Manufacturers Automatic Chocolate Bar Food Cartoning Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Salt Oil Small Vacuum Drip Tea Packaging Machine Packaging Cartoning MachineNegotiableMOQ: 1 -
High Speed Automatic Packaging Bag Cartoning Box Machine Carton Packing Machine PackagingNegotiableMOQ: 1
-
Automatic Carton Bottle Aromatherapy Pen Cartoning MachineNegotiableMOQ: 1
-
Vertical Tea Bag Cartoning Packing Machine Soap Cartoning Machine PackagingNegotiableMOQ: 1
-
High-Efficiency Daily Necessities Toothpaste Toothbrush Shampoo Cartoning MachineNegotiableMOQ: 1
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or"send inquiry" to contact us.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or"send inquiry" to contact us.
Product Description
This LTPM CHINA ZH-Series Automatic Cartoning Machine is suitable for automatic filling and packing of products such as granular bags, soft double aluminum, plaster, band aid, facial mask, coffee bag, bottle, aluminum plastic plate and so on.
The whole process of on-line material detection, manual folding (1 to 4 times folding) and conveying, carton drawing forming and conveying, material feeding, embossing batch number, paper tongue packaging at both ends of carton (also applicable to hot melt adhesive)
Technical Parameters

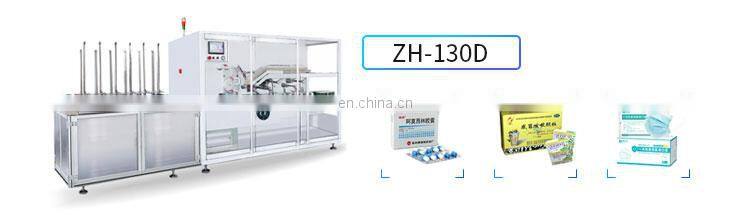

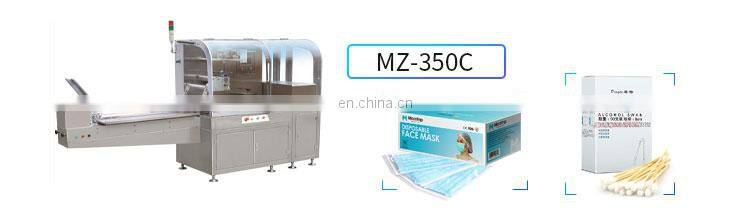

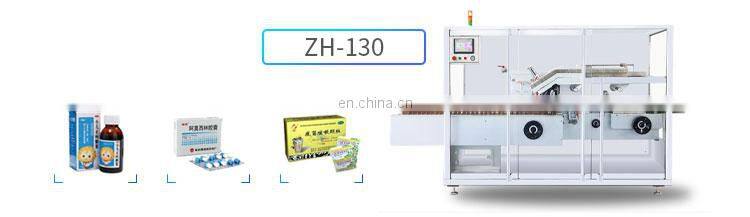

Model | ZH-130 | ZH-130D | ZH-130P | ZH-350C |
Speed | 30-130/min | 30-80/min | 30-130/min | 30-130/min |
Carton Dimension | (65-240)*(30-180)*(15-75)mm | (75-220)*(50-160)*(15-70)mm | (65-240)*(30-120)*(15-70)mm | / |
Instruction Book： | ||||
Unfolded instruction leaflet specification | (90-250)*(90-170)mm | (90-250)*(90-170)mm | (90-250)*(90-170)mm | / |
Fold range | [1-4](Fold) | [1-4](Fold) | [1-4](Fold) | / |
Working pressure | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa |
Air consumption | 120-160L/min | 200-240L/min | 120-160L/min | / |
Power supply | 380V50HZ | 380V50HZ | 380V50HZ | 220V50/60Hz |
Motor power | 1.5kw | 1.5kw | 1.5kw | 3.2Kw |
Dimension（mm） | 3250*1210*1770 | 4800*1210*1770 | 4500*1210*1770 | 4200*960*1520mm |
Weight | 2000kg | 2400kg | 2500kg | 1200Kg |
Features
01-
1.PLC automatic control system, frequency conversion and remonstration electrical components are all internationally renowned
brands ;
brands ;

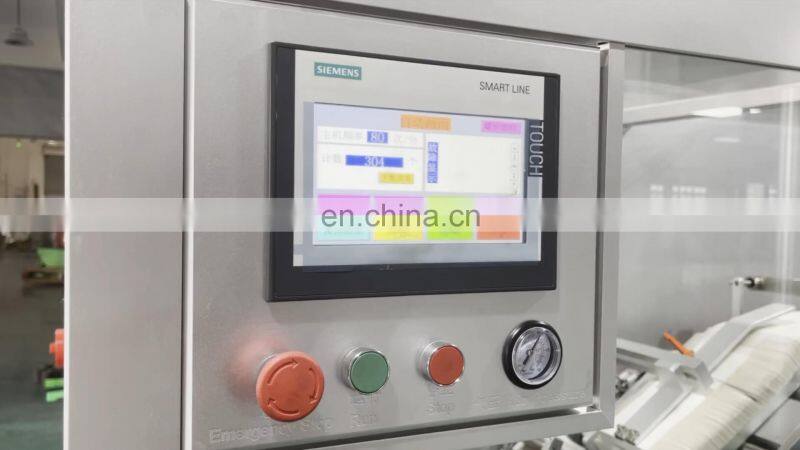

2.The touch interface makes parameter setting convenient and quick.
02-
It can automatically display, alarm and automatically remove the lack of material and paper jam in the carton, so as to ensure
100% qualified output of finished products at the outlet.
100% qualified output of finished products at the outlet.
03-

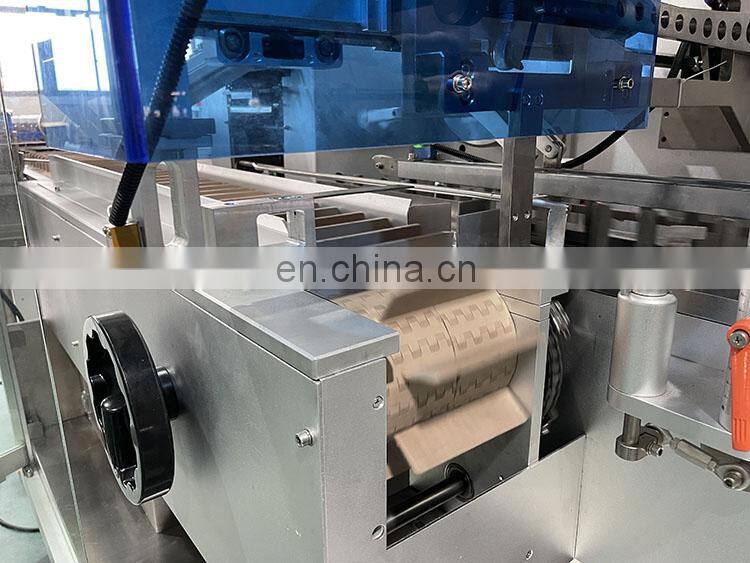

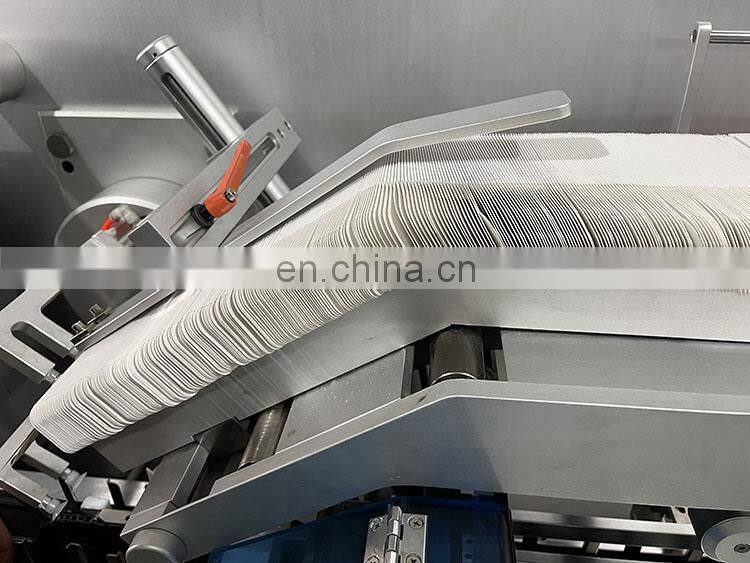

Large carton storage capacity, reducing labor burden.
04-
1.Servo control system, more accurate speed adjustment；
2.The wires are neat and beautiful, and the maintenance is more convenient
05-
All parts in contact with material are made of stainless steel and non-toxic materials, which meet the requirements of "GMP".
06-
1.Structure surface is aluminum sandblasting and oxidizing ;
2.Pull and push protection door, higher safty .
2.Pull and push protection door, higher safty .

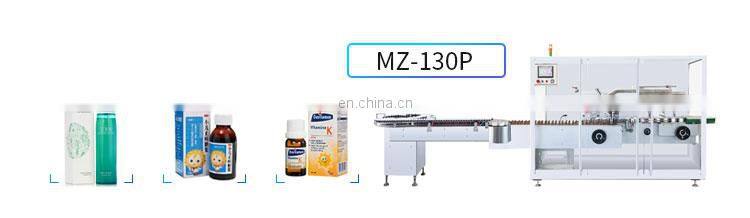

Application Products
Related Products
Company Profile
Our Company
--Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bagpackaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
--LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
--We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
--We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q1: How many different sealing type of cartoner?
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and
electrical system. According to our Maintanance Manual, the operator can do it easily.
electrical system. According to our Maintanance Manual, the operator can do it easily.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your
design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send
you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
