DP Series High Quality Automatic Cheetos Packing Machines

DP Series High Quality Automatic Cheetos Packing Machines photo-1
US$ 5,000 - 32,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New, New
Application:
Food
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Application Food
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220v
Power 4.2kw
Place of Origin Shandong, China
Brand Name eagle
Model Number DP420
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic cheetos packing machines
1.CE standard
2.10 heads weighting machine
3.low energy,no pollution



 Q1: If we buy machines, what is the after-sale service?

Jinan Eagle Food machinery manufacture will send the engineer to buyers factory. Offer the trainee program, start the related food production as customer request.



Q2: If machines wearable parts need to change, what should we do?

Jinan Eagle Food machinery manufacture will offer the wearable parts all the time.

And offer the on-line video instruction for the operation.



Q3: What is the payment terms if we want to buy the machines?

Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight.

Cheetos packing machines

 DP series high quality automatic cheetos packing machines

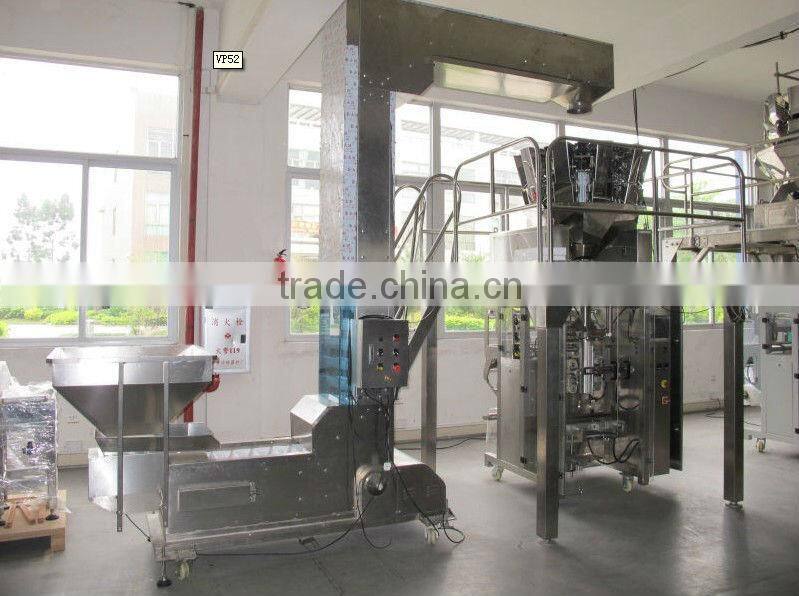

I. The unit of the whole packing system set

1) DP main packing machine body2)10-hopper computer combination scale3)Supporting platform 4) Z type material conveyor Includes Vibration feeder    5)  package conveyor  6) Metal detector



2.The scope of packaging

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .



3.The major performance and structural feature

*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

* minimize the loss with complete automatic warn protection function;

* supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma

* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.



4. Parameters

 Different models packing machines to choose.



Model

DP420A

DP520A

DP720A

 Packing speed (bag/min)

15-80

10-70

50

 Bag size

(L)50-300mm (W)60-200mm

(L)80-350mm (W)80-250mm

(L)100-450mm

(w) 100-350mm



Bag making mode

Pillow-type bag, standing bag, punch

Range of measuring (ml)

1500ml max

2000ml

max

4000ml

Maximum packing film width

420mm

520mm

720mm

Thickness of film

0.04-0.09mm

 Dimension  mm

1400*970*1700

1430*1200*1700

1780*1350*2000

   Weight

450

650

800

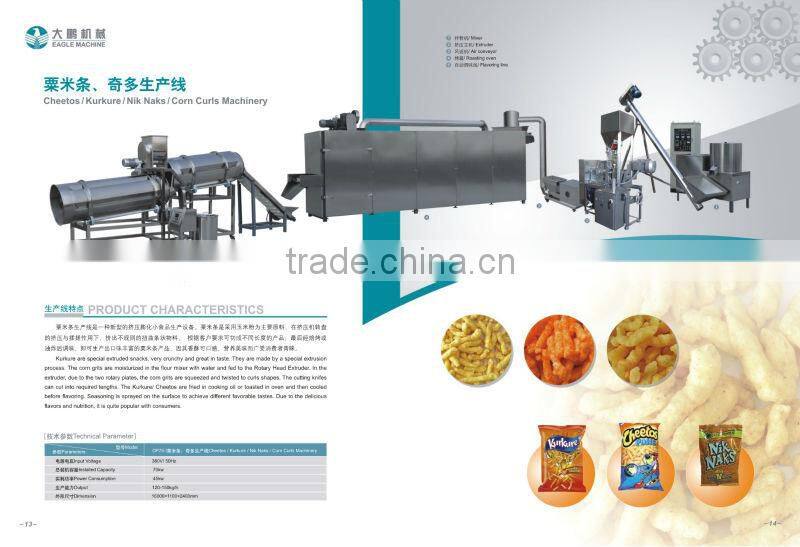

Nik naks production

DP series high quality automatic cheetos packing machinesDP series high quality automatic cheetos packing machines

1. Description:

Nik naks is a kind of extruded snacks, very crunchy and great in taste. Nik naks is made by extrusion process. The corn grits are moisturized in a vertical mixer with water, oil then feed to the Rotary Head Extruder. In the extruder, due to excess heat and pressure from the screws the meal gets heated and the moisture content gets reduced. The meal passes through the die and gets cut by the cutting knifes into required lengths. The nik naks is fried in cooking oil and then cooled before flavoring. Seasonings are sprayed on the nik naks to improve their taste.



2. Raw materials: adopts corn grits as raw materials meanwhile mixing with water and oil



3. Products: This line can be used to produce cheetos, kurkure, and nik naks



4. Capacity: 120--150kg/h, 240-250KG/H, 360-400kg/h, 600kg/h.



5. Flow chart:

Mixing system---Extrusion system----Baking system (Frying System) ---Flavoring system---Packing system

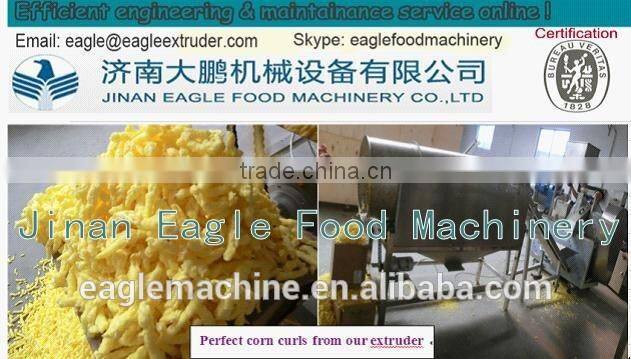

Corn curls machines

Machines involved in making Kurkure:

1. Flour Mixer
To mix corn meal with water to prepare the flour for Kurkure

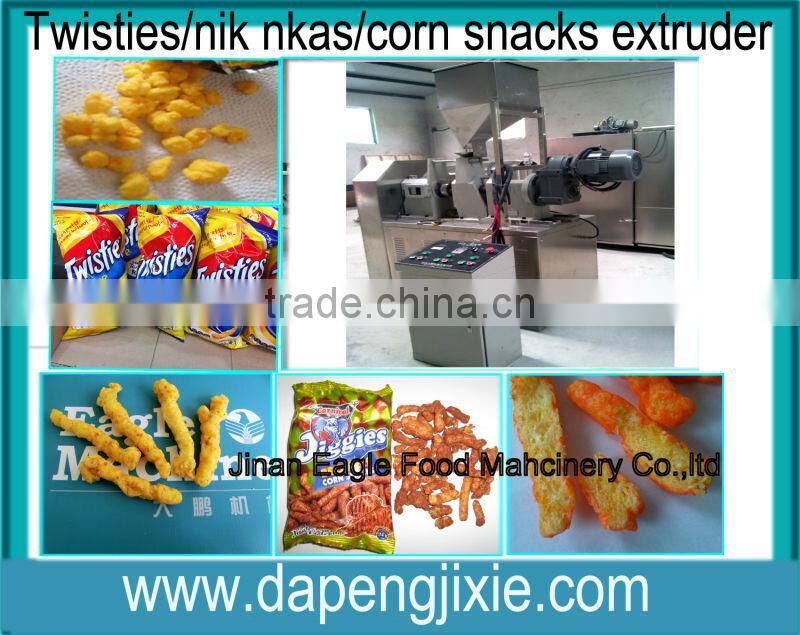

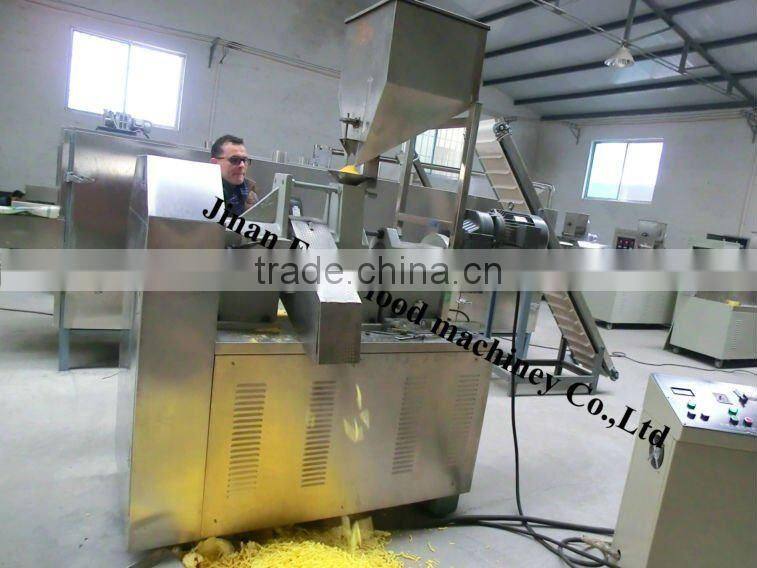

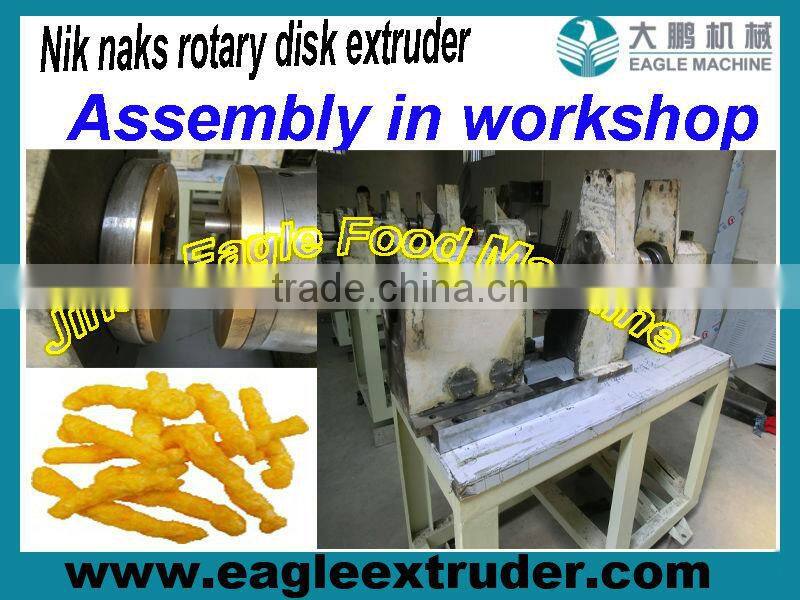

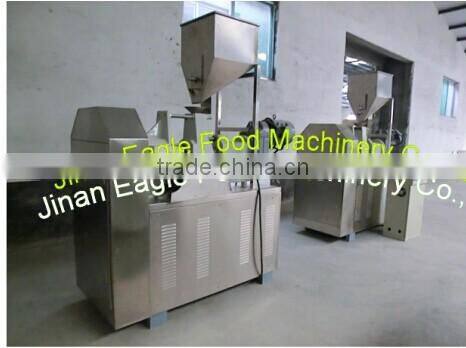

2. Rotary Die Extruder
To cook the corn meal and extrude the Kurkure from the die. The rotary die twists and curls the meal before extruding giving a uniform texture

3. Automatic Frying Machine
To fry the Kurkure in hot cooking oil. The uniform frying introduces the crunchy taste to the Kurkure

4. Cooling Conveyor
To cool the fried Kurkure and reduce the temperature before packing

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries



7. Machines MaterialsAll the machines are made by stainless steel



8. Technical Parameter



Model

Installed power

Real power

Output

Dimension

DP76

96

62kw

120-150kg/h

17000x1100x2500mm



DP series high quality automatic cheetos packing machinesDP series high quality automatic cheetos packing machines
