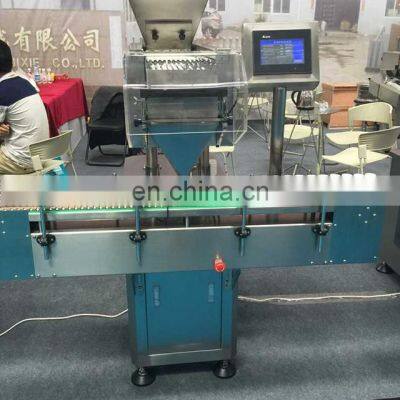

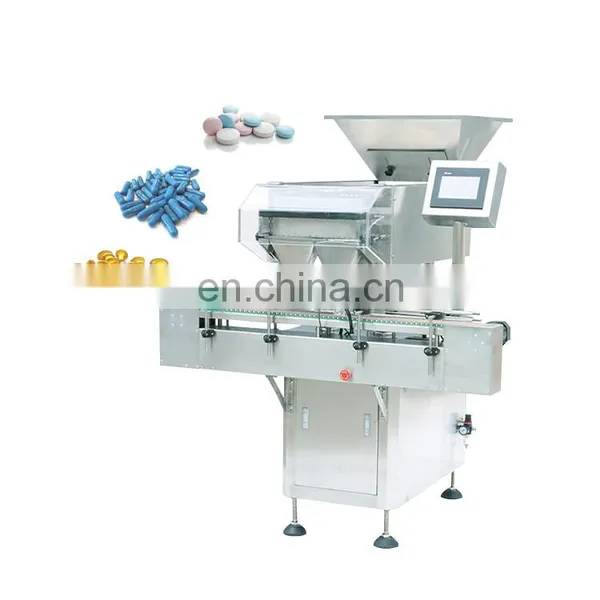

Double-Headed Automatic Pill Tablet Capsule Milk Tablet Candy Counting Electronic Tablet Counting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-Level Dual-Channel 8-Track Electronic Medicine Food Hardware Chemical Counting MachineNegotiableMOQ: 1 -
Automatic Tablet Capsule Candy Coffee Bean Electronic Intelligent Photoelectric Filling Counting Machine Production LineNegotiableMOQ: 1
-
Automatic Fresh Food Fruit Vegetable Meat Vacuum Pillow Packing MachineNegotiableMOQ: 1
-
Bread Sorting Line Bag Biscuit Box Food Automatic Pillow Packing Machine LineNegotiableMOQ: 1
-
Bread Pastry Biscuits Steamed Buns Nitrogen-Filled Pillow Food Automatic Packaging MachineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2. Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
LTEC-Series Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, Cod liver oil,etc. This machine adopts 16 sets imported counting sensor for counting with 16 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation control for convenient running.
Technical Parameters

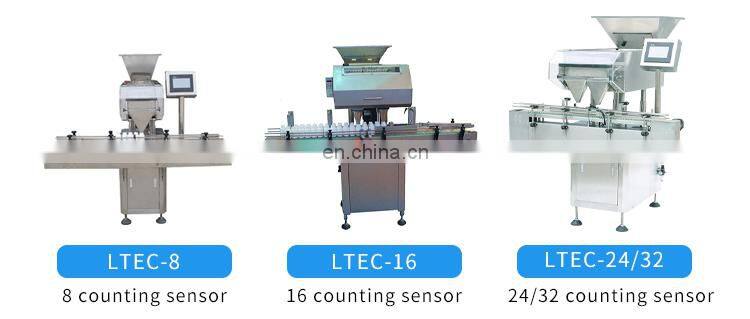

Model Name |
LTEC-8 |
LTEC-16 |
LTEC-24 |
LTEC-32 |
|||
Application |
1. Hard capsules(00-5#)2. Soft Gelatin capsules3. Tablets4. Chewing gums
5. Other solid object under machine range
|
1. Hard capsules(00-5#) 2. Soft Gelatin capsules 3. Tablets 4. Chewing gums 5. Other solid object under machine range |
1. Hard capsules(00-5#) 2. Soft Gelatin capsules 3. Tablets 4. Chewing gums 5. Other solid object under machine range |
1. Hard capsules(00-5#) 2. Soft Gelatin capsules 3. Tablets 4. Chewing gums 5. Other solid object under machine range |
|||
Hopper Volume |
20L |
40L |
45L |
80L |
|||
Capacity |
10-20bottles/min |
40-60bottles/min |
40-60bottles/min |
40-120bottles/min |
|||
Filling Quantity |
1-9999pcs/bottle (adjustable) |
1-9999pcs/bottle (adjustable) |
1-9999pcs/bottle (adjustable) |
1-9999pcs/bottle (adjustable) |
|||
Bottle Size |
Diameter: 30-90mm
Height:40-250mm
|
Diameter: 30-75mm
Height:40-250mm
|
Diameter: 30-90mm
Height:40-250mm
|
||||
Counting Size |
Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-30mm
|
Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-25mm
|
Thickness: 3.5-10mm
Diameter: 3.5-15mm
Length: 3.5-30mm
|
||||
Compressed air |
0.5Mpa |
0.5Mpa |
|||||
Conveyor Belt Length |
2400mm |
2400mm |
3000mm |
||||
Machine Weight |
120kg |
650kg |
750kg |
1000kg |
|||
Machine Size L × W × H (mm) |
660*1280*780 |
600*2400*1670 |
2000*1600*1680 |
2200*1400*1680 |
|||
Product Details

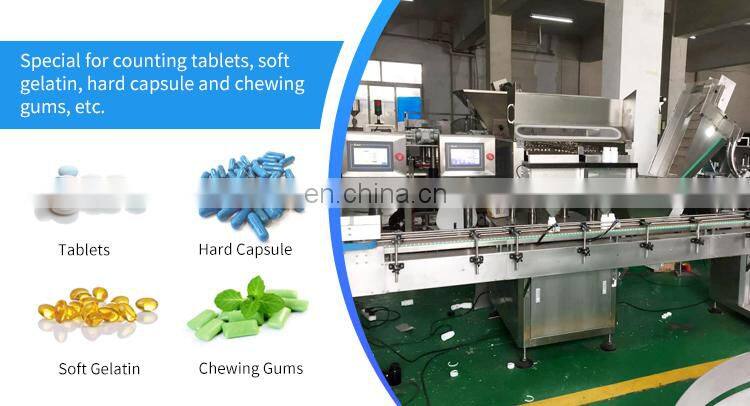

LTEC-Series Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc.The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table heightby Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

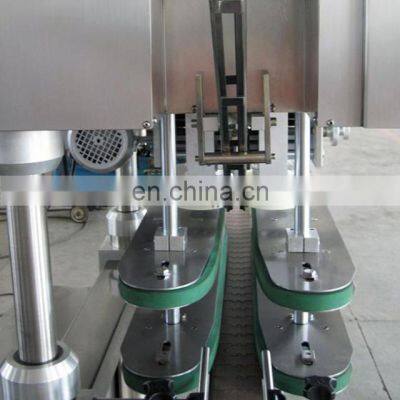

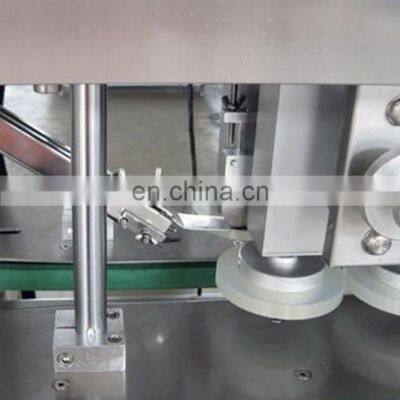

Mechanism of Push Bottles

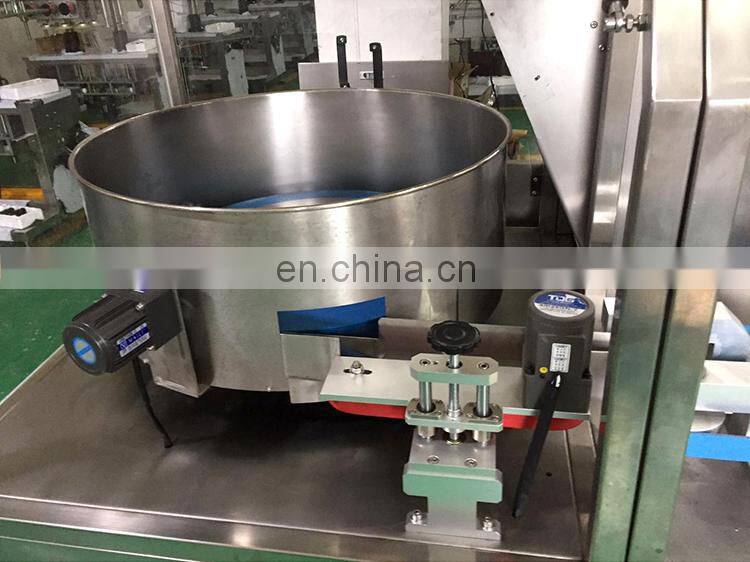

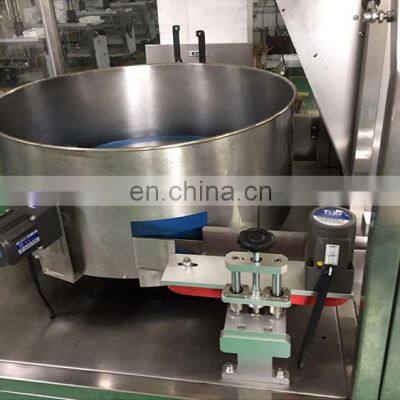

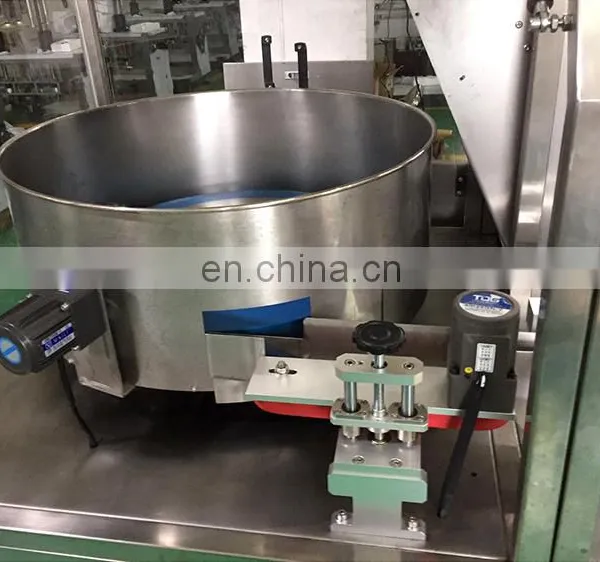

Mechanism of Standing Bottle

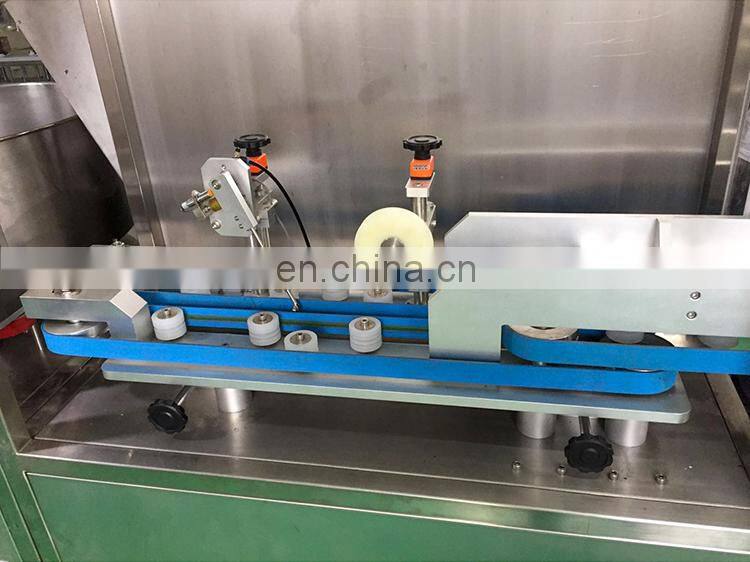

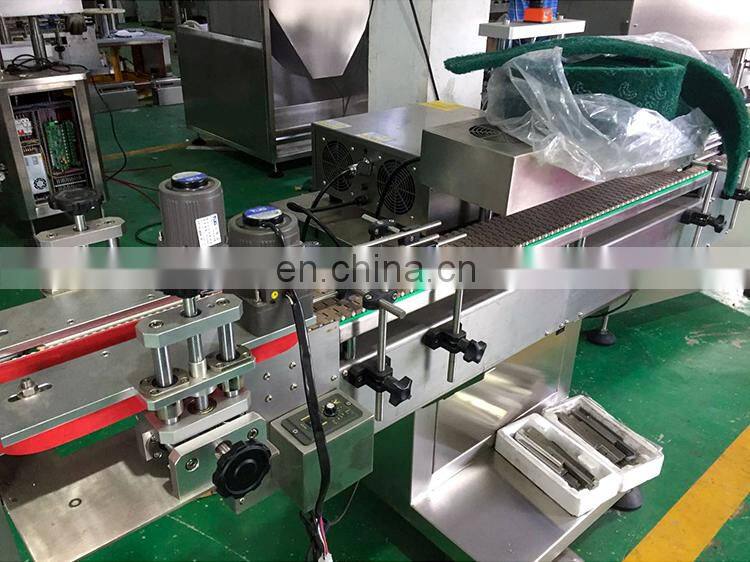

Conveyor Belt

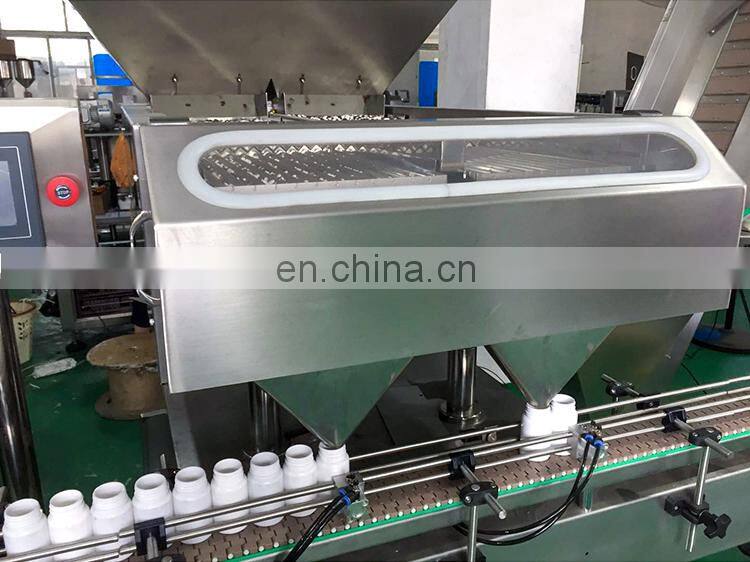

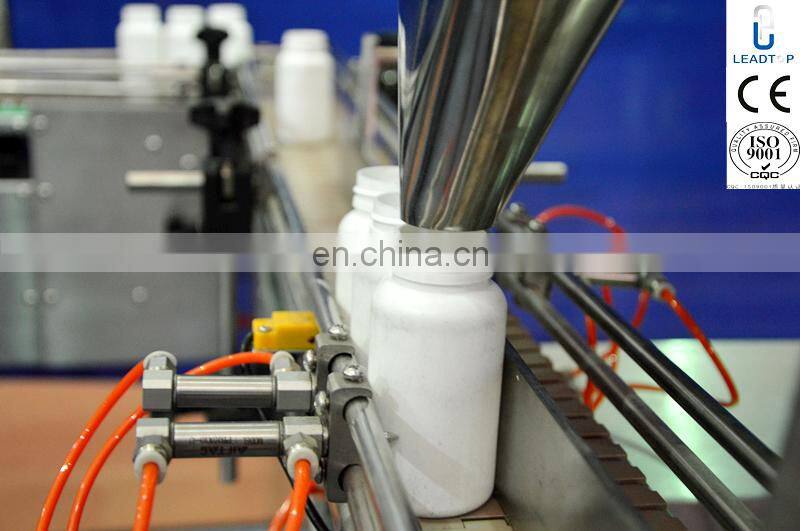

Blanking
Features
Feeding Mouth and Stop Cylinder:Material: Stainless Steel 304

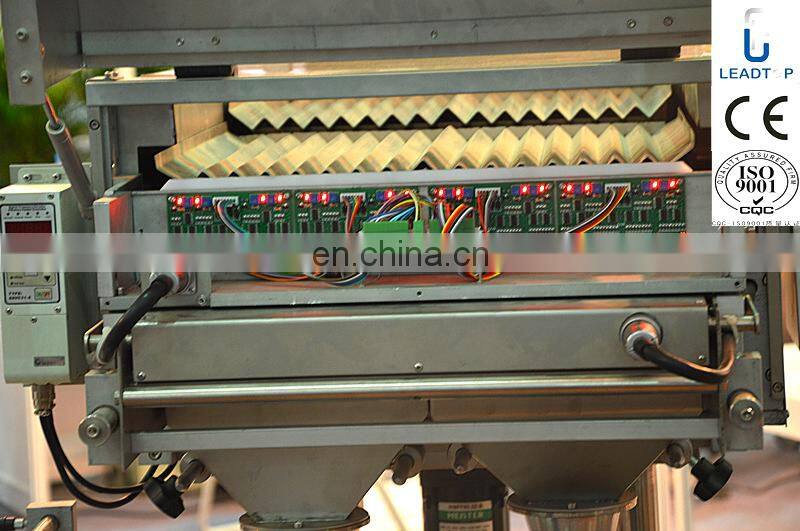

Sensor Control Board: Adopts Imported Brand Sensor
Accurate, high speed and efficiency

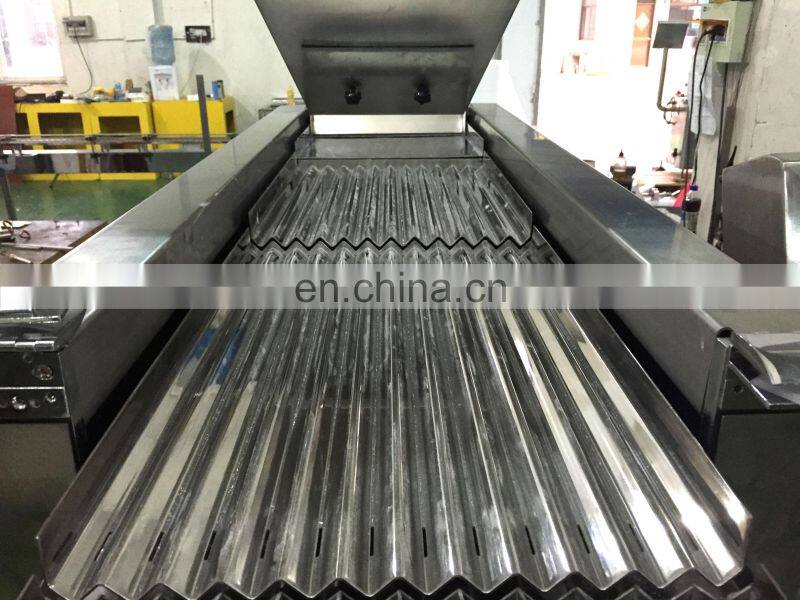

Vibrating Guide Way:
It adopts 3-section electromagnetic Vibrator, frequency is variable and adjustable, to separate counting
objects fast.
objects fast.
1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2.Vibratory cutting drugs do not damage;
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools,
convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools,
convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Final Product
Related Products
Company Profile
Our Company
China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM) is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry.
This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.
This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Cooperation
Since Its Establishment, The Company Has Had Close Cooperation With More Than 200 Companies All Over The World, And Received Unanimous Praise
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: How many different model of Counter you have?
A: Totally we have HY-Series Semi Auto Counter, CountPro-Series Auto Counter, LTEC-Series Automatic Counter.
Q: What is the difference between different Counter?
A: HY-Series are mainly used for TableTop counting, operator needs to manually put bottle under counting nozzle. The advantage of the machine are no change parts, suitable for all kinds object and economic cost. CountPro-Series machine is only used for count capsules, the advantage is economic cost with Fully Automatic Function. LTEC-Series is suitable for all kinds of objects without change parts, Fully Automatic, 100% accuracy, High Speed and multifunction.
Q: How many stage of vibration you have for LTEC-Series Electronic counter?
A: We adopts three stages vibration. The channels are all extra widened for ensure 100% counting accuracy.
Q: How many years of warranty you have for the counter?
A: 5years for LTEC-Series and CountPro-Series. include all mechanical parts and electronic parts. Two years warranty for HY
Series.
Q: Do you have local service all over the world?
A: We have local service in below country: Colombia, America, Canada, Peru, Pakistan, Bangladesh, Vietnam, Philippines, Indonesia,
Ecuador, Dominican Republic, etc.
A: Totally we have HY-Series Semi Auto Counter, CountPro-Series Auto Counter, LTEC-Series Automatic Counter.
Q: What is the difference between different Counter?
A: HY-Series are mainly used for TableTop counting, operator needs to manually put bottle under counting nozzle. The advantage of the machine are no change parts, suitable for all kinds object and economic cost. CountPro-Series machine is only used for count capsules, the advantage is economic cost with Fully Automatic Function. LTEC-Series is suitable for all kinds of objects without change parts, Fully Automatic, 100% accuracy, High Speed and multifunction.
Q: How many stage of vibration you have for LTEC-Series Electronic counter?
A: We adopts three stages vibration. The channels are all extra widened for ensure 100% counting accuracy.
Q: How many years of warranty you have for the counter?
A: 5years for LTEC-Series and CountPro-Series. include all mechanical parts and electronic parts. Two years warranty for HY
Series.
Q: Do you have local service all over the world?
A: We have local service in below country: Colombia, America, Canada, Peru, Pakistan, Bangladesh, Vietnam, Philippines, Indonesia,
Ecuador, Dominican Republic, etc.
