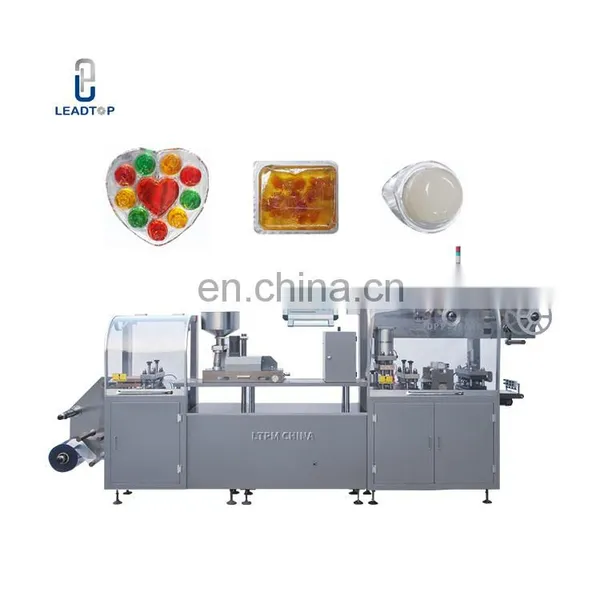

Capsule Vitamin Tablet Powder Multi-Function Dpp 80 Flat Aluminum-Plastic Automatic Blister Packaging Machine

Name: Capsule Vitamin Tablet Powder Multi-Function Dpp 80 Flat Aluminum-Plastic Automatic Blister Packaging Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Attention: 1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us. 2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat. 3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Products Description

The machine is suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. The machine is used to produce large quality and single product. It can protect the material from steam or dust, improve product packing degree, and increase the additional value.

Technical Parameters

Model	DPP-88	DPP-140	DPP-250	DPP-320
Blanking frequency（cutting）:	15-40	5-50	20-40	15-45
Sheet's quantity of one blanking (sheets):	1	1-4	1--6	1-8
Capacity (blisters/min):	15-35	5-200	5-200	30-720
Adjustable scope of feed travel: (mm)	10-120	10-120	30-145	10-160
Max Forming depth (mm) PVC:	120 X 110 X 15	160 X 120 X 25	255 X 145 X 12	350 X 120 X 25
Capacity of air compressor(m3/min):	≥0.36	≥0.22	≥0.22	≥0.36
Power supply:	380V /220V, 30Hz, 5.5kw
size(mm):	16505001100	24505701550	42006501650	42006501650
Weight (kg):	650	950	1500	2200

Original (88/140/250/320)

lmproved (88/140/250/320)

Product Details

Plastic Preheating and unwind

When the machine run out of Plastic, it will stop automatically

Plastic Blister Forming Station

We use ENCODER for forming, different from other’s cam for forming, cam will be broken when you run it too much time and fast.Mechanical is not always firm enough, So we change Electronic to control the Pneumatic, so this is the real PLC Control one brain machine, easy to adjust.

Touch Screen

Touch Screen brand can be required by customer.

Aluminum and Plastic Sealing Station

Aluminum Plastic Blister Cutting Station

The machine can cut 55times in one minute.

Features

1.Travel scope can be adjusted.

2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.

4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

6.Stepping motor drives and tow materials.

7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

More Products

Company Profile

Our Company

- Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bagpackaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.

- LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.

- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial solution always become our target.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Professional Business Team

Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.

Our Certificates

ISO, CE, SGS, BV Certified Company.

Packing & Shipping

All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.

FAQ

How to save packing material on Blister Packing Machine:

Q:What is difference between PLC Control and Real PLC Control?
A:PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.

Q:How to change mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.

Q:When the machine stops, the mould is still hot; will it heat PVC and destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.

Q:What is the Step Motor using for?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.

Q:The machine always run automatically, but when it runs in a wrong length, what should we do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.

Q:If the machine broken in a problem we can’t work out, what should I do?
A:At first, we have will send a video how to solve.

Second, We have six Technicians get Passport ready to travel around the world to adjust the machine for our customers.
