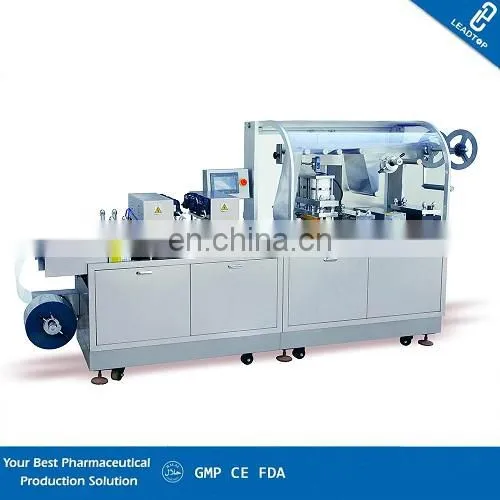

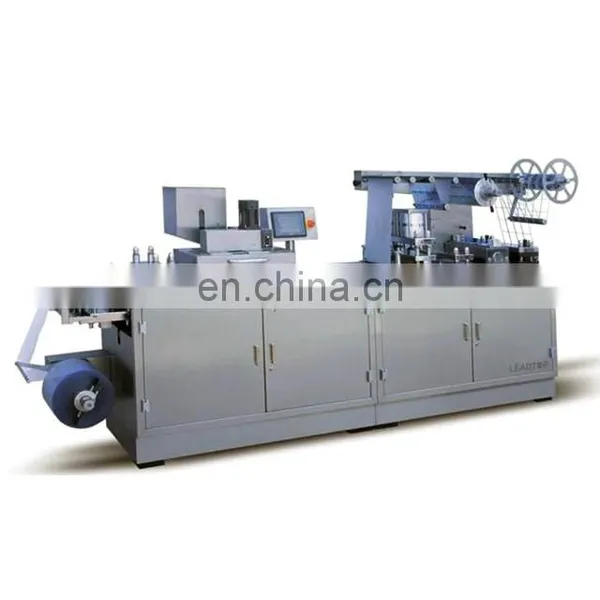

DPP-250 Alu / Pvc Tablet Capsule Honey Candy Herbal Candy Blister Packing Machine
|
Application and Usage: The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product. Both Alu Alu and Alu PVC are available by changing mould! |
Main Technical Data:
Model: |
DPP-250 |
Punch Speed |
10-35time/min |
Sheet’s quantity of one blanking: |
3-5sheets |
Travel Range: |
10-160mm |
Compressed Air: |
0.4MPA-0.6MPA |
Power: |
380V 50Hz 4Kw |
Power Supply: |
380V 50Hz 5.5Kw (optional) |
| Wrapper Specification: |
Aluminum Foil:(0.02-0.035)*250mm Tropical Aluminum:(0.09-0.15)*250mm PVC: (0.15-0.5)*250mm |
Overall Dimensions: |
4300*635*1400mm |
Forming Area: |
PVC:250*160*25mm Tropical Aluminum: 250*160*15mm |
Weight: |
2000Kg |
| Machine Main Feature: |
1. Travel scope can be adjusted. |

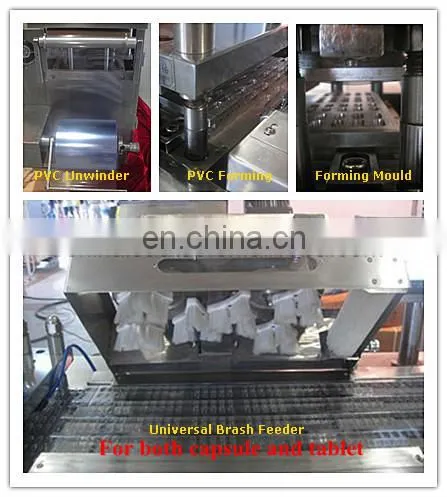

2. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing. |
3. The material is fed automatically. The mould and feeder can be designed as user’s requirements. |

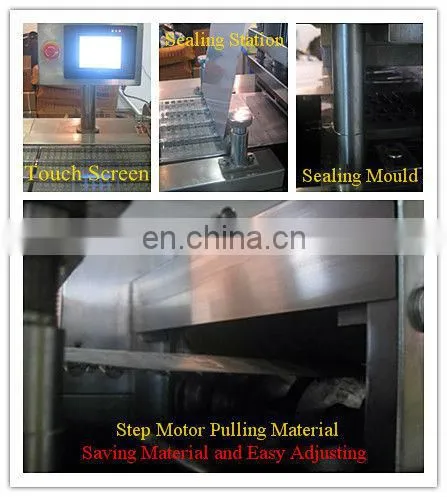

4. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately. |
5. Adopt the equipment of trace pressing, batch number printing and scarp-collecting. |
6. Step Motor For Pulling material, more saving material and adjusting time. |
7. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life. |
Cerification and Documents of the machines:

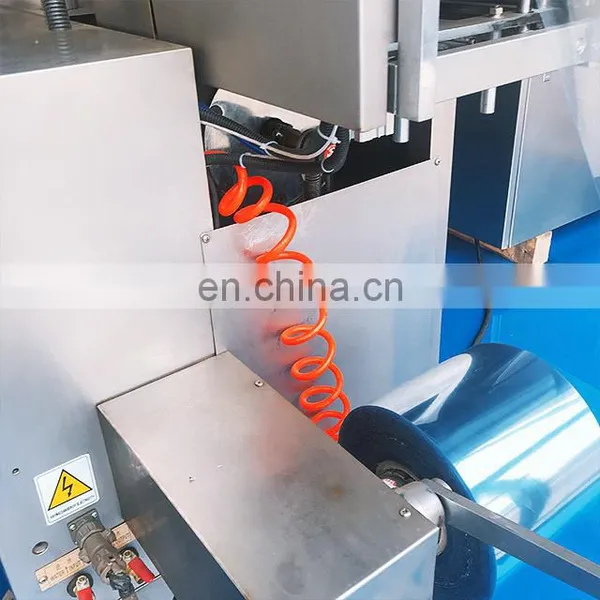

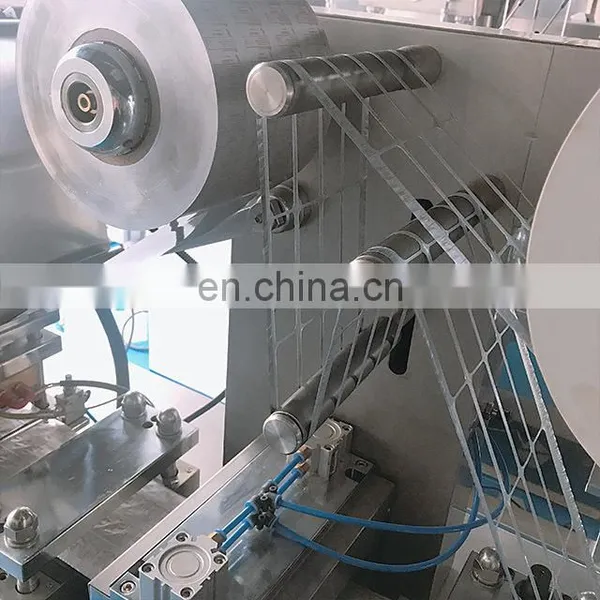

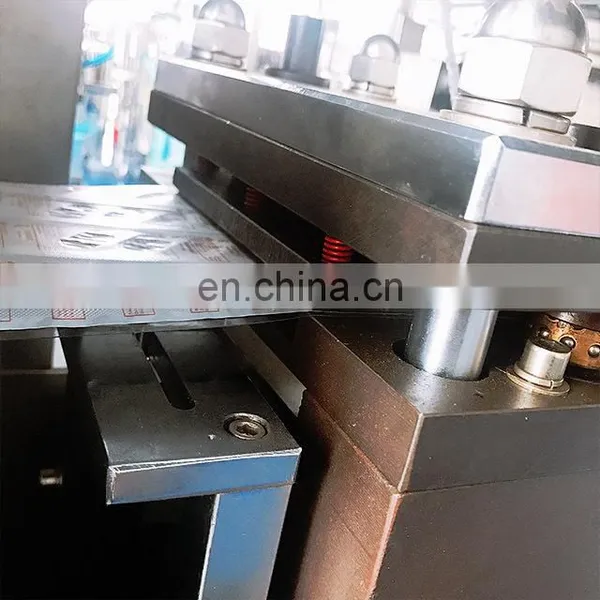

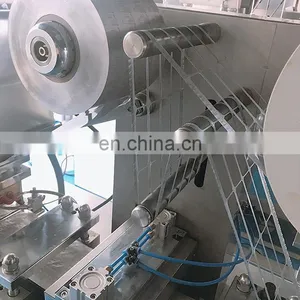

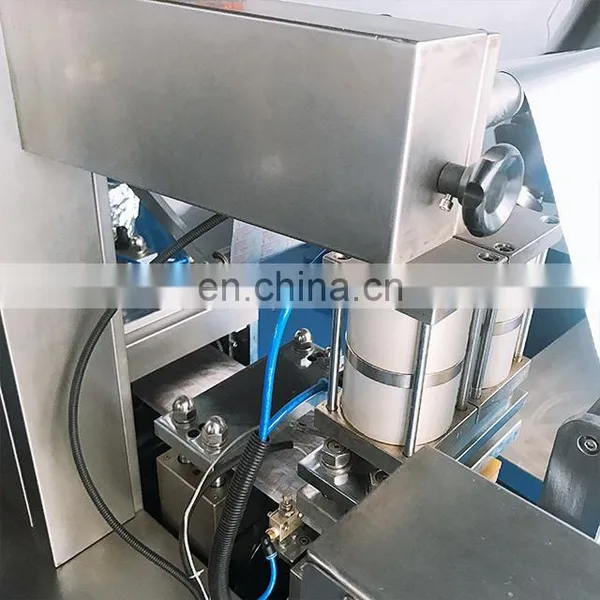

Machine Details:
|
|
|
For More Details, please contact us by mail or telephone. You are so the most welcome here to visit our manufacturing plant!
LTPM CHINA, Your Best Pharmaceutical Production Solution!
