Home > Products > Inner Packaging Machine > DPP Automatic small blister packaging machine
DPP Automatic small blister packaging machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Automatic Chocolate/Liquid/Honey Blister Packing Machine
- DPP140 Automatic Capsule Blister Machine
- 4-Lanes Liquid Stick Tea Bag Packing Sachet Packing
- LTRJ-Series Automatic Paintball Machine Full Product Line
- LTRJ-Series Soft Capsule Gelatin Encapsulation Machine
- LTRJ-Series Paintball Forming Soft Capsule Making Machine
Product Description
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Products Description
DPP-250 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.

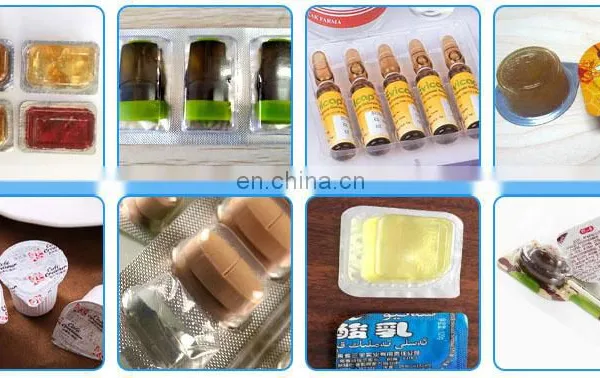

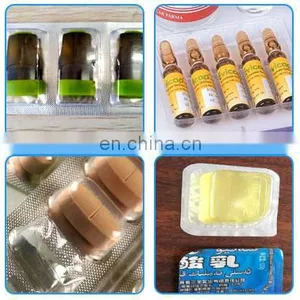

Packaging range:
Western medicine, Chinese medicine pills, herbal medicine pills, veterinary medicine, sugar coated tablets, vegetarian tablets, all kinds of candy, food, electronic component and so on
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
Packaging range:
Western medicine, Chinese medicine pills, herbal medicine pills, veterinary medicine, sugar coated tablets, vegetarian tablets, all kinds of candy, food, electronic component and so on
Technical Parameters
Model | DPP-88 | DPP-140 | DPP-250 | DPP-320 | |||
Blanking frequency(cutting): | 15-40 | 5-50 | 20-40 | 15-45 | |||
Sheet's quantity of one blanking (sheets): | 1 | 1-4 | 1--6 | 1-8 | |||
Capacity (blisters/min): | 15-35 | 5-200 | 5-200 | 30-720 | |||
Adjustable scope of feed travel: (mm) | 10-120 | 10-120 | 30-145 | 10-160 | |||
Max Forming depth (mm) PVC: | 120 X 110 X 15 | 160 X 120 X 25 | 255 X 145 X 12 | 350 X 120 X 25 | |||
Capacity of air compressor(m3/min): | ≥0.36 | ≥0.22 | ≥0.22 | ≥0.36 | |||
Power supply: | 380V /220V, 30Hz, 5.5kw | ||||||
size(mm): | 1650*500*1100 | 2450*570*1550 | 4200*650*1650 | 4200*650*1650 | |||
Weight (kg): | 650 | 950 | 1500 | 2200 |
Product Details
1.
Push-plate device
2.
Using encoder instead of proximity switch, using the angle control principle, the operation of each station is more accurate,
debugging is more convenient and fast
debugging is more convenient and fast
3.
All Work, Cam Lubrication are immersed in the oil tank, the Shell and sealed with stainless steel
4.
The coaxial transmission between each station eliminates the operation error and noise of the gear.
5.
1.Using Siemens touch screen, stable performance, lower failure rate, more stable production
2.The safety emergency stop switch is suitable for emergency braking in production or debugging accident to protect the safety of
people and machines
2.The safety emergency stop switch is suitable for emergency braking in production or debugging accident to protect the safety of
people and machines
6.
Handle rocker adjustment, convenient and fast. It can also be adjusted during boot
7.
The adjusting rod is equipped with position display, which can record parameters for switching between different varieties. The
accuracy coefficient reaches 0.1mm
accuracy coefficient reaches 0.1mm
Features
1.PVC, duralumin composite membrane bearing material shaft, can let a worker complete reloading work in 2 minutes.
2.Photoelectric control hard aluminum composite film, aluminum foil to receive and release.
3.The installation of the supercharged cylinder can reduce the wear of the transmission part and increase the life of the machine.
4.During shutdown, the heat seal cylinder is lifted to prevent the medicine from being damaged during shutdown.
5.The heat sealing die is fixed by the bolt of the pressing plate, which can be easily and quickly replaced by the horizontal drawing.
6.According to customer needs with a variety of coding tools, standard layout hard coding, font clear, more convenient and
economical replacement. The batch number mould is fixed by pressing plate bolt, which can be easily and quickly removed and replaced transversely.
7.The use of servo motor traction, adjustment of travel, as long as the touch screen to enter a number can make it more accurate, time-saving. And can be connected with PLC to achieve cursor version, SERVO system brand for Germany Siemens.
More Products
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bagpackaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
- LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
How to save packing material on Blister Packing Machine:
Q:What is difference between PLC Control and Real PLC Control?
A:PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q:How to change mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q:When the machine stops, the mould is still hot; will it heat PVC and destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q:What is the Step Motor using for?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.
Q:The machine always run automatically, but when it runs in a wrong length, what should we do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q:If the machine broken in a problem we can’t work out, what should I do?
A:At first, we have will send a video how to solve.
Second, We have six Technicians get Passport ready to travel around the world to adjust the machine for our customers.
Q:What is difference between PLC Control and Real PLC Control?
A:PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q:How to change mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q:When the machine stops, the mould is still hot; will it heat PVC and destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q:What is the Step Motor using for?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.
Q:The machine always run automatically, but when it runs in a wrong length, what should we do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q:If the machine broken in a problem we can’t work out, what should I do?
A:At first, we have will send a video how to solve.
Second, We have six Technicians get Passport ready to travel around the world to adjust the machine for our customers.
