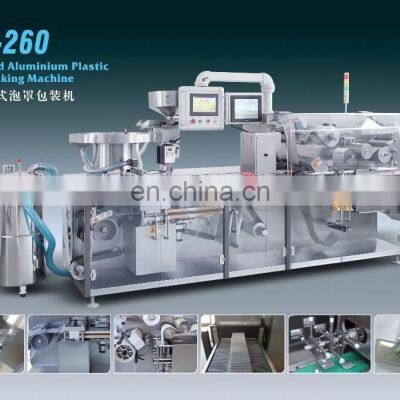

DPH series Roller Type High Speed AL/PVC
Blister Packaging Machine

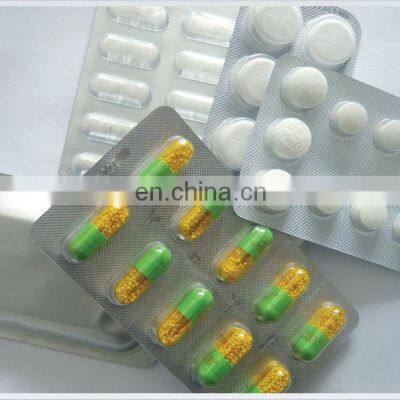

DPH-series Automatic Blister Packing Machine, used for packing capsule, tablets, milk tablet, candy, butter, honey, chocolate and etc.
Features and Working Principle
1. This Blister Packaging Machine can be packed separately to accommodate a lift having a 2.2m width, and delivered to the divided purification workshop.
2.It is suitable for plastic thermoforming and aluminum cold forming blister packaging.
Adopts positioning formats for straightforward format changeover.
3.Add an optional perforation station, to separate the perforation from the embossing station. Conventionally, perforation and embossing remain in one station, but this will influence the clarity of each.
4.Separation of drive and operating zones are in compliance with pharmaceutical GMP requirements.
5.Material drag system adopts a precise servo motor to achieve stable, accurate running allowing blister length to be set freely.
Item |
Data |
|
Speed(Standard Plate 80mm×57mm×3) |
60-180cut/min |
|
Capacity |
10800-32400strip/hour |
|
Scope |
20-250 mm |
|
Max. Forming Area |
260*250mm |
|
Max.Depth |
12mm |
|
Pre-Heating Power |
2KW(×4) |
|
Heat Sealing Power |
3KW |
|
Servo Motor Power |
0.75KW X 2 |
|
Main Motor |
1.5KW |
|
Power and E-Consumption |
Three Phase 380V 50HZ(220V 60HZ)14.5KW |
|
Air Consumption |
≥0.6m3/min |
|
|
Packing Material |
PVC |
0.25X260mm |
PTP |
0.02X260mm |
|
Overall Dimension |
3130×975×1850mm |
|
Size after packing |
3900X1220X2150mm |
|
Weight |
3000Kg |
|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
