Home > Products > Liquid Workshop Preparation Equipment > High Speed Face Cream Vacuum Emulsifying Homogenizer Cosmetic Stirrer
High Speed Face Cream Vacuum Emulsifying Homogenizer Cosmetic Stirrer
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Groundnut Oil Bottle Making Filling And Sealing Machine
- Reverse Osmosis pure water system RO waste water treatment system
- 10000 Liter Mobile Water Purification System RO Pure Waste Water Treatment Plant For Industrial
- Professional Design Large Capacity RO Waste Water Treatment System Pure Water Treatment Device
- Hydraulic Lifting Vacuum Homogenizing Emulsifying Mixer Machine
- Whole set vacuum emulisfying equipment body lotion cream shampoo making machine
Product Description
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Features:
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min
1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min
Manufacturer | China LTPM Group Co., LTD | ||||
PN | 200L vacuum emulsifying mixer | ||||
Capacity | Design volume: 200L, working capacity:160L | ||||
Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp | ||||
Mixing pot | Material | Inner layer: SUS316L thickness: 4mm | |||
Middle layer: SUS304 thickness: 4mm | |||||
Outside layer: SUS304 thickness:3mm | |||||
configuration | Bottom material exhaust, size: 1.5” | ||||
Temp. sensor (0-199℃) | |||||
Electrical heating: 8kw, cooling water inlet | |||||
Stirring system | Homogenizer | 1.Material: SUS316L; standard homogenizer 2. Power: 4kw/380/50Hz; RPM: 0--2800R/Min | |||
Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE | ||||
1. Stirring scrap and middle stirring use the same motor 2、Power:1.5 kw/380V/50Hz;RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction | |||||
Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring. | |||||
Vacuum system | 1. Vacuum pump: water recycle, power 1.5kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open) | ||||
Heating method | Jacket electrical heating | ||||
Exhaust method | Electric doom and bottom discharge or positive pressure discharge material | ||||
Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | ||||
Control box | SUS304 , 1.2mm thickness | ||||
Dimension | 1900mm×600mm×2650~3500 mm | ||||
Shelf is SS, platform with raised platform and SS guardrail | |||||
Spare parts | One year spare parts and tools | ||||
Guarantee | One year | ||||
Using life | More than 15 years |
Product Details

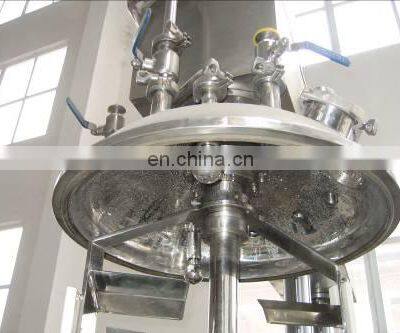

Inside of the cover
The cover of the pot
Filter : (the material which will
be mixed feeds in from here)
Inside of the filter
lnspection light
View window
Small hopper for adding small quantity material
Vacuum valve and pressure
indicator(for the pressure in the pot)
Product Highlights
HIGH SHEAR HOMOGENIZER
Fast agitator:
Teethed type rotor and stator assembly installedon the vessel Bottom or on the top as optional items,severalinterchangeable configurations are available.
FRAME MIXER
Dead-end stirring,with sufficient mixing area and good stirring effect.
HYDRAULIC LIFTING SYSTEM
Used for material discharge and cleaning.It is more convenient and safer for the operator.
PHARMACEUTICAL GRADE MATERIAL
High quality SUS304 & 316L material, internal andexternal mirror polish of homogenizer tank.
Final Product
Related Products
Company Profile
Our Company
China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM) is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry.
This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
