LTRZ-5 Vacuum Emulsifying Mixer Machine Cosmetic Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Washer DisinfectorNegotiableMOQ: 1 -
Washer Disinfector for Surgical InstrumentsNegotiableMOQ: 1
-
Whole Body Stainless Steel Dental Washer DisinfectorNegotiableMOQ: 1
-
Touch Screen Automatic Washer and DisinfectorNegotiableMOQ: 1
-
DNWX-200 Filled Vial External Surface Washing MachineNegotiableMOQ: 1
Product Description

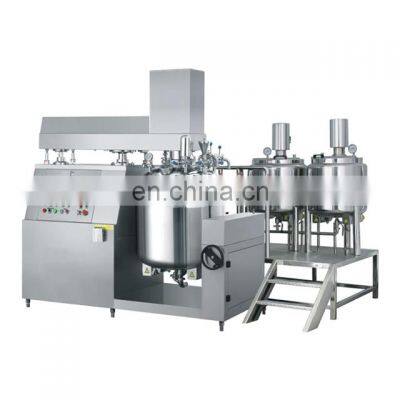

The Vacuum Emulsifying Mixer is composed of main pot(emulsifying pot),a water phase pot and an oil phase pot, vacuum unit, up-and down system, electrical control system and the motor frame etc.
The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.
The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.
The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.
PS：
1. Contact products material is SUS316L, surface polish. Others SUS304, surface polish. Sealing material is VITON, scrap material PTFE, pipe line connection use TRI-CLAMP, easy for take out. Motor with SS cover for protection.
2. Welding: all welding parts are full weld.
Item | LTRZ-5 vacuum emulsifying mixer | Heating method | Jacket electrical heating | ||
Capacity | Design volume: 6L, working capacity:5 L | Using life | More than 15 years | ||
Material | Inner layer: SUS316L thickness: 3mm | Oil pot | Design volume | 3.35L | |
Middle layer: SUS304 thickness: 2mm | Working capacity | 2.7L | |||
Outside layer: SUS304 thickness:2mm | Stirring power | 0.025kw | |||
Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | Stirring speed | 1400 RPM | ||
Control box | SUS304 , 1.2mm thickness | Heating power | 1 Kw | ||
Dimension | 1400mm×600mm×1900~2400 mm | Water pot | Design volume | 3.35L | |
Shelf is SS, platform with raised platform and SS guardrail | Working capacity | 2.7L | |||
Spare parts | One year spare parts and tools | Stirring power | 0.025kw | ||
Guarantee | One year | Stirring speed | 1400 RPM | ||
Using life | More than 15 years | Heating power | 1 Kw | ||
More details

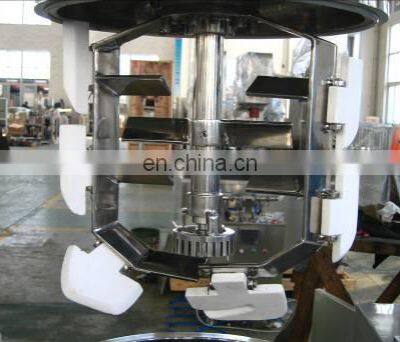

Mixing system Inspection light View window

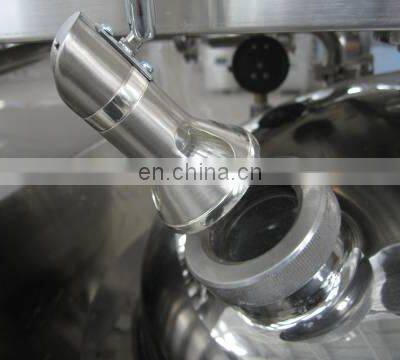

Viewing Light and Glass
Extra Adding Valve
Machine in Workshop
Installation and after sales service:
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period:
There is five year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
