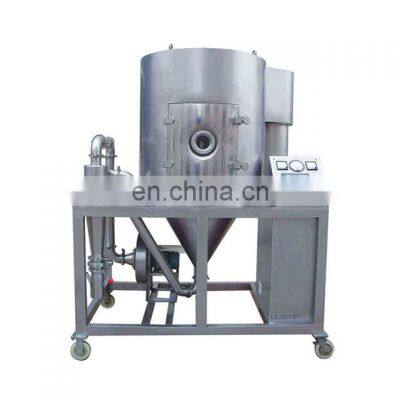

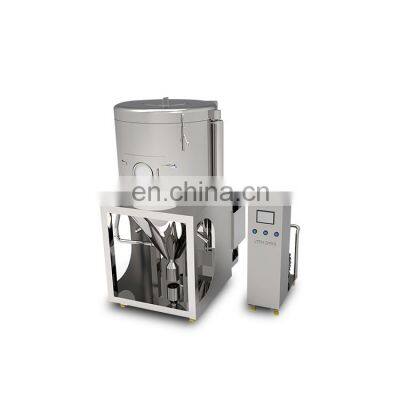

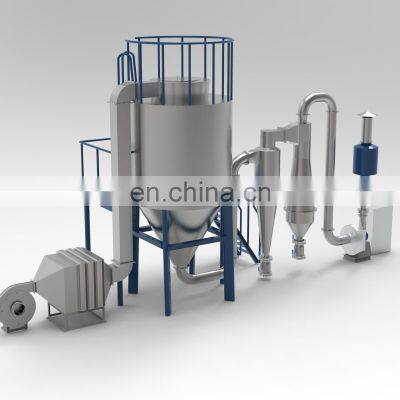

LPG-5 High Speed Centrifugal Milk Spray Drying Equipment

LPG-5 High Speed Centrifugal Milk Spray Drying Equipment thumbnail-1
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment thumbnail-2
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment thumbnail-3
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment thumbnail-4
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment thumbnail-5
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment photo-1
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment photo-2
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment photo-3
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment photo-4
LPG-5 High Speed Centrifugal Milk Spray Drying Equipment photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Zhejiang Leadtop Pharmaceutical Machinery Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.
Features
1.Rapid drying speed, which just takes 5-15 seconds.
2.Suitable for thermo-sensitive material and keep the origin state.
3.Simple processing and easy operation, which is suitable for continuous production.
4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.
5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.
Technical Parameters
Model
5
25
50
100
150
200-2000
Inlet temperature
350°C
Outlet temperature
80-90°C
Max. evaporation(kg/h)
5
25
50
100
150
200-2000
Centrifugal spraying nozzle transmission mode
compressed air transmission
mechanical transmission
Rotation speed (r.p.m)
25000
22000
21500
18000
18000
15000
Spray disc diameter
50mm
100mm
120mm
140mm
150mm
180-340mm
thermal source
electricity
electricity
electricity + steam, fuel, oil, fuelgas
solved by user
Max. electric heating power (kw)
8
31.5
60
81
99
Overall dimension
1.8*0.93*2.2
3*2.7*4.26
3.7*3.2*5.1
4.6*4.2*6
5.5*4.5*7
optional
Powder recollection (%)
95
95
95
95
95
95
Product Details
More Products
Company Profie
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange
everything for you!

Any other doubts about our machine, please feel easy to contact with us！
