KJG Series Horizontal Continuous Sludge Dryer Drying Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

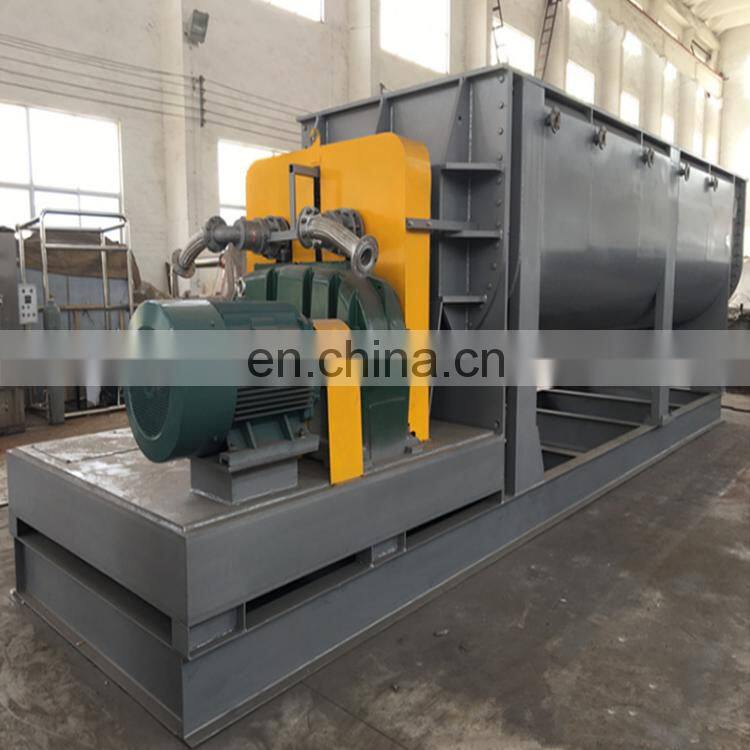

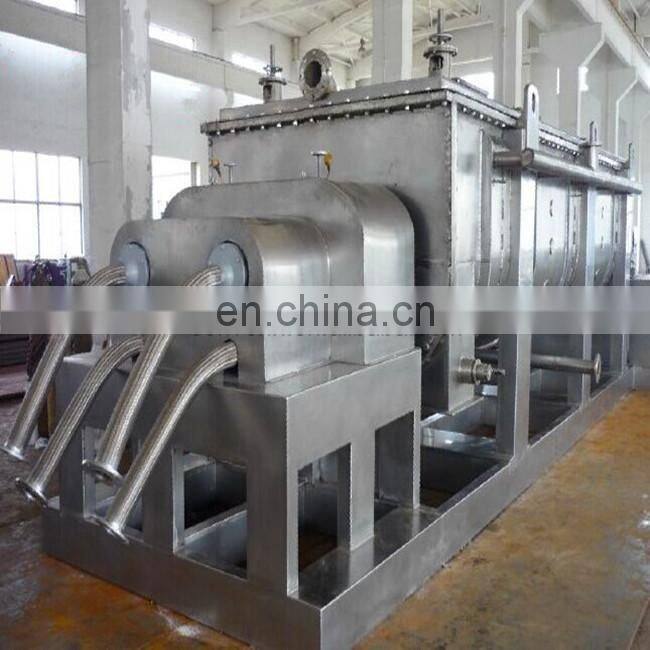

KJG Series Hollow Blade Dryer.

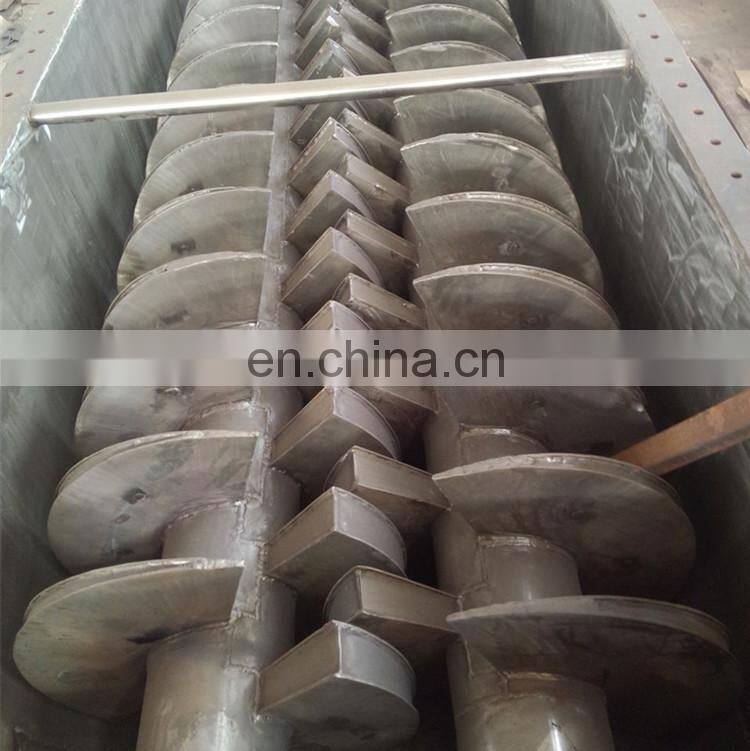

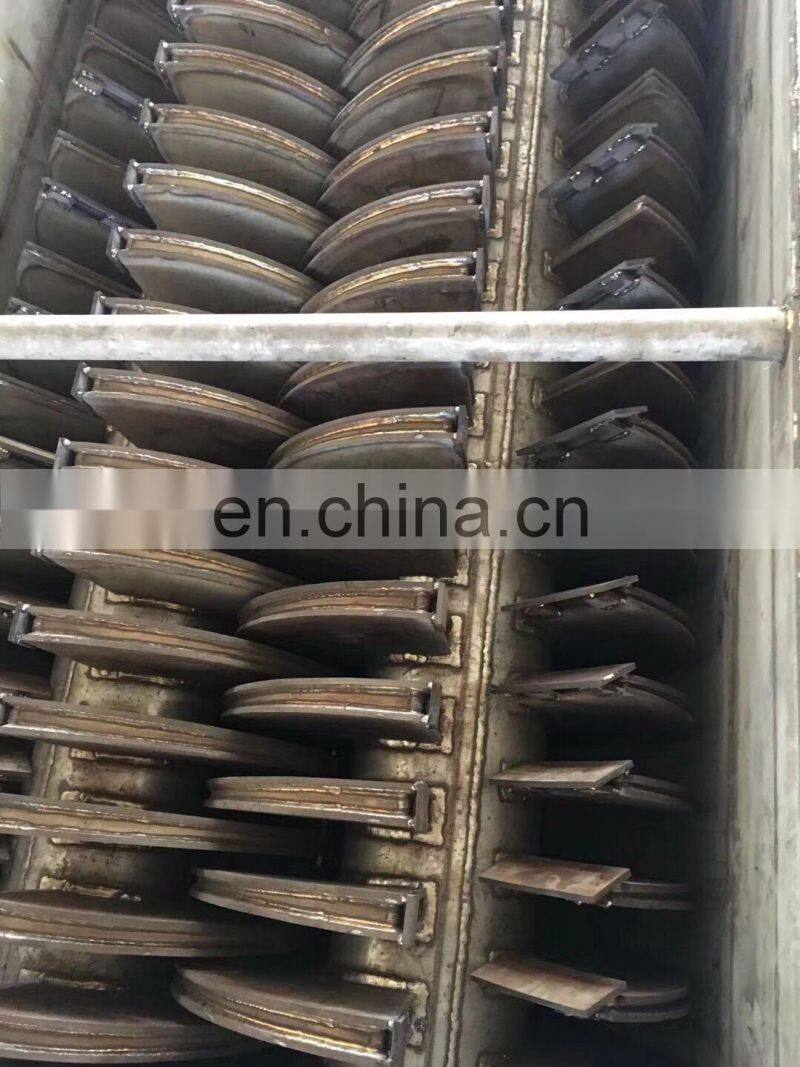

Densely lined with wedge-shaped hollow shaft hollow blades, heat medium through the hollow axial flow through blades. Unit effective volume of a very large area of heat transfer, heat medium temperature from -40℃ to 320 ℃, can be water ugh blades. Unit effect such as water, oil and so on Indirect conduction heating, the air does not carry away the heat. the heat are used to heat materials. Only through the device body heat loss to the environment. heat insulation layer Wedge-shaped blades with self-cleaning heat transfer surfaces.Wedge-shaped surface material particles and scrubbing effect relative movement, to wash away the wedge surface material attachments. so in operation have maintained a clean heat transfer surfaces. Blade dryer for the W-type shell, the shell of the general attachments for 2-4 hollow stirring shaft. Shell with a sealed cover with the cover to prevent dust leakage and collection of materials, solvent vapor materials. Set out and exit pull a block, to ensure a high degree of material level, so that heat transfer surface is covered with fully materials Heat medium through the rotary joint, passing through the shell jacket and the hollow stirring shaft, hollow shaft stirring according to the type ot thermal media have different internal structures to ensure the best heat transfer.

Model	KJG-2.7	KJG-20	KJG-30	KJG-50	KJG-60	KJG-70	KJG-80	KJG-90	KJG-100
Heat transfer area/ m²	2.7	20	30	50	60	70	80	90	100
Effective volume/m³	0.06	1.12	1.88	3.75	4.65	5.5	6.4	7.8	8.9
R.P.M revolution	15-30	10-20	10-20	10-20	10-20	5-15	5-15	5-15	5-10
Power/KW	2.2	7.5	11	30	45	55	55	75	95
Width A of dryer body/mm	306	1020	1118	1474	1651	1828	1828	2032	2210
Total width B/mm	736	1400	1474	1854	2134	2286	2286	2438	2668
length C of dryer body/mm	1956	3328	3454	4724	5410	5461	6020	6124	6322
Total D length/mm	2972	5918	6808	7772	8865	9119	9678	9704	9880
Distance between feeding and discharging/mm	1752	3048	3810	4420	4953	5004	5562	5664	5664
Height F in center/mm	380	730	762	1066	1220	1220	1220	1220	1220
Total G height/mm	762	1270	1524	2032	2362	2464	2464	2566	2668
Steam inlet	(2)3/4	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)2	(2)2
Water outlet	(2)3/4	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)2	(2)2
