Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge

Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge thumbnail-1
Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge thumbnail-2
Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge thumbnail-3
Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge thumbnail-4
Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge thumbnail-5
Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge photo-1
Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge photo-2

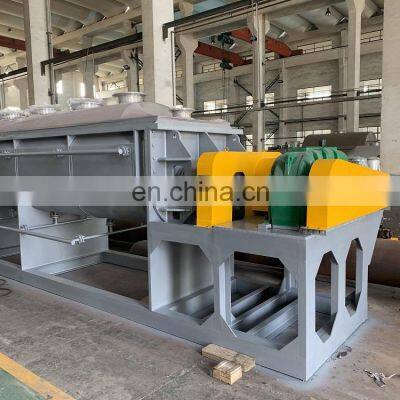

Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge photo-3

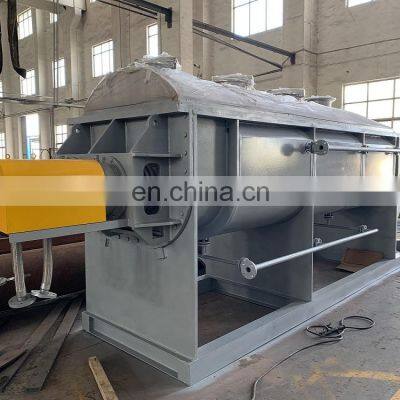

Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge photo-4

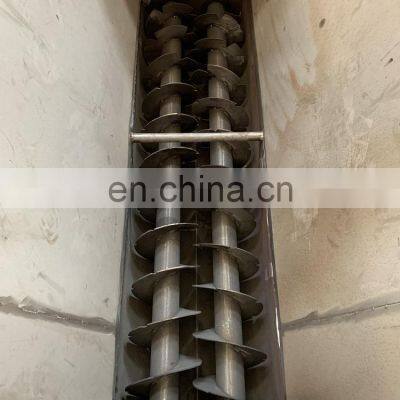

Low Temp Continuous Hollow Blade Paddle Dryer Machine for Chicken Manure Sludge photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Changzhou SenVen Technology Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
KJG Series Hollow Blade Dryer.
Densely lined with wedge-shaped hollow shaft hollow blades, heat medium through the hollow axial flow through blades. Unit effective volume of a very large area of heat transfer, heat medium temperature from -40℃ to 320 ℃, can be water ugh blades. Unit effect such as water, oil and so on Indirect conduction heating, the air does not carry away the heat. the heat are used to heat materials. Only through the device body heat loss to the environment. heat insulation layer Wedge-shaped blades with self-cleaning heat transfer surfaces.Wedge-shaped surface material particles and scrubbing effect relative movement, to wash away the wedge surface material attachments. so in operation have maintained a clean heat transfer surfaces. Blade dryer for the W-type shell, the shell of the general attachments for 2-4 hollow stirring shaft. Shell with a sealed cover with the cover to prevent dust leakage and collection of materials, solvent vapor materials. Set out and exit pull a block, to ensure a high degree of material level, so that heat transfer surface is covered with fully materials Heat medium through the rotary joint, passing through the shell jacket and the hollow stirring shaft, hollow shaft stirring according to the type ot thermal media have different internal structures to ensure the best heat transfer.
Model
KJG-2.7
KJG-20
KJG-30
KJG-50
KJG-60
KJG-70
KJG-80
KJG-90
KJG-100
Heat transfer area/ m²
2.7
20
30
50
60
70
80
90
100
Effective volume/m³
0.06
1.12
1.88
3.75
4.65
5.5
6.4
7.8
8.9
R.P.M revolution
15-30
10-20
10-20
10-20
10-20
5-15
5-15
5-15
5-10
Power/KW
2.2
7.5
11
30
45
55
55
75
95
Width A of dryer body/mm
306
1020
1118
1474
1651
1828
1828
2032
2210
Total width B/mm
736
1400
1474
1854
2134
2286
2286
2438
2668
length C of dryer body/mm
1956
3328
3454
4724
5410
5461
6020
6124
6322
Total D length/mm
2972
5918
6808
7772
8865
9119
9678
9704
9880
Distance between feeding and discharging/mm
1752
3048
3810
4420
4953
5004
5562
5664
5664
Height F in center/mm
380
730
762
1066
1220
1220
1220
1220
1220
Total G height/mm
762
1270
1524
2032
2362
2464
2464
2566
2668
Steam inlet
(2)3/4
(2)11/2
(2)11/2
(2)11/2
(2)11/2
(2)11/2
(2)11/2
(2)2
(2)2
Water outlet
(2)3/4
(2)11/2
(2)11/2
(2)11/2
(2)11/2
(2)11/2
(2)11/2
(2)2
(2)2
