Home > Products > Drying equipment > Borax Vibrating Fluid Bed Dryer
Borax Vibrating Fluid Bed Dryer
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Borax has a wide range of applications in medical and chemical fields. Boric acid is a white powdery crystal or a scaly lustrous crystal on a tri-oblique axis. It has a smooth feel and no odor. Soluble in water, alcohol, glycerin, ethers and essential oils, the aqueous solution is weakly acidic. It is widely used in the glass (optical glass, acid-resistant glass, heat-resistant glass, glass fiber for insulating materials) industry, which can improve the heat-resistant and transparent properties of glass products, improve the mechanical strength, and shorten the melting time. In medicine, it is used as a preservative, a pH regulator, etc. Borax is widely used, and the borax vibrating fluidized bed developed by Griffin can handle borax very well.
Borax vibrating fluidized bed dryer has the following advantages
◎The vibration source is driven by vibration motor, which has stable operation, convenient maintenance, low noise and long service life.
◎The fluidization is well-proportioned, without dead space and blow-through phenomenon, which can obtain uniform drying and cooling of products.
◎Good adjustability and wide application. The thickness of the material layer, the speed of movement in the machine, and the change of the full amplitude can be adjusted steplessly.
◎Small damage to the material surface. It can be used for drying fragile materials, and the work effect will not be affected when the material particles are irregular.
◎Adopt a fully enclosed structure. Effectively prevent the cross between the material and the air, and the working environment is clean.
◎High mechanical efficiency and thermal efficiency, good energy-saving effect, 30-60% energy saving than ordinary drying devices.

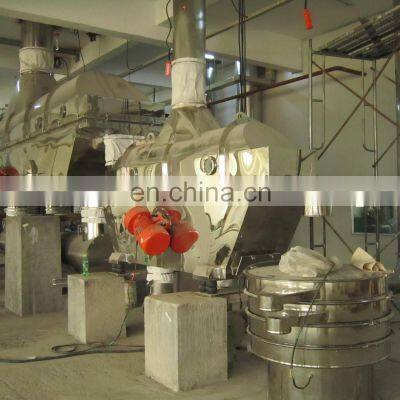

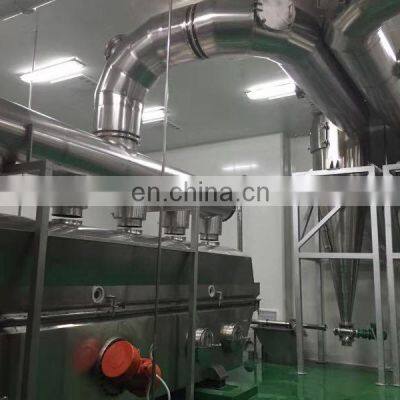

Griffin Borax Vibrating Fluidized Bed Dryer allows the material to enter the machine from the feed inlet. Under the action of the vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. The hot air passes upward through the fluidized bed and exchanges heat with the wet material. , The wet air is discharged by the exhaust 1:3 after dust removal by the cyclone separator. The dry material is discharged from the discharge inlet.
Specification
Model (ZLG) | Fluidized-bed(㎡) | Temperature of inlet air | Temperature of outlet air | Capacity vaporize moisture (kg/h) |
3×0.3 | 0.9 | 70-140(℃) | 40-70(℃) | 20-35 |
4.5×0.3 | 1.35 | 70-140(℃) | 40-70(℃) | 35-50 |
4.5×0.45 | 2.03 | 70-140(℃) | 40-70(℃) | 50-70 |
4.5×0.6 | 2.7 | 70-140(℃) | 40-70(℃) | 70-90 |
6×0.45 | 2.7 | 70-140(℃) | 40-70(℃) | 80-100 |
6×0.6 | 3.6 | 70-140(℃) | 40-70(℃) | 100-130 |
6×0.75 | 4.5 | 70-140(℃) | 40-70(℃) | 120-140 |
6×0.9 | 5.4 | 70-140(℃) | 40-70(℃) | 140-170 |
7.5×0.6 | 4.5 | 70-140(℃) | 40-70(℃) | 130-150 |
7.5×0.75 | 5.6 | 70-140(℃) | 40-70(℃) | 150-180 |
7.5×0.9 | 6.75 | 70-140(℃) | 40-70(℃) | 160-210 |
7.5×1.2 | 9 | 70-140(℃) | 40-70(℃) | 200-260 |
Our Service
If you face any problems in future during the testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference.
1. Pre-service:
24 Hours online service for your consult.
Help choose the right model, and a series of service, person, advise.
1) More than 10 years manufacturer experience in test equipment and with strong research and development team.
2) Accepted of customization for all kinds of special specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
2. After sale service:
1) We deal with your complaints within 24 hours and solution provide within 3 working days.
2) Training how to install the machine, training how to use the machine. We would offer operation video and English operation manual. We can provide video-con.
3) 1-year warranty service and all life maintenance; our engineers could go to your place for better service necessarily.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence in us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Q: Where is your factory?
A: We are located in Changzhou City near Shanghai.
Q: What’s the quality of your machine?
A: Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. You can rest assured with the quality absolutely.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. We will provide one-year warrantee to make sure your machine runs consistently.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
